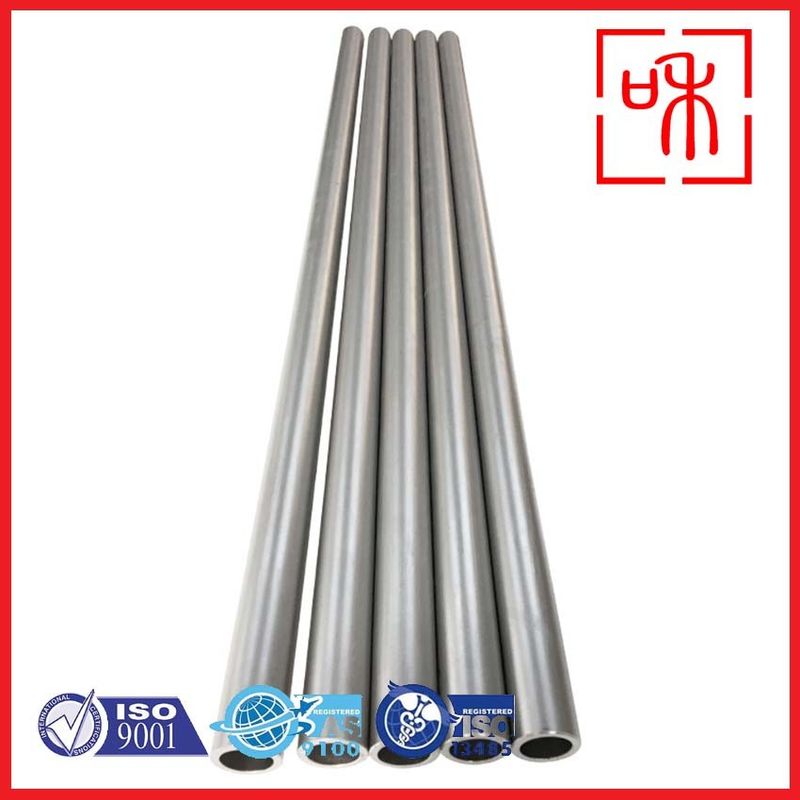

ASTM B861/B338 High Temperature Grade 7 Grade 9 Titanium Tubes Titanium Welded Tubes For Piping Systems

ASTM B861/B338 High Temperature Grade 7 Grade 9 Titanium Tubes Titanium Welded Tubes for Piping Systems

Introduction to Grade 7 Titanium

Grade 7 titanium is a commercially pure titanium alloy that includes a small addition of palladium, typically ranging from 0.12% to 0.25%. This enhancement significantly improves the alloy's corrosion resistance, making it highly suitable for demanding applications across various industries.

Key Characteristics:

1. Corrosion Resistance:

   • The addition of palladium enhances Grade 7's resistance to corrosion, particularly in harsh environments such as seawater and chemical processing. This property makes it ideal for applications in marine, chemical, and oil and gas industries.

2. Mechanical Properties:

   • Grade 7 titanium strikes an excellent balance between strength and ductility. It maintains good tensile strength while allowing for sufficient flexibility, which is crucial for applications that require both durability and the ability to withstand deformation.

3. Weldability:

   • This alloy is known for its good weldability, allowing for various welding techniques without compromising its integrity. This feature is especially valuable in manufacturing processes that involve complex geometries or require repairs.

4. Longevity:

   • The unique characteristics of Grade 7 titanium enable it to outperform many other materials in terms of longevity, making it a preferred choice for components that must endure extreme conditions over extended periods.

Properties of Grade 7 Titanium Tubes

Grade 7 titanium tubes exhibit several key properties that make them ideal for a range of applications. Firstly, their exceptional corrosion resistance is a standout feature; they can withstand exposure to aggressive media such as seawater, acids, and alkalis without significant degradation. This property is particularly important in marine and chemical processing applications, where failure can lead to costly downtime and repairs. Additionally, Grade 7 titanium has a low density, providing a lightweight solution without sacrificing strength, which is beneficial in applications where weight savings are essential.

In terms of mechanical properties, Grade 7 titanium boasts good tensile strength and fatigue resistance. It can endure significant stress over time without succumbing to fatigue, making it reliable in dynamic applications. Furthermore, its excellent weldability allows for easy fabrication and joining with other materials, providing versatility in manufacturing processes. These attributes ensure that Grade 7 titanium tubes not only perform well but also maintain structural integrity over extended periods.

Different Grades of Titanium

1. Commercially Pure Titanium (Grades 1-4)

• Grade 1:

  • Highest ductility and corrosion resistance.
  • Low strength (about 240 MPa).
  • Ideal for applications in chemical processing and marine environments.

• Grade 2:

  • Most widely used commercially pure titanium.
  • Good balance of strength (approximately 350 MPa), ductility, and corrosion resistance.
  • Commonly used in aerospace and industrial applications.

• Grade 3:

  • Higher strength than Grade 2 (about 450 MPa).
  • Slightly lower ductility.
  • Suitable for applications that require higher strength, such as pressure vessels.

• Grade 4:

  • Highest strength among commercially pure grades (around 550 MPa).
  • Good corrosion resistance.
  • Often used in military and aerospace applications where strength is critical.

2. Titanium Alloys (Grades 5, 7, 9, 12, 23)

• Grade 5 (Ti 6-4):

  • Most commonly used titanium alloy.
  • Contains 90% titanium, 6% aluminum, and 4% vanadium.
  • High strength (up to 900 MPa), excellent weldability, and good corrosion resistance.
  • Widely used in aerospace, automotive, and biomedical applications.

• Grade 7:

  • Contains palladium for enhanced corrosion resistance.
  • Excellent for chemical processing and marine applications due to its resistance to aggressive environments.

• Grade 9:

  • Contains aluminum and iron.
  • Offers a good balance of strength and ductility.
  • Used in applications such as bicycle frames and automotive parts.

• Grade 12:

  • Contains nickel and molybdenum, enhancing corrosion resistance.
  • Good for chemical processing applications.

• Grade 23 (Ti 6-4 ELI):

  • Extra-low interstitial (ELI) version of Grade 5.
  • Offers improved ductility and fracture toughness.
  • Ideal for medical implants and applications requiring high biocompatibility.

Applications of Grade 7 Titanium Tubes

The applications of Grade 7 titanium tubes span multiple industries, owing to their unique combination of properties. One of the primary sectors utilizing these tubes is the marine industry. In this context, Grade 7 titanium is often used in seawater piping systems, heat exchangers, and condensers, where resistance to corrosion is paramount. The ability of these tubes to withstand harsh marine environments without significant wear extends their lifespan and reduces maintenance costs, making them an economical choice for shipbuilders and maritime operators.

Another significant application of Grade 7 titanium tubes is in the chemical processing sector. Here, they are used in heat exchangers, reactors, and piping systems that handle corrosive substances. The enhanced corrosion resistance provided by the palladium content ensures that the tubes perform reliably, even when exposed to aggressive chemicals at high temperatures. As a result, manufacturers in this sector benefit from increased operational efficiency and reduced risks associated with material failure.

Advantages of Using Grade 7 Titanium Tubes

There are several advantages to using Grade 7 titanium tubes over traditional materials such as stainless steel or copper. One of the most compelling benefits is their superior corrosion resistance, which translates to longer service life and lower maintenance costs. In environments where corrosion is a significant concern, the initial investment in Grade 7 titanium can yield substantial long-term savings. Additionally, the lightweight nature of titanium allows for easier handling and installation, which can be particularly advantageous in large-scale projects where every kilogram counts.

Moreover, Grade 7 titanium exhibits excellent thermal conductivity, which is beneficial in applications requiring efficient heat transfer. While it may not conduct heat as effectively as copper, its resistance to fouling and scaling can lead to better overall thermal performance in heat exchangers. This characteristic ensures that systems remain efficient over time, reducing energy consumption and contributing to sustainability efforts in industrial operations.

Grade 7 titanium tubes offer numerous advantages, particularly in corrosive environments. Their superior corrosion resistance leads to a longer service life and lower maintenance costs compared to materials like stainless steel or copper. The lightweight nature of titanium facilitates easier handling and installation, especially in large projects. Additionally, while Grade 7 has good thermal conductivity, its resistance to fouling enhances efficiency in heat exchangers, promoting better overall performance and sustainability in industrial applications. This combination of durability and efficiency makes Grade 7 an excellent choice for various uses.

Manufacturing Process of Grade 7 Titanium Tubes

The manufacturing process of Grade 7 titanium tubes involves several critical steps to ensure quality and performance. Initially, titanium billets are produced through melting techniques like vacuum arc remelting (VAR) or electron beam melting (EBM). These processes help achieve a high level of purity and a consistent microstructure, which are essential for optimal mechanical properties. Once the billets are formed, they undergo hot working processes, including rotary piercing and elongation, to create seamless tubes.

After forming, the tubes undergo heat treatment to enhance their mechanical properties. This step is crucial for optimizing strength and ductility, ensuring that the final product meets the rigorous demands of its intended applications. Additionally, thorough testing, including hydrostatic tests and non-destructive testing, is performed to guarantee the integrity and performance of the tubes before they are delivered to customers. This meticulous manufacturing process underscores the reliability of Grade 7 titanium tubes in critical applications.

The manufacturing process of Grade 7 titanium tubes is meticulous and involves several key steps to ensure high quality and performance:

1. Billet Production

• Melting Techniques: Titanium billets are produced using methods such as vacuum arc remelting (VAR) or electron beam melting (EBM). These techniques help achieve high purity levels and a consistent microstructure, which are essential for optimal mechanical properties.

2. Hot Working

• Seamless Tube Formation: The billets undergo hot working processes, including rotary piercing and elongation, to form seamless tubes. This process enhances the mechanical properties and ensures uniform thickness.

3. Heat Treatment

• The formed tubes undergo heat treatment to improve their strength and ductility. This step is critical for meeting the rigorous demands of various applications and ensuring that the final product performs reliably under stress.

4. Testing and Quality Assurance

• Thorough testing is performed to ensure the integrity and performance of the tubes. This includes:
  • Hydrostatic Tests: To check for leaks and structural integrity.
  • Non-Destructive Testing (NDT): Techniques such as ultrasonic testing or eddy current testing are used to detect any internal defects without damaging the tubes.

Future Trends and Innovations

As industries continue to seek more efficient and sustainable materials, the demand for Grade 7 titanium tubes is expected to grow. Innovations in manufacturing techniques and alloy development may lead to improved properties and lower production costs, making these tubes more accessible to a broader range of applications. Research into enhancing the specific properties of Grade 7 titanium, such as increasing its strength-to-weight ratio or improving its weldability, could open new avenues for its use in advanced engineering projects.

Furthermore, the increasing focus on sustainability is likely to drive interest in materials like Grade 7 titanium, which offers long-lasting performance and reduced environmental impact over their lifecycle. Industries are becoming more aware of the importance of choosing materials that contribute to energy efficiency and minimize maintenance needs. As a result, Grade 7 titanium tubes could play a pivotal role in future innovations across various sectors, from aerospace to renewable energy.

Conclusion

In summary, Grade 7 titanium tubes present an impressive blend of properties, making them ideal for a variety of applications. Their outstanding corrosion resistance, lightweight characteristics, and strength establish them as a superior alternative to traditional materials in demanding environments. As industries evolve, the adoption of Grade 7 titanium is likely to grow, fueled by continuous innovations and a focus on sustainable solutions. Investing in these tubes not only enhances operational efficiency but also leads to long-term savings and supports environmental stewardship. This makes Grade 7 titanium a forward-thinking choice for modern applications.
