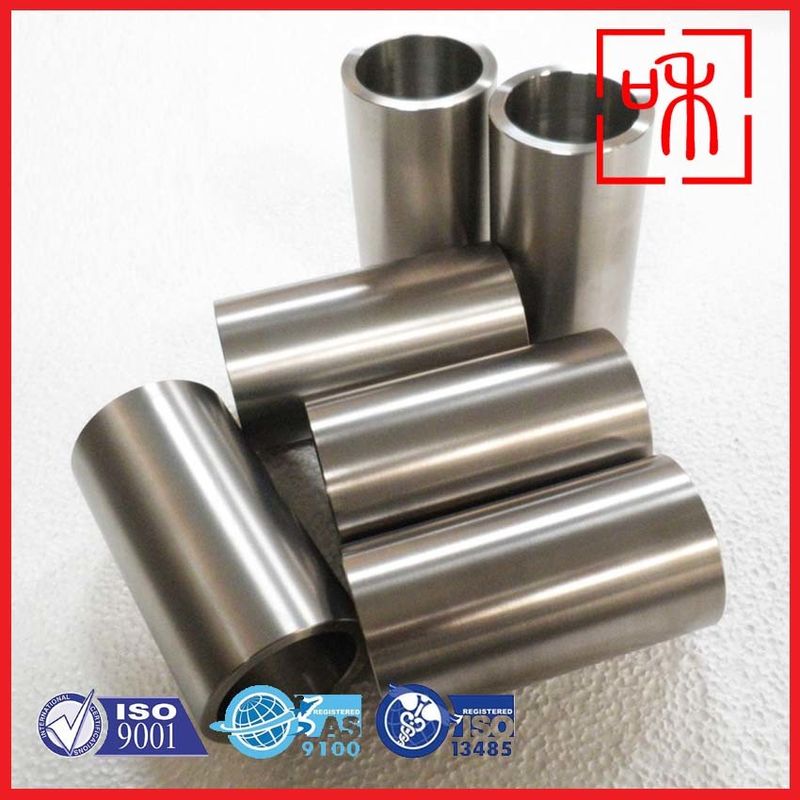

Gr1 Gr2 Gr2 Gr5 Maximize Thermal Management Ti Welded Titanium Tube With ASTM B338 Titanium Tube For Pipine Systems

Gr1 Gr2 Gr2 Gr5 Maximize Thermal Management Ti Welded Titanium Tube With ASTM B338 Titanium Tube For Pipine Systems

Introduction to ASTM B338 Titanium Welded Pipes

ASTM B338 is a standard specification that covers seamless and welded titanium tubes and pipes for various applications, particularly in the aerospace, chemical processing, and marine industries. Here’s a concise introduction to ASTM B338 titanium tubes:

Overview of ASTM B338

1. Scope:

   • ASTM B338 specifies requirements for titanium tubes in various grades, including commercially pure titanium and titanium alloys. The tubes can be either seamless or welded, and they are designed for use in high-performance environments.

2. Material Grades:

   • Common grades include CP (Commercially Pure) titanium grades (Grade 1 to Grade 4) and alloyed grades (e.g., Grade 5, Ti-6Al-4V). Each grade offers different properties, such as strength, ductility, and corrosion resistance.

3. Applications:

   • The specification is primarily used in industries that require high strength-to-weight ratios and excellent corrosion resistance, such as aerospace, chemical processing, marine engineering, and medical applications.

4. Manufacturing Processes:

   • The tubes are produced through processes like hot working, cold working, and heat treatment to meet specific mechanical properties and dimensions. They may also undergo inspections for quality assurance.

5. Standards and Testing:

   • ASTM B338 outlines requirements for testing mechanical properties, corrosion resistance, and dimensions, ensuring that the tubes meet industry standards for performance and safety.

6. Specifications:

   • The standard provides detailed requirements for tube dimensions, wall thicknesses, tolerances, and surface finishes, ensuring that they meet the rigorous demands of their intended applications.

Benefits of ASTM B338 Titanium Tubes

• Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including seawater and acidic conditions.
• Lightweight: Lower density compared to steel, making them suitable for applications where weight savings are critical.
• Strength: High tensile strength and fatigue resistance, ideal for demanding applications.
• Biocompatibility: Suitable for medical applications, as they do not react adversely with bodily tissues.

Overall, ASTM B338 titanium tubes are vital components in various high-performance applications, offering a unique combination of strength, durability, and resistance to harsh environments.

Key Properties of ASTM B338 Titanium Tubes

The ASTM B338 specification highlights several critical properties of titanium tubes, which contribute to their performance across various applications. Here are the key properties:

1. Mechanical Properties

• Tensile Strength: ASTM B338 titanium tubes exhibit high tensile strength, enabling them to withstand significant stress without deforming. For example, commercially pure titanium (Grades 1 and 2) typically has a tensile strength ranging from 240 to 450 MPa, while titanium alloys like Ti-6Al-4V can exceed 900 MPa.
• Yield Strength: Yield strength indicates the maximum stress that can be applied before permanent deformation occurs. Commercially pure titanium has yield strengths around 170 to 350 MPa, whereas titanium alloys like Ti-6Al-4V have much higher yield strengths, enhancing their suitability for load-bearing applications.
• Elongation: This property reflects the ductility of the material, indicating how much it can stretch before breaking. ASTM B338 tubes generally demonstrate good elongation (around 20% or higher), which is crucial for applications requiring forming and shaping.

2. Corrosion Resistance

• Exceptional Resistance: Commercially pure titanium is highly resistant to corrosion, particularly in aggressive environments such as seawater, acidic conditions, and oxidizing media. This makes it ideal for marine and chemical processing applications.

3. Lightweight Nature

• Density: Titanium is about 45% lighter than steel, which significantly benefits applications where weight reduction is essential. This lightweight characteristic allows for the design of more efficient structures without sacrificing strength, particularly in aerospace and high-performance automotive applications.

4. Fatigue Resistance

• Durability Over Time: Titanium alloys exhibit excellent fatigue resistance, making them suitable for cyclic loading applications, such as in aerospace components where repeated stress occurs over time.

5. Thermal Properties

• High-Temperature Performance: Titanium can maintain its strength and integrity at elevated temperatures, making it suitable for applications like exhaust systems in automotive and aerospace sectors.

6. Biocompatibility

• Medical Applications: The biocompatible nature of commercially pure titanium makes it an excellent choice for medical implants and devices, minimizing the risk of adverse reactions in the human body.

Manufacturing Process of ASTM B338 Titanium Pipes

The manufacturing process for ASTM B338 titanium welded pipes consists of several crucial steps to ensure high quality and compliance with industry standards. It begins with the production of titanium billets, often through vacuum arc remelting, which ensures high purity levels.

Once the billets are prepared, they undergo hot extrusion and cold working to create seamless pipe forms. For welded pipes, titanium strips are cut to size, thoroughly cleaned, and expertly welded to form a continuous pipe.

Welding is a vital part of the process, directly impacting the pipes' integrity. Techniques like gas tungsten arc welding (GTAW) are commonly used to achieve strong, defect-free welds that meet the stringent ASTM B338 requirements. After welding, the pipes undergo heat treatment to relieve internal stresses and enhance mechanical properties.

Finally, rigorous quality control measures, including non-destructive testing and hydrostatic testing, are implemented to ensure that the finished products meet the necessary safety and performance specifications. This meticulous manufacturing process ultimately results in high-quality ASTM B338 titanium welded pipes suitable for demanding applications.

Advantages of Using ASTM B338 Titanium Welded Pipes

Using ASTM B338 titanium welded pipes in heat exchangers presents several notable advantages over traditional materials like carbon steel and stainless steel. First and foremost, their superior corrosion resistance significantly reduces maintenance costs and downtime, especially in harsh environments with aggressive chemicals or high salinity. This leads to longer service lives and decreased replacement frequencies, crucial for industries such as oil and gas where reliability is essential.

Additionally, the lightweight nature of titanium allows for reduced support structure requirements and simpler installation, facilitating more efficient designs in heat exchanger systems. This weight savings can enhance overall system performance. Moreover, titanium's excellent fatigue resistance ensures longevity even under cyclic loading, further contributing to lower operational costs over time. Overall, the advantages of using ASTM B338 titanium welded pipes make them a compelling choice for enhancing efficiency and reliability in heat exchanger applications.

Applications of ASTM B338 Titanium Welded Pipes

ASTM B338 titanium welded pipes find applications across various industries due to their unique properties and benefits. In the petrochemical sector, these pipes are often utilized in heat exchangers that process corrosive chemicals, where traditional materials may fail prematurely. Similarly, in marine applications, titanium pipes are employed in heat exchangers for ship engines and cooling systems, where exposure to seawater necessitates materials that can withstand harsh conditions.

In addition to chemical processing and marine industries, ASTM B338 titanium pipes are also widely used in the aerospace sector. Aircraft systems often require lightweight and durable materials capable of performing under extreme conditions. The use of titanium in heat exchangers within aircraft can lead to significant weight savings, enhancing fuel efficiency and overall performance. Furthermore, emerging applications in the medical field are gaining traction, where titanium’s biocompatibility makes it suitable for heat exchangers involved in medical devices and processes.

Future Trends in Titanium Heat Exchanger Technology

As industries continue to seek more efficient and sustainable solutions, the demand for ASTM B338 titanium welded pipes is expected to grow. Innovations in manufacturing techniques, such as additive manufacturing and advanced welding methods, may further enhance the capabilities of titanium pipes, allowing for more complex geometries and improved material properties. These advancements can lead to the development of more efficient heat exchangers that maximize thermal performance while minimizing energy consumption.

Additionally, the focus on sustainability and environmental responsibility is driving interest in titanium as a material of choice. Titanium’s inherent recyclability and long lifespan contribute to reduced lifecycle impacts, making it an attractive option for environmentally conscious industries. As regulations become more stringent regarding emissions and waste management, the role of titanium in developing green technologies, including energy-efficient heat exchangers, will likely expand.

Conclusion

In conclusion, ASTM B338 titanium welded pipes represent a superior solution for heat exchanger applications, offering a combination of exceptional properties, manufacturing precision, and long-term performance. Their corrosion resistance, lightweight nature, and mechanical strength position them favorably against traditional materials. As industries evolve and emphasize sustainability, the demand for titanium pipes is poised to increase, driven by technological advancements and a commitment to efficiency. By investing in ASTM B338 titanium welded pipes, companies can enhance their operational capabilities while ensuring reliability and performance in critical heat exchanger systems.
