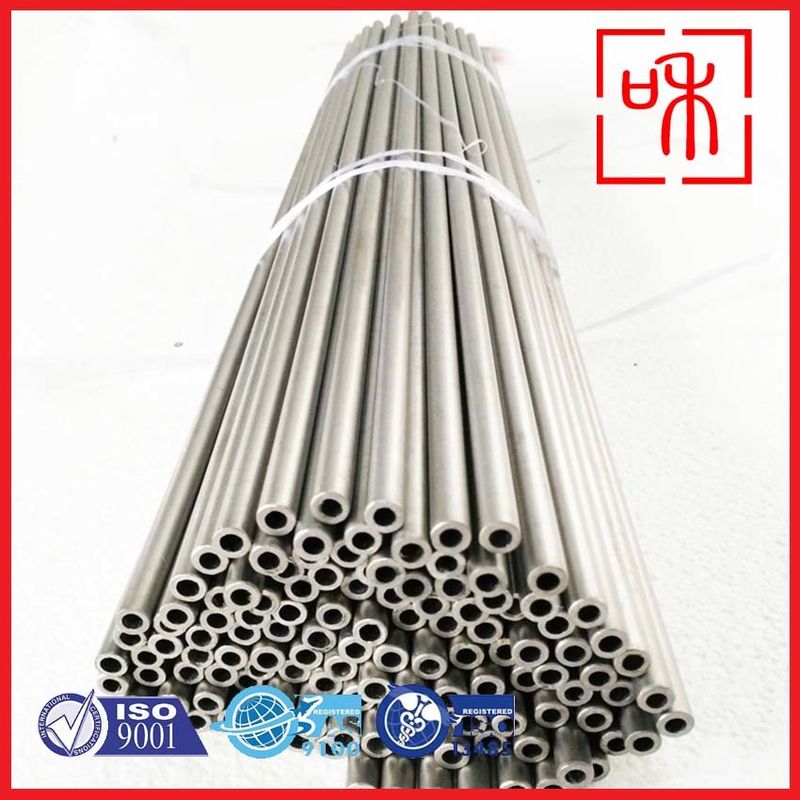

ASTM B338 Ti Grade 9 Titanium Tubing Pure Titanium Seamless Tube For Oil And Gas Industry

Grade 9 Titanium Tubing ASTM B338 Pure Titanium Tube Titanium Seamless Tube for Oil and Gas Industry

Introduction to ASTM B338 Titanium Tube:

ASTM B338 is a standard specification that outlines the requirements for seamless and welded titanium tubes used in various industrial applications. This specification is crucial for ensuring that titanium tubes meet specific mechanical properties, dimensions, and chemical compositions necessary for demanding environments. The unique characteristics of titanium, such as its excellent corrosion resistance and high strength-to-weight ratio, make it an ideal choice for industries like aerospace, chemical processing, and marine applications. By adhering to ASTM B338, manufacturers can guarantee that their titanium tubes perform reliably under challenging conditions.

ASTM B338 is a standard specification that covers seamless and welded titanium tubes and pipes for various applications, particularly in the aerospace, chemical processing, and marine industries. Here’s a concise introduction to ASTM B338 titanium tubes:

Overview of ASTM B338

1. Scope:

   • ASTM B338 specifies requirements for titanium tubes in various grades, including commercially pure titanium and titanium alloys. The tubes can be either seamless or welded, and they are designed for use in high-performance environments.

2. Material Grades:

   • Common grades include CP (Commercially Pure) titanium grades (Grade 1 to Grade 4) and alloyed grades (e.g., Grade 5, Ti-6Al-4V). Each grade offers different properties, such as strength, ductility, and corrosion resistance.

3. Applications:

   • The specification is primarily used in industries that require high strength-to-weight ratios and excellent corrosion resistance, such as aerospace, chemical processing, marine engineering, and medical applications.

4. Manufacturing Processes:

   • The tubes are produced through processes like hot working, cold working, and heat treatment to meet specific mechanical properties and dimensions. They may also undergo inspections for quality assurance.

5. Standards and Testing:

   • ASTM B338 outlines requirements for testing mechanical properties, corrosion resistance, and dimensions, ensuring that the tubes meet industry standards for performance and safety.

6. Specifications:

   • The standard provides detailed requirements for tube dimensions, wall thicknesses, tolerances, and surface finishes, ensuring that they meet the rigorous demands of their intended applications.

Benefits of ASTM B338 Titanium Tubes

• Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including seawater and acidic conditions.
• Lightweight: Lower density compared to steel, making them suitable for applications where weight savings are critical.
• Strength: High tensile strength and fatigue resistance, ideal for demanding applications.
• Biocompatibility: Suitable for medical applications, as they do not react adversely with bodily tissues.

Key Properties of ASTM B338 Titanium Tubes:

The ASTM B338 specification highlights several critical properties of titanium tubes, which contribute to their performance across various applications. Here are the key properties:

1. Mechanical Properties

• Tensile Strength: ASTM B338 titanium tubes exhibit high tensile strength, enabling them to withstand significant stress without deforming. For example, commercially pure titanium (Grades 1 and 2) typically has a tensile strength ranging from 240 to 450 MPa, while titanium alloys like Ti-6Al-4V can exceed 900 MPa.
• Yield Strength: Yield strength indicates the maximum stress that can be applied before permanent deformation occurs. Commercially pure titanium has yield strengths around 170 to 350 MPa, whereas titanium alloys like Ti-6Al-4V have much higher yield strengths, enhancing their suitability for load-bearing applications.
• Elongation: This property reflects the ductility of the material, indicating how much it can stretch before breaking. ASTM B338 tubes generally demonstrate good elongation (around 20% or higher), which is crucial for applications requiring forming and shaping.

2. Corrosion Resistance

• Exceptional Resistance: Commercially pure titanium is highly resistant to corrosion, particularly in aggressive environments such as seawater, acidic conditions, and oxidizing media. This makes it ideal for marine and chemical processing applications.

3. Lightweight Nature

• Density: Titanium is about 45% lighter than steel, which significantly benefits applications where weight reduction is essential. This lightweight characteristic allows for the design of more efficient structures without sacrificing strength, particularly in aerospace and high-performance automotive applications.

4. Fatigue Resistance

• Durability Over Time: Titanium alloys exhibit excellent fatigue resistance, making them suitable for cyclic loading applications, such as in aerospace components where repeated stress occurs over time.

5. Thermal Properties

• High-Temperature Performance: Titanium can maintain its strength and integrity at elevated temperatures, making it suitable for applications like exhaust systems in automotive and aerospace sectors.

6. Biocompatibility

• Medical Applications: The biocompatible nature of commercially pure titanium makes it an excellent choice for medical implants and devices, minimizing the risk of adverse reactions in the human body.

Summary

The combination of high tensile and yield strength, excellent corrosion resistance, lightweight nature, and durability makes ASTM B338 titanium tubes highly versatile and suitable for a wide range of demanding applications, from aerospace to medical devices. These properties ensure efficient design and performance, particularly in environments where traditional materials may fail.

Manufacturing Processes for ASTM B338 Titanium Tubes:

The production of ASTM B338 titanium tubes involves sophisticated manufacturing techniques to ensure high quality and precision. The process begins with the selection of high-grade titanium billets, which are then heated and pierced to form a hollow tube. This initial step is followed by elongation processes, such as rotary piercing or extrusion, which create seamless tubes with uniform wall thickness. The seamless design eliminates potential weaknesses associated with welded joints, enhancing overall durability and reliability.

After forming, the titanium tubes undergo various heat treatment processes to optimize their mechanical properties. These treatments can include solution annealing and aging, which improve the strength and toughness of the material. Rigorous quality control measures, including non-destructive testing (NDT), are implemented to detect any flaws or defects in the tubes. This attention to detail during the manufacturing process ensures that ASTM B338 titanium tubes meet stringent industry standards.

Applications of ASTM B338 Titanium Tubes

Grade 9 titanium, also known as Ti-3Al-2.5V, is an alloy composed of 3% aluminum and 2.5% vanadium. It is renowned for its excellent combination of strength, lightweight properties, and corrosion resistance. Here are some key applications of Grade 9 titanium tubes:

1. Aerospace

• Structural Components: Used in aircraft components like frames and fasteners where weight savings and strength are crucial.
• Fuel Systems: Employed in fuel lines and tanks due to their resistance to corrosion and high temperatures.

2. Marine Engineering

• Seawater Applications: Ideal for components exposed to seawater, such as heat exchangers and piping systems on ships and submarines, due to their excellent corrosion resistance.

3. Chemical Processing

• Piping and Heat Exchangers: Used in the transport of corrosive chemicals, where durability and resistance to corrosion are required.

4. Medical Devices

• Surgical Instruments and Implants: Suitable for medical applications due to their biocompatibility and strength, making them ideal for surgical tools and orthopedic implants.

5. Power Generation

• Nuclear Power Plants: Utilized for tubing in reactors and cooling systems due to their resistance to radiation and corrosion.

6. Sports Equipment

• High-Performance Bicycles: Used in bicycle frames and components, leveraging their lightweight and strong properties for enhanced performance.

7. Automotive

• Performance Parts: Employed in high-performance vehicles for components such as exhaust systems and chassis, where weight reduction is a priority without compromising strength.

8. Oil and Gas

• Downhole Tubing: Used in oil drilling and production environments, particularly for equipment that requires resistance to corrosive fluids and high pressures.

Benefits of Grade 9 Titanium Tubes

• Strength-to-Weight Ratio: Offers a superior strength-to-weight ratio, making it ideal for applications where weight savings are critical.
• Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, extending the lifespan of components.
• Versatility: Suitable for various applications across multiple industries due to its favorable mechanical properties.

In summary, Grade 9 titanium tubes are highly valued in industries that require durable, lightweight, and corrosion-resistant materials, making them a preferred choice in demanding applications.

Advantages of Using ASTM B338 Titanium Tubes

The advantages of using ASTM B338 titanium tubes extend beyond their inherent material properties. One of the most compelling benefits is the reduction of maintenance and operational costs associated with their use. Due to titanium’s resistance to corrosion and wear, systems that incorporate these tubes tend to have lower failure rates and longer lifespans. This durability translates to less downtime and fewer repairs, ultimately resulting in significant cost savings over time.

Another advantage is the environmental impact of using titanium tubes. As industries increasingly prioritize sustainability, titanium’s recyclability plays a crucial role in its appeal. When titanium components reach the end of their life cycle, they can be recycled and repurposed, reducing waste and conserving resources. Moreover, the extended service life of ASTM B338 titanium tubes means fewer raw materials are needed for replacements, further contributing to more sustainable industrial practices.

Furthermore, the versatility of ASTM B338 titanium tubes allows for customization to meet specific application requirements. Manufacturers can tailor the dimensions, wall thickness, and alloy compositions of the tubes to suit the needs of various projects. This flexibility enables engineers to design systems that optimize performance while adhering to regulatory standards. As industries continue to evolve, the ability to customize materials will become increasingly important in meeting specific operational challenges.

Conclusion

In conclusion, ASTM B338 titanium tubes are essential components in various industrial applications, distinguished by their unique properties and significant advantages. Their high strength, lightweight nature, and exceptional corrosion resistance make them particularly suitable for challenging environments found in aerospace, chemical processing, and marine industries.

The advanced manufacturing processes and rigorous quality controls ensure that these tubes consistently meet the highest performance and reliability standards. As industries increasingly seek innovative solutions, ASTM B338 titanium tubes will continue to play a crucial role, providing the durability and efficiency necessary to meet modern operational demands.

By embracing these advanced materials, industries can enhance productivity and contribute to a more sustainable future in engineering and manufacturing, paving the way for ongoing advancements in technology and performance.
