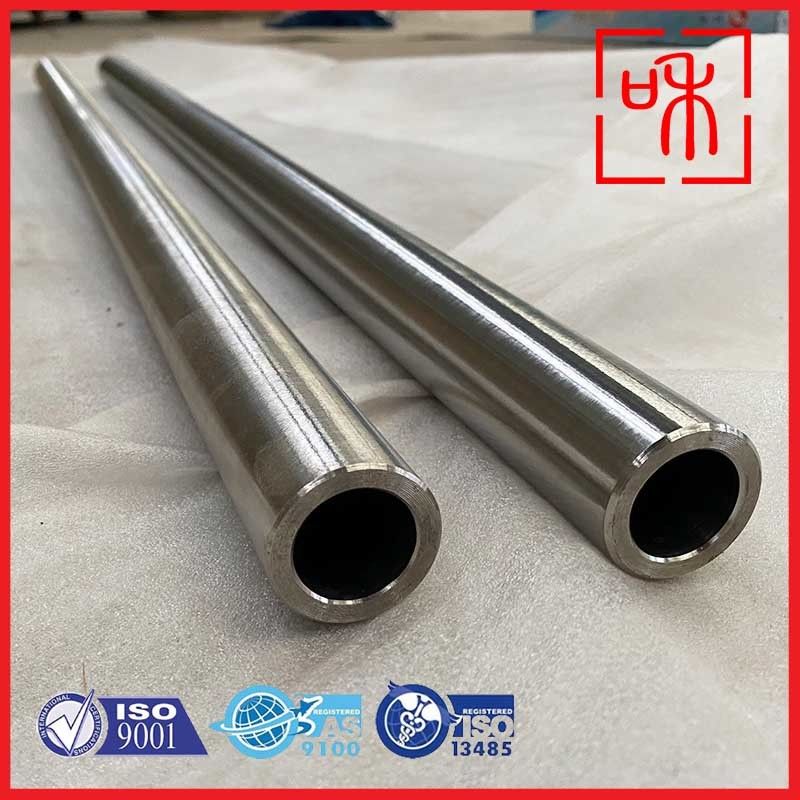

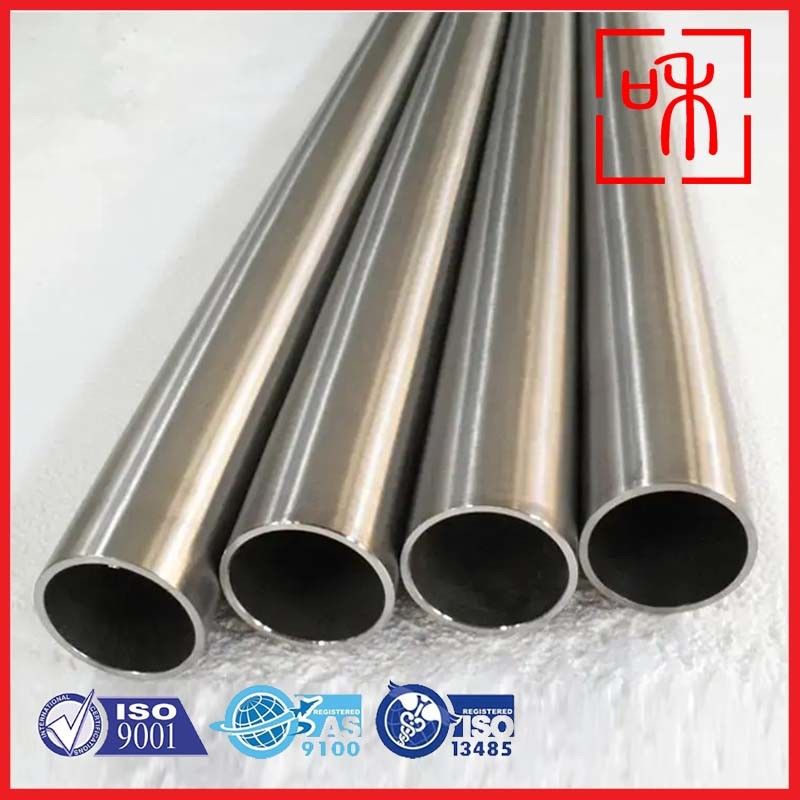

Temperature Applications ASTM B338 Grade 9 Titanium Tube With Forge And Press Or Machanical Processing

Introduction to ASTM B338 Titanium Tube

ASTM B338 is a standard specification that outlines the requirements for seamless and welded titanium tubes used in various industrial applications. This specification is crucial for ensuring that titanium tubes meet specific mechanical properties, dimensions, and chemical compositions necessary for demanding environments. The unique characteristics of titanium, such as its excellent corrosion resistance and high strength-to-weight ratio, make it an ideal choice for industries like aerospace, chemical processing, and marine applications. By adhering to ASTM B338, manufacturers can guarantee that their titanium tubes perform reliably under challenging conditions.

Key Properties of ASTM B338 Titanium Tubes

The ASTM B338 specification defines several critical properties of titanium tubes, including tensile strength, yield strength, and elongation. Typically, these tubes are manufactured from commercially pure titanium or titanium alloys, which contribute to their superior performance. For instance, commercially pure titanium (Grade 1, Grade 2, etc.) offers exceptional corrosion resistance, making it suitable for aggressive environments. Additionally, titanium alloys, such as Ti-6Al-4V, provide enhanced strength and fatigue resistance, further broadening the scope of applications for ASTM B338 titanium tubes.

Another significant property of ASTM B338 titanium tubes is their lightweight nature. Titanium is approximately 45% lighter than steel, yet it maintains similar or even superior strength. This characteristic is particularly beneficial in applications where weight reduction is critical, such as aerospace components and high-performance automotive parts. The combination of lightweight and high strength ensures that structures can be designed more efficiently, leading to better fuel efficiency and overall system performance.

Manufacturing Processes for ASTM B338 Titanium Tubes

The production of ASTM B338 titanium tubes involves sophisticated manufacturing techniques to ensure high quality and precision. The process begins with the selection of high-grade titanium billets, which are then heated and pierced to form a hollow tube. This initial step is followed by elongation processes, such as rotary piercing or extrusion, which create seamless tubes with uniform wall thickness. The seamless design eliminates potential weaknesses associated with welded joints, enhancing overall durability and reliability.

After forming, the titanium tubes undergo various heat treatment processes to optimize their mechanical properties. These treatments can include solution annealing and aging, which improve the strength and toughness of the material. Rigorous quality control measures, including non-destructive testing (NDT), are implemented to detect any flaws or defects in the tubes. This attention to detail during the manufacturing process ensures that ASTM B338 titanium tubes meet stringent industry standards.

Applications of ASTM B338 Titanium Tubes

ASTM B338 titanium tubes find extensive applications across multiple industries due to their unique properties. In the aerospace sector, these tubes are used in engine components, heat exchangers, and structural elements, where weight savings and corrosion resistance are paramount. The ability of titanium to withstand extreme temperatures and pressures makes it a preferred material in these high-performance environments. Moreover, the aerospace industry highly values titanium’s non-reactivity, which is essential for components that come into contact with various fluids.

In the chemical processing industry, ASTM B338 titanium tubes are utilized in heat exchangers, reactors, and piping systems. Their exceptional resistance to corrosive chemicals, such as acids and chlorides, minimizes maintenance costs and increases service life. This application is particularly relevant in environments where traditional materials would fail, thus ensuring safety and reliability in operations. The use of titanium in these settings not only enhances performance but also contributes to sustainable practices by reducing the need for frequent replacements.

Marine applications also benefit significantly from ASTM B338 titanium tubes. Given the harsh conditions faced in marine environments—such as saltwater exposure and high pressure—titanium’s corrosion resistance proves invaluable. These tubes are often employed in seawater cooling systems, desalination plants, and offshore oil and gas platforms. Utilizing titanium in these applications helps mitigate issues related to corrosion and fouling, leading to more efficient and longer-lasting systems.

Advantages of Using ASTM B338 Titanium Tubes

The advantages of using ASTM B338 titanium tubes extend beyond their inherent material properties. One of the most compelling benefits is the reduction of maintenance and operational costs associated with their use. Due to titanium’s resistance to corrosion and wear, systems that incorporate these tubes tend to have lower failure rates and longer lifespans. This durability translates to less downtime and fewer repairs, ultimately resulting in significant cost savings over time.

Another advantage is the environmental impact of using titanium tubes. As industries increasingly prioritize sustainability, titanium’s recyclability plays a crucial role in its appeal. When titanium components reach the end of their life cycle, they can be recycled and repurposed, reducing waste and conserving resources. Moreover, the extended service life of ASTM B338 titanium tubes means fewer raw materials are needed for replacements, further contributing to more sustainable industrial practices.

Furthermore, the versatility of ASTM B338 titanium tubes allows for customization to meet specific application requirements. Manufacturers can tailor the dimensions, wall thickness, and alloy compositions of the tubes to suit the needs of various projects. This flexibility enables engineers to design systems that optimize performance while adhering to regulatory standards. As industries continue to evolve, the ability to customize materials will become increasingly important in meeting specific operational challenges.

Conclusion

In conclusion, ASTM B338 titanium tubes represent a vital component in many industrial applications due to their unique properties and advantages. Their strength, lightweight nature, and exceptional corrosion resistance make them suitable for demanding environments in aerospace, chemical processing, and marine industries. The sophisticated manufacturing processes and stringent quality controls ensure that these tubes meet the highest standards of performance and reliability. As industries continue to seek innovative solutions, ASTM B338 titanium tubes will remain at the forefront, offering durability and efficiency that align with modern operational needs. Embracing these advanced materials will not only enhance productivity but also contribute to a more sustainable future in engineering and manufacturing.
