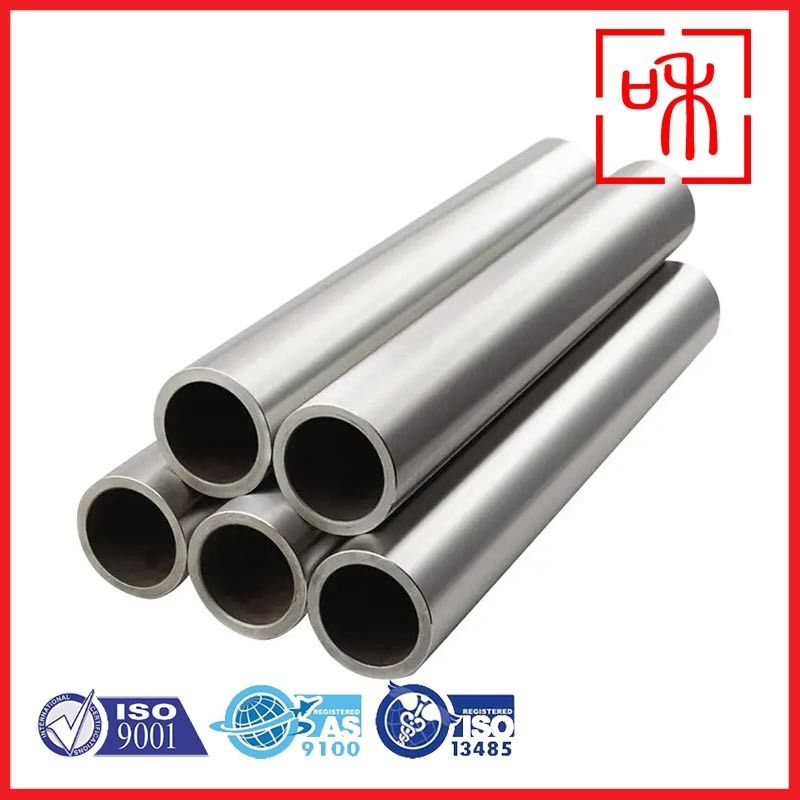

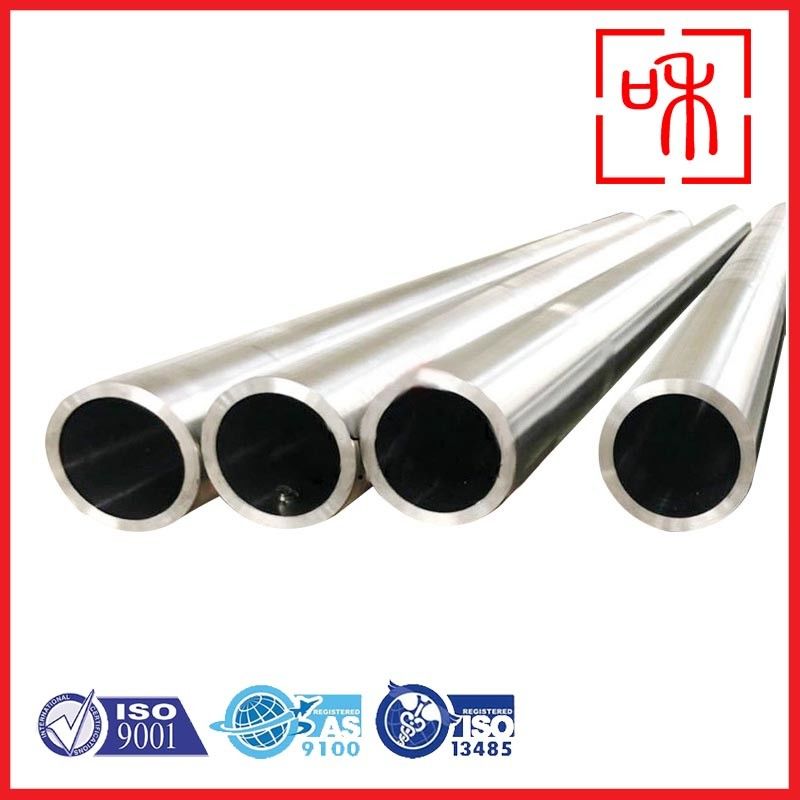

Welding Connection Titanium Tube With 0.5-100mm Inside Diameter

Introduction to Gr1 Titanium

Grade 1 titanium is well-known for its exceptional properties, making it a preferred material in various industrial applications, particularly in heat exchangers. Characterized by its high corrosion resistance, excellent weldability, and good mechanical properties, Grade 1 titanium is commercially pure titanium with a minimum purity of 99.5%. This grade possesses the highest ductility among all titanium grades, which allows for easier forming and fabrication. Such attributes make it an ideal choice for environments where reliability and longevity are essential.

In heat exchanger applications, the choice of material can significantly affect operational efficiency and maintenance costs. Gr1 titanium pipes offer a lightweight yet durable solution that ensures efficient heat transfer while resisting the damaging effects of corrosive fluids. As industries increasingly seek sustainable and reliable solutions, the demand for Grade 1 titanium in heat exchangers continues to rise. This article delves into the unique properties, manufacturing processes, and applications of Gr1 titanium pipes in heat exchangers.

Key Properties of Gr1 Titanium

The primary attribute of Grade 1 titanium is its remarkable corrosion resistance, which is crucial for heat exchangers exposed to aggressive environments. Unlike traditional materials such as carbon steel or even some stainless steels, Grade 1 titanium remains unaffected by many acids and chlorides, making it ideal for chemical processing applications. This resistance translates into extended service life and reduced downtime, significantly lowering maintenance costs.

Another significant property of Gr1 titanium is its excellent thermal conductivity compared to other titanium grades. While titanium generally has lower thermal conductivity than common heat exchanger materials like copper or aluminum, Grade 1 titanium’s combination of strength, corrosion resistance, and lightweight nature provides a balanced solution for specific applications. The ability to withstand high temperatures without losing structural integrity further enhances its suitability for heat exchanger systems operating under demanding conditions.

Additionally, the biocompatibility of Grade 1 titanium makes it an attractive option for applications in industries such as pharmaceuticals and medical devices, where material interactions with fluids must be carefully controlled. Its low toxicity and non-reactive nature ensure that it can safely handle a variety of substances without leaching harmful compounds. These qualities collectively position Gr1 titanium as a versatile and reliable choice for heat exchangers across multiple sectors.

Manufacturing Processes of Gr1 Titanium Pipes

The production of Gr1 titanium pipes involves several sophisticated manufacturing processes designed to maintain the material's integrity and performance characteristics. It starts with the careful selection of high-purity titanium ingots, which undergo melting and refining processes such as vacuum arc remelting (VAR) to eliminate impurities. This initial step is crucial for ensuring that the final product meets the stringent quality standards required for heat exchanger applications.

Once the titanium is prepared, it is subjected to processes like hot working or cold working to create tubular shapes. Extrusion is a common method used for forming titanium pipes, where heated titanium billets are forced through a die to achieve the desired dimensions. Post-extrusion, the pipes often undergo heat treatment processes to relieve stresses and optimize mechanical properties.

Welding is another critical aspect of manufacturing Gr1 titanium pipes, especially for heat exchangers that require customized configurations. Techniques such as gas tungsten arc welding (GTAW) are employed, allowing for strong and defect-free joints. Strict quality control measures, including non-destructive testing and dimensional inspections, are implemented to ensure that the pipes meet all specifications and standards before they are delivered for use in heat exchangers.

Advantages of Gr1 Titanium Pipes in Heat Exchangers

The advantages of using Gr1 titanium pipes in heat exchangers are profound and multifaceted. One of the most significant benefits is their outstanding resistance to corrosion, particularly in aggressive environments where other materials may fail. This characteristic not only prolongs the lifespan of the heat exchanger system but also minimizes the need for frequent repairs or replacements, ultimately leading to cost savings.

Moreover, the lightweight nature of Grade 1 titanium contributes to easier installation and reduced support structure requirements. In scenarios where weight is a critical factor—such as marine applications or aircraft systems—Gr1 titanium pipes provide an efficient solution without compromising structural integrity. The ability to design more compact and lightweight heat exchangers allows for improved system performance and enhanced energy efficiency, which is increasingly important in today’s energy-conscious landscape.

Furthermore, Grade 1 titanium's high melting point and excellent fatigue resistance enable it to operate effectively under extreme thermal and mechanical stresses. This capability ensures that heat exchangers can maintain optimal performance even in challenging operational conditions. As industries push towards higher efficiency and sustainability, the role of Gr1 titanium pipes is becoming increasingly vital.

Applications of Gr1 Titanium Pipes

Gr1 titanium pipes find extensive applications across various industries due to their unique properties. In the petrochemical sector, these pipes are utilized in heat exchangers that handle corrosive substances, providing reliable performance even in harsh environments. Their ability to resist pitting, crevice corrosion, and stress corrosion cracking makes them ideal for this application, where equipment reliability is paramount.

In the marine industry, Gr1 titanium pipes are employed in cooling systems and heat exchangers for ships and submarines. Given the constant exposure to seawater, the corrosion resistance of Grade 1 titanium ensures durability and longevity, reducing maintenance needs and operational risks. This application highlights the importance of material selection in enhancing the overall reliability of marine systems.

The aerospace sector also leverages Gr1 titanium pipes in heat exchangers for aircraft engines and other critical systems. The lightweight and high-strength characteristics of Grade 1 titanium contribute significantly to fuel efficiency and overall aircraft performance. As the aerospace industry continues to innovate and strive for better fuel economy, the adoption of Gr1 titanium is expected to grow.

Future Trends and Conclusion

As technology advances, the future of Gr1 titanium pipes in heat exchanger applications looks promising. Upcoming innovations in manufacturing techniques, such as additive manufacturing, could allow for the creation of more complex geometries and optimized designs, further enhancing thermal performance. The growing emphasis on sustainability will likely drive increased demand for materials like Grade 1 titanium, which offers long service lives and recyclability, aligning with global environmental goals.

In conclusion, Gr1 titanium pipes stand out as an exceptional choice for heat exchanger applications. Their unique properties, coupled with advanced manufacturing processes, provide substantial advantages over traditional materials. As industries continue to prioritize efficiency, reliability, and sustainability, the use of Grade 1 titanium in heat exchangers is poised to become more prevalent, paving the way for improved performance across multiple sectors.
