Place of Origin:
Xi'an,China
Brand Name:
FHH

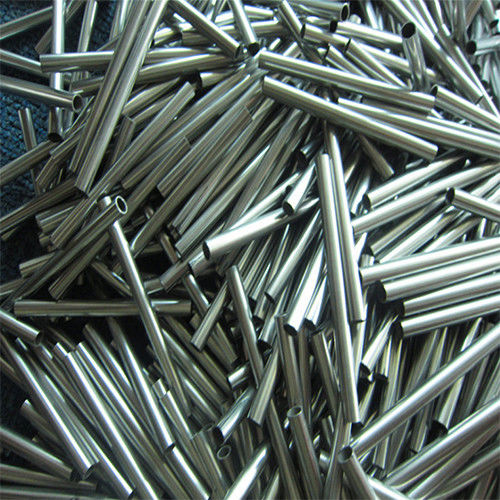

Silver Titanium Alloy Tube with Customizable Thickness for Industrial Applications
Titanium tubes can be divided into round tubes and square tubes according to their shape. The circular area is the largest under the condition of equal circumference, so the circular tube can transport more fluid. However, circular tubes also have certain limitations. For example, under the condition of plane bending, a round tube is not as strong as a square or rectangular tube.
When it comes to performance, the material can be gr1, gr2, and gr5 etc. For example, the material of gr5 is Ti6al4v, the tensile performance is more than 800, the yield is about 30, the density of titanium alloy 4.5g/cm3. Its strength is much higher than the strength of other industrial structure design materials, meaning it can create high strength hard, good rigidity, light weight product parts, suitable for mechanical parts, structural parts, skeletons and so on.
| Wall Thick. |
OD | OD Tolerance | ID | ID Tolerance | Straightness Tolerance |
Specifications Met | 1 ft. Lg. | 3 ft. Lg. | 5 ft. Lg. |
| 0.016" | 1/4" | 0" to 0.004" | 0.218" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.019" | 3/8" | 0" to 0.004" | 0.337" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.02" | 1/4" | 0" to 0.004" | 0.21" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.026" | 1/2" | 0" to 0.004" | 0.448" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.028" | 3/8" | 0" to 0.004" | 0.319" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.032" | 5/8" | 0" to 0.004" | 0.561" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.039" | 3/4" | 0" to 0.004" | 0.672" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 | |||
| 0.051" | 1" | 0" to 0.004" | 0.898" | -0.003" to 0.003" | 0.025" per ft. | SAE AMS4945 |
Titanium alloy has remarkable strength and heat endurance, allowing it to work in temperatures ranging from 150 to 500 degrees consistently and for a long period of time—even up to 450-500 degrees with no drop in hardness.
Moreover, this alloy exhibits amazing corrosion resistance against elements like seawater, alkalis, chlorine, nitric acid, and sulfuric acid.
Steel is widely used in the construction and machinery manufacturing industry, especially in structural and other projects. It also finds application in shipbuilding, aerospace and solar, nuclear power support. Steel is the ideal choice for steel structure engineering and power, chemical machinery, boiler construction, house construction, airports, etc. due to its non-magnetic nature and its relatively hard structure.

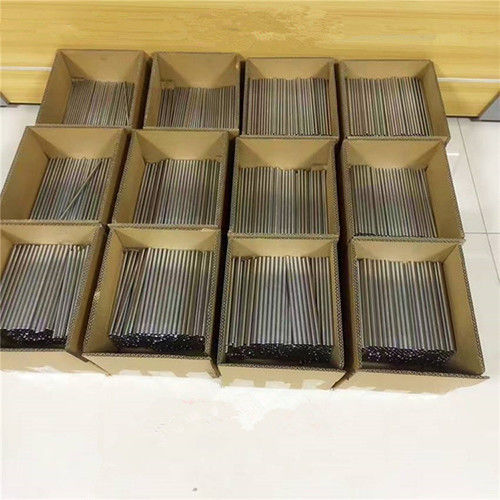

Titanium Tube Packaging and Shipping:
Titanium tubes are packaged in strong, durable boxes suitable for international shipping. The tubes are securely wrapped in bubble wrap and surrounded by packing peanuts or foam to ensure that they remain secure during transit. The boxes are clearly labelled with the contents, weight, and destination address, and are also marked with a 'Fragile' sticker to alert handlers of the need for extra care. The packages are further protected with heavy-duty tape along all edges of the box.
