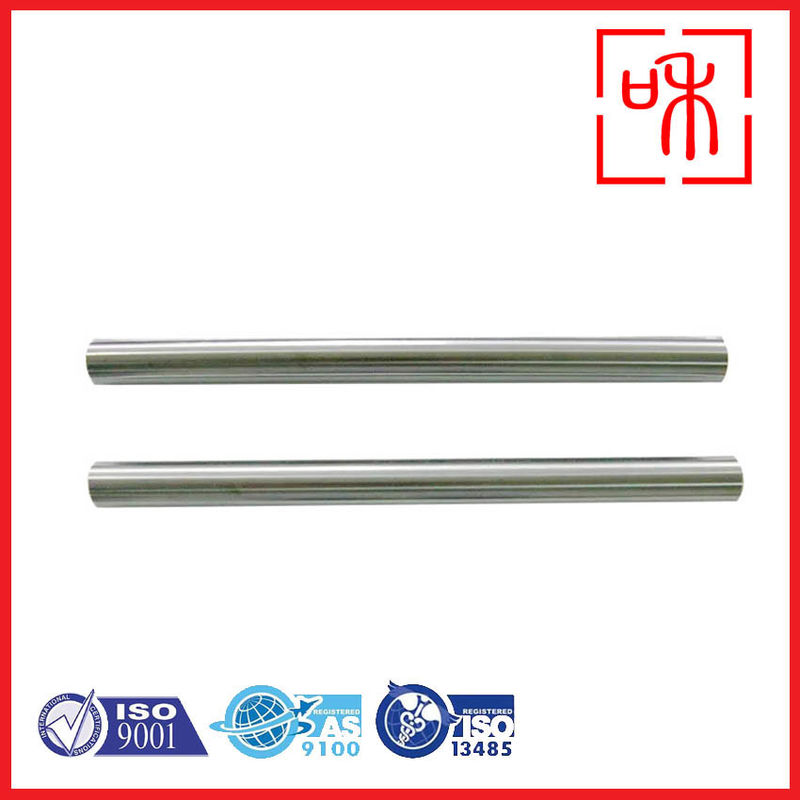

Grade 9 Gr9 Titanium Products Titanium Bars Alloy Round Bar For Industrial Applications

Introduction to Gr9 Titanium Alloy

Gr9 titanium, also known as Ti-3Al-2.5V, is a prominent titanium alloy primarily recognized for its superior strength-to-weight ratio and corrosion resistance. Composed of 90% titanium, 3% aluminum, and 2.5% vanadium, this alloy offers an exceptional combination of mechanical properties that make it suitable for various demanding applications. It is particularly favored in sectors such as aerospace, marine, and medical due to its lightweight nature and durability. Understanding the characteristics and applications of Gr9 titanium round bars can provide insights into why this material is a popular choice among engineers and manufacturers.

Mechanical Properties and Performance

Grade 9 titanium (Ti-3Al-2.5V) is renowned for its exceptional mechanical properties, making it a preferred choice in various demanding applications. Here’s a detailed overview of its performance characteristics:

1. Tensile Strength

• Tensile Strength: Approximately 900 MPa (130 ksi), which is significantly higher than many traditional materials like mild steel.
• Weight Advantage: The lower density of titanium (about 60% that of steel) allows for lighter components without sacrificing strength, crucial in industries such as aerospace and automotive.

2. Fatigue Resistance

• Excellent Fatigue Performance: Grade 9 titanium exhibits remarkable fatigue resistance, allowing it to endure repeated loading and unloading cycles. This is particularly important in applications such as aircraft components and high-performance machinery.

3. Temperature Performance

• High-Temperature Stability: Gr9 titanium maintains its mechanical properties at elevated temperatures, making it suitable for applications that experience thermal stress.
• Longevity and Reliability: Its ability to retain strength and ductility in high-temperature environments ensures long-term reliability in critical applications.

4. Thermal Expansion and Dimensional Stability

• Low Thermal Expansion Coefficient: This property contributes to the dimensional stability of Gr9 titanium, making it ideal for precision-engineered components that must maintain tight tolerances even under varying temperatures.

5. Versatility in Applications

• Aerospace: Used in airframe structures, engine components, and fasteners, where lightweight and high strength are essential.
• Automotive: Ideal for performance parts like suspension components, where reduced weight leads to enhanced performance.
• Marine: Employed in applications requiring corrosion resistance and high strength in challenging environments.

Conclusion

Grade 9 titanium’s combination of high tensile strength, excellent fatigue resistance, and stability at elevated temperatures makes it a versatile and high-performing material. Its attributes not only contribute to improved performance and longevity in various industrial applications but also facilitate innovative designs that prioritize weight reduction without compromising safety and durability.

Benefits of Grade 9 Titanium

Grade 9 titanium offers numerous advantages across various industries due to its unique properties. Here are the key benefits:

1. High Strength-to-Weight Ratio

• Lightweight: Significantly lighter than steel while providing comparable or superior strength, making it ideal for applications where weight reduction is crucial, such as aerospace and automotive.

2. Excellent Corrosion Resistance

• Durability: Resists corrosion in a variety of environments, including marine and chemical settings, leading to longer service life and reduced maintenance costs.

3. Good Fatigue Resistance

• Longevity: Withstands repeated stress and strain, making it suitable for components subjected to cyclical loading, such as aircraft parts and high-performance machinery.

4. High-Temperature Performance

• Stability: Maintains mechanical properties at elevated temperatures, which is essential for parts that operate in high-heat environments, ensuring reliability and performance.

5. Dimensional Stability

• Precision Engineering: Features a low thermal expansion coefficient, which helps maintain tight tolerances and dimensional accuracy, crucial for high-precision applications.

6. Weldability

• Fabrication Friendly: Can be welded and fabricated using standard techniques, allowing for versatility in design and manufacturing processes.

7. Biocompatibility

• Medical Applications: Non-toxic and biocompatible, making it suitable for medical implants and devices where interaction with biological tissues is required.

8. Versatility

• Wide Range of Applications: Utilized in diverse industries, including aerospace, automotive, marine, chemical processing, and medical devices, thanks to its favorable combination of properties.

9. Aesthetic Appeal

• Finish and Appearance: Can be polished to a high finish, making it attractive for consumer products and jewelry, combining functionality with aesthetics.

Technical Parameters

Gr 5 titanium alloy bar / rod Chemical Composition

Gr 5 titanium bar / rod Mechanical Properties

Equivalent Grades for Gr 5

Different Grades of Titanium

Different Grades of Titanium Rods Titanium alloy rods are classified into different grades based on their composition and properties, with each grade offering unique characteristics suitable for various applications. Common titanium alloy grades include: Grade 1, which is 99.5% pure titanium, possesses excellent corrosion resistance and good formability but has low strength, making it suitable for chemical processing and marine applications; Grade 2, at 99.2% pure titanium, provides a good balance of strength and ductility, widely used in aerospace and industrial sectors; Grade 3 has higher strength than Grade 2 and is suitable for aerospace and military uses; Grade 4 is noted for its exceptional strength, used in applications requiring high strength in aerospace and chemical processing; Grade 5 (Ti-6Al-4V) is the most commonly used titanium alloy, known for its high strength-to-weight ratio and is suitable for aerospace and medical implants; Grade 6 offers improved weldability and corrosion resistance, primarily applied in aerospace and chemical industries; Grade 7, with 0.2% palladium added, enhances corrosion resistance in acidic environments; Grade 9 (Ti-3Al-2.5V) exhibits good weldability and corrosion resistance, suitable for aerospace and medical applications; and finally, Grade 23 (Ti-6Al-4V ELI) excels in biocompatibility, making it ideal for medical implants and devices. The choice of titanium alloy rod grade depends on specific application requirements, including strength, weight, corrosion resistance, and weldability.

Manufacturing Processes of Gr9 Titanium Bars

Producing Gr9 titanium round bars involves several advanced manufacturing processes, each aimed at ensuring high-quality and precise specifications. Common techniques include forging, extrusion, and machining. Forging processes enhance the microstructure of the alloy, improving its strength and toughness. By refining the grain structure during forging, manufacturers can produce components that perform exceptionally well under stress.

Extrusion is another popular method used to create titanium round bars, allowing for the production of uniform profiles over long lengths. This method is particularly advantageous for applications that require specific dimensions and shapes. Additionally, machining plays a crucial role in achieving tight tolerances and intricate designs, which are essential for many engineering applications. Together, these manufacturing processes ensure that Gr9 titanium round bars meet the stringent requirements of diverse industries.

Applications Across Various Industries

The versatility of Gr9 titanium round bars has led to their widespread use across numerous industries. In aerospace, they are utilized in components such as aircraft frames, engine parts, and fasteners, where weight savings and strength are paramount. The lightweight nature of Gr9 titanium contributes to fuel efficiency, making it a preferred material for modern aircraft design. As the aerospace sector continues to evolve, the demand for Gr9 titanium is likely to increase, driven by the need for innovative materials that enhance performance and safety.

In the medical field, Gr9 titanium finds applications in orthopedic implants, dental fixtures, and surgical tools. Its biocompatibility, combined with its strength, makes it an ideal choice for implants that must integrate seamlessly with biological systems. The ability of Gr9 titanium to promote osseointegration further supports its use in dental and orthopedic applications, ensuring that patients benefit from reliable and durable solutions. As advancements in medical technology progress, the utilization of Gr9 titanium in healthcare is anticipated to expand significantly.

The automotive industry also recognizes the advantages of Gr9 titanium, particularly in high-performance vehicles. Components such as exhaust systems, connecting rods, and suspension parts benefit from the alloy's excellent properties, contributing to overall vehicle efficiency and performance. The trend toward lightweight materials to improve fuel economy and reduce emissions aligns with the growing use of Gr9 titanium in automotive applications. As manufacturers seek to optimize vehicle design, Gr9 titanium will likely play a pivotal role in future automotive innovations.
