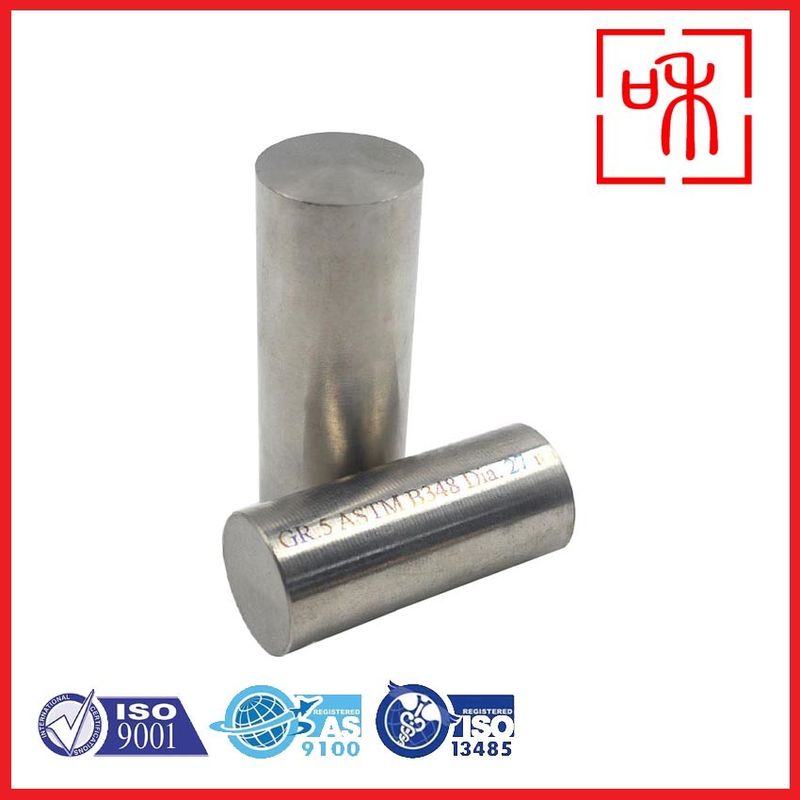

Grade 2 Grade 5 ASTM B265 Titanium Bars Titanium Rod Ensuring Structural Integrity For Medical Applications

Medical titanium bars, particularly those manufactured in ASTM Grade 5, represent a significant advancement in the field of medical materials. This grade, also known as Ti-6Al-4V, is an alloy composed of 90% titanium, 6% aluminum, and 4% vanadium, making it one of the most commonly used titanium alloys in medical applications. Its exceptional properties make it an ideal choice for manufacturing a wide range of medical devices, prostheses, artificial organs, and auxiliary treatment devices that are implanted in the human body.

One of the key advantages of ASTM Grade 5 titanium alloys is their high specific strength. This characteristic allows for the creation of implants that are not only lightweight but also strong enough to withstand the stresses encountered in the human body. The mechanical properties of these alloys closely mimic those of human bone, which is crucial for ensuring the proper integration and functionality of implants. This similarity helps in reducing the risk of complications such as stress shielding, where the difference in stiffness between the implant and surrounding bone can lead to bone resorption and implant failure.

In addition to their mechanical advantages, ASTM Grade 5 titanium alloys exhibit excellent fatigue resistance. This property is vital for devices that will experience repeated loading and unloading, such as joint replacements and dental implants. The fatigue resistance of titanium ensures that these devices maintain their integrity over time, even under strenuous conditions.

Corrosion resistance is another remarkable feature of titanium alloys. The human body is a complex environment filled with various fluids and biological substances that can cause the degradation of materials. However, titanium forms a protective oxide layer that significantly enhances its resistance to corrosion. This characteristic is particularly important for implants that must remain in the body for extended periods, as it helps ensure long-term durability and reliability.

Furthermore, the biocompatibility of ASTM Grade 5 titanium alloys is a crucial factor in their use in medical applications. These alloys do not induce adverse reactions when in contact with human tissue, making them safe for implantation. This biocompatibility is supported by extensive research and clinical studies, confirming that titanium implants integrate well with bone and other tissues.

The Role of 10mm Medical Titanium Alloy Bars in Modern Medicine

10mm medical titanium alloy bars are increasingly important in various medical applications due to their unique properties and benefits. Here’s an overview of their roles:

1. Biocompatibility

• Key Feature: Titanium and its alloys, such as Ti-6Al-4V, are biocompatible, meaning they are well-accepted by the human body.
• Application: Used for implants and prosthetics, they minimize rejection and promote integration with surrounding tissues.

2. Strength and Lightweight

• Key Feature: Titanium alloys have a high strength-to-weight ratio, making them ideal for load-bearing applications.
• Application: Used in orthopedic implants (e.g., screws, plates) and dental implants, they provide stability without adding excessive weight.

3. Corrosion Resistance

• Key Feature: Titanium is highly resistant to corrosion, even in body fluids.
• Application: This property is crucial for implants that must endure long-term exposure to the physiological environment without degrading.

4. Machinability and Fabrication

• Key Feature: 10mm bars can be easily machined and shaped into complex designs.
• Application: This versatility allows for customized implants tailored to individual patient needs, improving surgical outcomes.

5. Thermal Stability

• Key Feature: Titanium maintains its mechanical properties at elevated temperatures.
• Application: This stability is important for applications involving sterilization processes, ensuring the integrity of the implants post-processing.

6. Radiopacity

• Key Feature: Titanium provides a degree of radiopacity, allowing for better imaging in X-rays and CT scans.
• Application: This enables healthcare providers to monitor the placement and condition of implants over time.

Chemical composition of medical tianium bar:

Gr 5 titanium alloy bar / rod Chemical Composition

Gr 5 titanium bar / rod Mechanical Properties

Equivalent Grades for Gr 5

Advantages of Titanium Rods

Titanium rods offer numerous advantages over traditional materials like steel and aluminum. Here are some key benefits:
Biocompatibility: One of titanium's standout properties is its biocompatibility. It is non-toxic and does not induce adverse reactions in the human body, making it a preferred material for medical implants, dental devices, and prosthetics. Its use in healthcare continues to expand, driven by its safety and effectiveness.
Non-magnetic: Titanium is inherently non-magnetic, making it an ideal choice for applications in medical equipment, such as MRI machines, where magnetic interference could disrupt functionality. This property is crucial in ensuring the safety and accuracy of medical imaging.
Strength: Titanium boasts a very high strength-to-weight ratio, meaning it is stronger than steel while remaining significantly lighter. This property is particularly beneficial in applications where reducing weight is critical, such as in aerospace and automotive industries.
Corrosion Resistance: The natural oxide layer on titanium provides exceptional resistance to corrosion. This feature enables titanium to perform reliably in harsh environments, including marine and chemical applications, where other materials might degrade quickly.
Durability: Titanium is highly resistant to wear and tear, significantly outlasting many other materials. This durability translates to lower maintenance costs and longer service life in various applications, from industrial machinery to consumer goods.
Aesthetics: Titanium has a unique and attractive appearance that makes it popular in jewelry and decorative applications. Its lustrous finish and ability to take on vibrant colors through anodization have made titanium a fashionable choice for high-end accessories.

Technical Parameters:

The technical parameters of titanium bars can vary depending on the specific grade and application. However, here are some common parameters to consider:

1. Grade: Titanium bars are available in several grades, with Grade 1 to Grade 4 being commercially pure titanium, and Grades 5 (Ti-6Al-4V) and 6 (Ti-6Al-4V ELI) being titanium alloys with enhanced properties.

2. Chemical Composition:

   • Grade 5: Approximately 90% titanium, 6% aluminum, and 4% vanadium.
   • Grade 2: Approximately 99.2% titanium with small amounts of iron and oxygen.

3. Mechanical Properties:

   • Tensile Strength: Ranges from about 400 to 1,200 MPa (58,000 to 174,000 psi), depending on the grade.
   • Yield Strength: Approximately 240 to 1,000 MPa (35,000 to 145,000 psi).
   • Elongation: Generally ranges from 10% to 30%, indicating ductility.

4. Density: Approximately 4.51 g/cm³, which contributes to its lightweight nature.

5. Hardness: Vickers hardness can range from 160 to 400 HV, depending on the specific grade and treatment.

6. Thermal Properties:

   • Melting Point: Approximately 1,668 °C (3,034 °F).
   • Thermal Conductivity: About 21.9 W/m·K.

7. Dimensions: Titanium bars are typically available in various diameters (ranging from a few millimeters to several inches) and lengths (often from 1 to 6 meters or more), depending on the supplier.

8. Surface Finish: Options may include mill finish, polished, or anodized, depending on application requirements.

9. Standard Specifications: Common standards for titanium bars include ASTM B348 (for titanium and titanium alloy bars) and AMS 4928 (for titanium alloy bars).

Applications of Titanium Bars

Titanium bars are widely used across various industries due to their unique properties, such as high strength, lightweight, excellent corrosion resistance, and biocompatibility. In the aerospace sector, titanium bars are utilized in airframe structures, engine components, and fasteners, significantly enhancing fuel efficiency and flight performance. In the medical field, they are fabricated into orthopedic implants (like screws and plates) and dental implants, and also used for high-strength surgical instruments, making them suitable for long-term implantation in the body due to their biocompatibility.

In marine applications, titanium bars are employed in components such as propellers, shafts, and fittings for boats and submarines, providing resistance to saltwater corrosion. In the chemical processing industry, they are used in pipes and tanks for handling corrosive substances, greatly extending the lifespan of the equipment. Additionally, in the automotive industry, titanium bars are found in high-performance parts like exhaust systems and chassis components, contributing to weight reduction and improved fuel efficiency.

In sports equipment, they are used in high-end bicycles, golf clubs, and other gear where strength and lightweight are critical. Titanium bars also play a role in construction and architecture, serving as structural components and decorative elements, appreciated for their aesthetics and strength. In the energy sector, they are applied in offshore drilling equipment and pipelines in the oil and gas industry, as well as in components for wind turbines and solar panel mounts in renewable energy. Overall, the applications of titanium bars are expanding across multiple industries, and their potential continues to grow with advancements in technology.

In conclusion, ASTM Grade 5 medical titanium bars are indispensable in the production of high-quality medical devices. Their unique combination of strength, fatigue resistance, corrosion resistance, and biocompatibility positions them as a superior choice for implants and other medical applications. As the demand for innovative and reliable medical solutions continues to grow, the role of titanium alloys will remain central to advancements in patient care and surgical technology.
