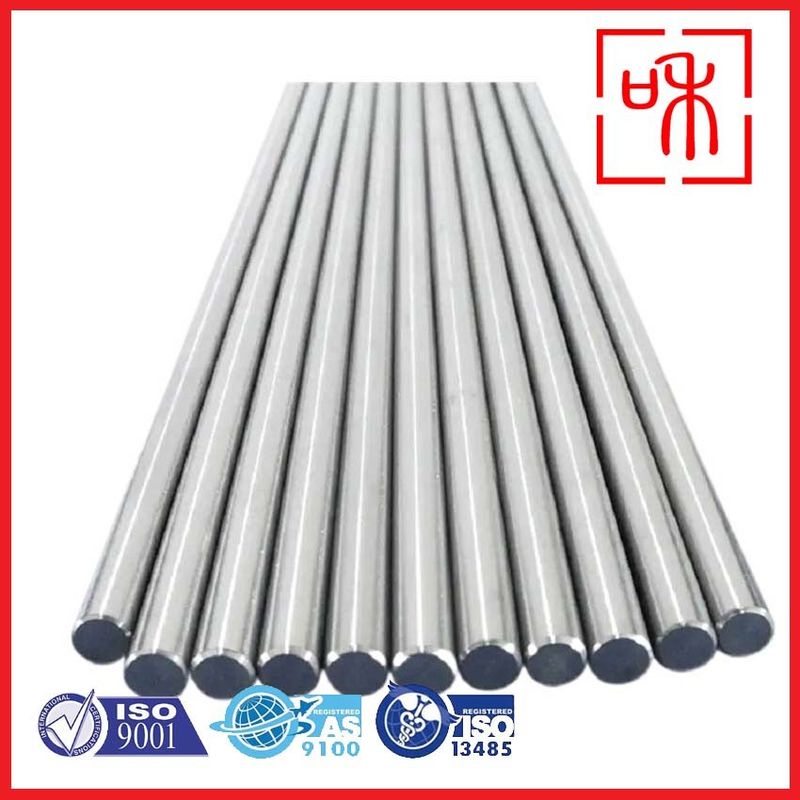

ASTM B348 Gr9 Titanium Bars Alloy Round Bar For Demanding Environments Purposes

Introduction to Gr9 Titanium Alloy

Gr9 titanium, also known as Ti-3Al-2.5V, is a prominent titanium alloy primarily recognized for its superior strength-to-weight ratio and corrosion resistance. Composed of 90% titanium, 3% aluminum, and 2.5% vanadium, this alloy offers an exceptional combination of mechanical properties that make it suitable for various demanding applications. It is particularly favored in sectors such as aerospace, marine, and medical due to its lightweight nature and durability. Understanding the characteristics and applications of Gr9 titanium round bars can provide insights into why this material is a popular choice among engineers and manufacturers.

Mechanical Properties and Performance

One of the standout features of Gr9 titanium is its impressive mechanical strength. With a tensile strength of approximately 900 MPa, it offers a significant advantage over traditional materials like steel while maintaining a much lower density. This strength allows for the design of lighter components without compromising structural integrity, which is crucial in industries where weight reduction leads to improved performance, such as aerospace. Additionally, Gr9 exhibits excellent fatigue resistance, making it ideal for applications subjected to repeated stress and strain.

In terms of temperature performance, Gr9 titanium maintains its mechanical properties even in elevated environments. This attribute is particularly beneficial for components that operate under high-temperature conditions, ensuring longevity and reliability. Furthermore, the alloy's low thermal expansion coefficient contributes to its dimensional stability, which is vital for precision-engineered parts. The combination of these mechanical properties makes Gr9 titanium a versatile option for a wide range of industrial applications.

Differences between Grade 7 and Grade 9

Titanium grades are categorized based on their composition and properties, with Grade 7 and Grade 9 being two commonly used variants. Here are the key differences between them:

1. Composition

• Grade 7 (Ti-0.2Pd): Contains 0.12–0.25% palladium (Pd) as an alloying element. This addition enhances corrosion resistance, particularly in reducing environments.
• Grade 9 (Ti-3Al-2.5V): Composed of 3% aluminum and 2.5% vanadium. This alloying improves strength and weldability.

2. Mechanical Properties

• Grade 7: Offers good strength and ductility, with a typical yield strength around 240 MPa (35 ksi) and tensile strength of about 480 MPa (70 ksi).
• Grade 9: Has higher strength than Grade 7, with yield strength around 400 MPa (58 ksi) and tensile strength of approximately 880 MPa (128 ksi). It is often chosen for applications requiring higher mechanical performance.

3. Corrosion Resistance

• Grade 7: Excellent corrosion resistance, particularly in acidic environments, making it suitable for chemical processing applications.
• Grade 9: Good corrosion resistance, but not as high as Grade 7 due to the absence of palladium. It is often used in environments where strength is more critical than extreme corrosion resistance.

4. Applications

• Grade 7: Commonly used in the chemical and petrochemical industries, particularly for equipment exposed to corrosive environments, such as heat exchangers, piping, and valves.
• Grade 9: Frequently used in aerospace applications, automotive components, and sporting goods, where a combination of high strength and low weight is essential.

5. Weldability

• Grade 7: Generally good weldability, especially when proper techniques are used to maintain corrosion resistance.
• Grade 9: Also has good weldability, making it suitable for applications that require fabrication and joining.

Technical Parameters

Gr 5 titanium alloy bar / rod Chemical Composition

Gr 5 titanium bar / rod Mechanical Properties

Equivalent Grades for Gr 5

Different Grades of Titanium

Different Grades of Titanium Rods Titanium alloy rods are classified into different grades based on their composition and properties, with each grade offering unique characteristics suitable for various applications. Common titanium alloy grades include: Grade 1, which is 99.5% pure titanium, possesses excellent corrosion resistance and good formability but has low strength, making it suitable for chemical processing and marine applications; Grade 2, at 99.2% pure titanium, provides a good balance of strength and ductility, widely used in aerospace and industrial sectors; Grade 3 has higher strength than Grade 2 and is suitable for aerospace and military uses; Grade 4 is noted for its exceptional strength, used in applications requiring high strength in aerospace and chemical processing; Grade 5 (Ti-6Al-4V) is the most commonly used titanium alloy, known for its high strength-to-weight ratio and is suitable for aerospace and medical implants; Grade 6 offers improved weldability and corrosion resistance, primarily applied in aerospace and chemical industries; Grade 7, with 0.2% palladium added, enhances corrosion resistance in acidic environments; Grade 9 (Ti-3Al-2.5V) exhibits good weldability and corrosion resistance, suitable for aerospace and medical applications; and finally, Grade 23 (Ti-6Al-4V ELI) excels in biocompatibility, making it ideal for medical implants and devices. The choice of titanium alloy rod grade depends on specific application requirements, including strength, weight, corrosion resistance, and weldability.

Manufacturing Processes of Titanium Bars

Manufacturing titanium bars involves several key processes to transform raw titanium or titanium alloys into finished products. Here’s an overview of the main manufacturing processes:

1. Raw Material Preparation

• Titanium Sponge Production: Titanium is typically obtained in the form of titanium sponge, produced from titanium tetrachloride through the Kroll process.
• Alloying: For alloyed titanium bars, elements like aluminum and vanadium are added to the titanium sponge.

2. Melting

• Vacuum Arc Remelting (VAR): This process involves melting the titanium sponge or alloy in a vacuum environment using an electric arc. VAR produces a high-quality ingot with minimal contamination.
• Electron Beam Melting (EBM): Another method where an electron beam is used to melt the titanium. This is suitable for producing high-purity titanium and specific alloy compositions.

3. Casting

• Ingot Casting: The melted titanium is poured into molds to create large ingots. The cooling process is controlled to ensure the desired microstructure and properties.

4. Forming Processes

• Hot Working: The ingots are often hot forged or rolled into bars. Hot working involves heating the titanium to a specific temperature to improve ductility and facilitate shaping.
• Cold Working: Some processes, like cold drawing, may follow hot working to refine dimensions and enhance mechanical properties.

5. Heat Treatment

• Solution Treating and Aging: Depending on the alloy, heat treatment may be applied to optimize mechanical properties. This can involve heating the bars to a high temperature and then cooling them in air or oil.

6. Machining

• Turning, Milling, and Grinding: After forming, the titanium bars may undergo machining to achieve precise dimensions and surface finishes. This step is critical for meeting specifications for various applications.

7. Finishing

• Surface Treatments: Processes like anodizing or passivation can enhance corrosion resistance and improve surface properties.
• Inspection and Quality Control: Each batch is inspected for dimensional accuracy, surface quality, and mechanical properties, ensuring compliance with industry standards.

8. Packaging and Delivery

• Finished titanium bars are packaged to prevent damage during transport and delivered to customers or manufacturers for further processing.

Applications Across Various Industries

The versatility of Gr9 titanium round bars has led to their widespread use across numerous industries. In aerospace, they are utilized in components such as aircraft frames, engine parts, and fasteners, where weight savings and strength are paramount. The lightweight nature of Gr9 titanium contributes to fuel efficiency, making it a preferred material for modern aircraft design. As the aerospace sector continues to evolve, the demand for Gr9 titanium is likely to increase, driven by the need for innovative materials that enhance performance and safety.

In the medical field, Gr9 titanium finds applications in orthopedic implants, dental fixtures, and surgical tools. Its biocompatibility, combined with its strength, makes it an ideal choice for implants that must integrate seamlessly with biological systems. The ability of Gr9 titanium to promote osseointegration further supports its use in dental and orthopedic applications, ensuring that patients benefit from reliable and durable solutions. As advancements in medical technology progress, the utilization of Gr9 titanium in healthcare is anticipated to expand significantly.

The automotive industry also recognizes the advantages of Gr9 titanium, particularly in high-performance vehicles. Components such as exhaust systems, connecting rods, and suspension parts benefit from the alloy's excellent properties, contributing to overall vehicle efficiency and performance. The trend toward lightweight materials to improve fuel economy and reduce emissions aligns with the growing use of Gr9 titanium in automotive applications. As manufacturers seek to optimize vehicle design, Gr9 titanium will likely play a pivotal role in future automotive innovations.

Conclusion

Gr9 titanium, or Ti-3Al-2.5V, stands out as a remarkable titanium alloy characterized by its exceptional mechanical properties, corrosion resistance, and versatility. The alloy’s lightweight nature coupled with its strength makes it invaluable across various industries, including aerospace, medical, and automotive. Understanding the manufacturing processes and applications of Gr9 titanium round bars highlights their significance in modern engineering and technology. As industries continue to demand advanced materials that enhance performance and durability, Gr9 titanium will remain a critical component in the development of innovative solutions, driving progress in multiple fields.
