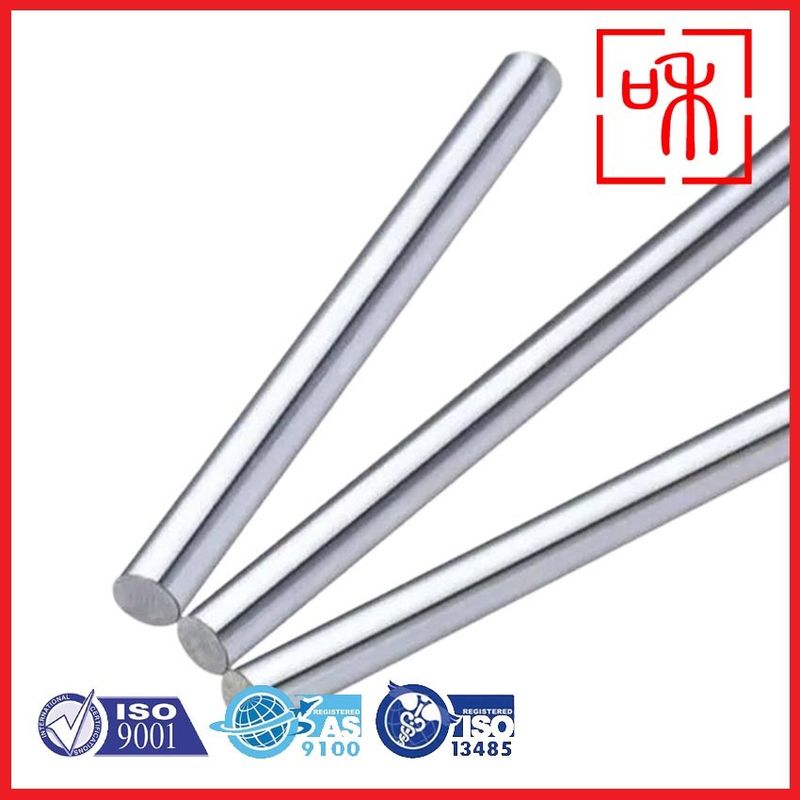

Grade 5 ASTM Titanium Bars Pure Titanium Bar For Manufacturing And Production Applications

Introduction to ASTM Grade 5 Titanium

ASTM Grade 5 titanium, also known as Ti-6Al-4V, is one of the most widely used titanium alloys in various industries due to its exceptional strength, lightweight properties, and corrosion resistance. Comprising approximately 90% titanium, 6% aluminum, and 4% vanadium, this alloy offers a unique balance of mechanical properties that make it suitable for demanding applications. The designation "ASTM" refers to the American Society for Testing and Materials, which establishes standardized specifications for materials, ensuring quality and consistency across different applications. This article delves into the characteristics, manufacturing processes, applications, and advantages of ASTM Grade 5 titanium bars and rods.

Exceptional Mechanical Properties

One of the key features of ASTM Grade 5 titanium is its remarkable mechanical strength. With a tensile strength of around 900 MPa and a yield strength exceeding 800 MPa, it provides an excellent strength-to-weight ratio, making it particularly beneficial in industries where weight savings are crucial, such as aerospace and automotive. Additionally, Grade 5 titanium maintains its strength at elevated temperatures, allowing it to perform effectively in high-stress environments. This durability ensures that components made from this alloy can withstand extreme conditions without compromising their integrity.

Furthermore, Grade 5 titanium exhibits excellent fatigue resistance, making it ideal for components subjected to cyclic loading. This property is critical in applications like aircraft frames and medical implants, where failure due to fatigue can have severe consequences. The ability to retain mechanical properties through various processing methods further enhances its versatility, allowing manufacturers to tailor the alloy to specific needs. Overall, the mechanical properties of ASTM Grade 5 titanium bars and rods make them a reliable choice for engineers and designers seeking high-performance materials.

Technical Parameters:

Chemical composition of medical tianium bar:

Different Grades of Titanium Rods

Titanium alloy rods are classified into different grades based on their composition and properties, with each grade offering unique characteristics suitable for various applications. Common titanium alloy grades include: Grade 1, which is 99.5% pure titanium, possesses excellent corrosion resistance and good formability but has low strength, making it suitable for chemical processing and marine applications; Grade 2, at 99.2% pure titanium, provides a good balance of strength and ductility, widely used in aerospace and industrial sectors; Grade 3 has higher strength than Grade 2 and is suitable for aerospace and military uses; Grade 4 is noted for its exceptional strength, used in applications requiring high strength in aerospace and chemical processing; Grade 5 (Ti-6Al-4V) is the most commonly used titanium alloy, known for its high strength-to-weight ratio and is suitable for aerospace and medical implants; Grade 6 offers improved weldability and corrosion resistance, primarily applied in aerospace and chemical industries; Grade 7, with 0.2% palladium added, enhances corrosion resistance in acidic environments; Grade 9 (Ti-3Al-2.5V) exhibits good weldability and corrosion resistance, suitable for aerospace and medical applications; and finally, Grade 23 (Ti-6Al-4V ELI) excels in biocompatibility, making it ideal for medical implants and devices. The choice of titanium alloy rod grade depends on specific application requirements, including strength, weight, corrosion resistance, and weldability.

Advantages of Grade 2 Titanium Rods

1. Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including saltwater and acidic conditions.

2. High Strength-to-Weight Ratio: Provides strong structural support while remaining lightweight, making it ideal for aerospace and medical applications.

3. Good Weldability: Can be welded using standard techniques, allowing for versatile fabrication options.

4. Ductility: Exhibits good elongation and flexibility, enabling it to be formed and shaped without cracking.

5. Biocompatibility: Non-toxic and highly biocompatible, making it suitable for medical implants and devices.

6. Temperature Resistance: Maintains mechanical properties at elevated temperatures, suitable for high-temperature applications.

7. Low Thermal Conductivity: Provides thermal insulation, making it beneficial in specific applications where heat transfer needs to be minimized.

8. Aesthetic Appeal: Natural finish and ability to be polished, making it visually appealing for decorative and architectural uses.

Technical Parameters:

Manufacturing Processes of Gr5 Titanium Bars

Manufacturing titanium bars involves several key processes that ensure the material meets specific mechanical and physical properties. Here are the primary manufacturing processes:

1. Raw Material Extraction:

   • Titanium is extracted from ores such as ilmenite and rutile. The extraction process typically involves a series of chemical reactions, including the Kroll process, where titanium tetrachloride is reduced to titanium.

2. Melting:

   • Vacuum Arc Remelting (VAR): This process involves melting titanium under a vacuum to prevent contamination. It improves purity and enhances mechanical properties.
   • Electron Beam Melting (EBM): Similar to VAR, this method uses an electron beam to melt titanium, producing high-purity titanium with a fine microstructure.

3. Forming:

   • Hot Working: Titanium can be hot worked through processes such as forging or rolling. This involves heating the titanium to a specific temperature range (typically 800-1000°C) to improve ductility and reduce the risk of cracking.
   • Cold Working: After initial shaping, titanium can undergo cold working to enhance strength through strain hardening.

4. Machining:

   • Titanium bars are often machined to achieve precise dimensions and surface finishes. Techniques include turning, milling, and grinding. Due to titanium's toughness, special cutting tools and slower speeds are used to prevent tool wear.

5. Heat Treatment:

   • Heat treatment processes such as annealing or aging may be employed to optimize the mechanical properties of the titanium bars. This can enhance strength and ductility, depending on the desired application.

6. Surface Treatment:

   • Various surface treatments may be applied to improve corrosion resistance or wear properties. Techniques include anodizing, passivation, or coating.

7. Quality Control:

   • Throughout the manufacturing process, rigorous quality control measures are implemented. This includes testing for chemical composition, mechanical properties, and non-destructive testing (NDT) to detect any defects.

Applications of Titanium Bars

Titanium bars are widely used across various industries due to their unique properties, such as high strength, lightweight, excellent corrosion resistance, and biocompatibility. In the aerospace sector, titanium bars are utilized in airframe structures, engine components, and fasteners, significantly enhancing fuel efficiency and flight performance. In the medical field, they are fabricated into orthopedic implants (like screws and plates) and dental implants, and also used for high-strength surgical instruments, making them suitable for long-term implantation in the body due to their biocompatibility.

In marine applications, titanium bars are employed in components such as propellers, shafts, and fittings for boats and submarines, providing resistance to saltwater corrosion. In the chemical processing industry, they are used in pipes and tanks for handling corrosive substances, greatly extending the lifespan of the equipment. Additionally, in the automotive industry, titanium bars are found in high-performance parts like exhaust systems and chassis components, contributing to weight reduction and improved fuel efficiency.

In sports equipment, they are used in high-end bicycles, golf clubs, and other gear where strength and lightweight are critical. Titanium bars also play a role in construction and architecture, serving as structural components and decorative elements, appreciated for their aesthetics and strength. In the energy sector, they are applied in offshore drilling equipment and pipelines in the oil and gas industry, as well as in components for wind turbines and solar panel mounts in renewable energy. Overall, the applications of titanium bars are expanding across multiple industries, and their potential continues to grow with advancements in technology.
