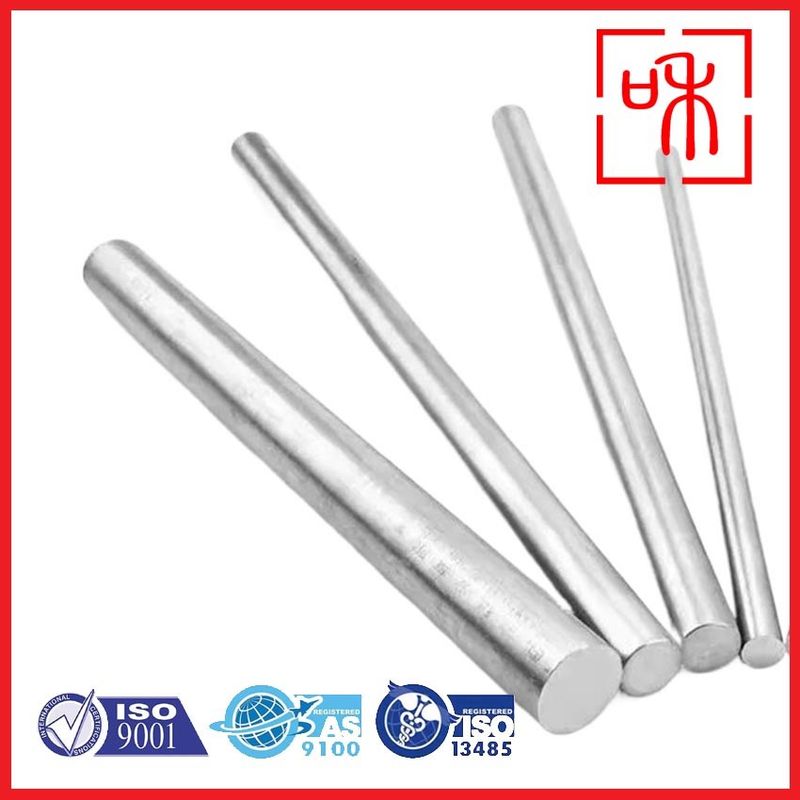

Alloy Round Bar ASTM B265 Grade 2 Titanium Bars For Weight-Sensitive Applications

Introduction to Titanium Bars

ASTM Grade 2 titanium is a commercially pure titanium alloy known for its excellent corrosion resistance, high strength-to-weight ratio, and good weldability. It typically consists of 99.2% titanium, with small amounts of iron, oxygen, and other elements, which contributes to its favorable mechanical properties. The yield strength of Grade 2 titanium is approximately 275 MPa (40,000 psi), with a tensile strength of around 480 MPa (70,000 psi) and an elongation of about 20% in a 50 mm sample, indicating good ductility.

This titanium alloy exhibits outstanding resistance to oxidation and various corrosive environments, particularly in saltwater and acidic conditions, making it highly valued in the chemical processing industry. Additionally, Grade 2 titanium can be welded using standard methods such as TIG and MIG, although precautions must be taken to avoid contamination. It finds widespread application in aerospace (for airframes, engine components, and fasteners), medical (in implants, surgical instruments, and dental applications), and chemical processing (in equipment and piping systems exposed to corrosive chemicals) sectors. Overall, ASTM Grade 2 titanium demonstrates excellent suitability for a range of demanding applications due to its strength, lightweight nature, and corrosion resistance.

Gr 2 titanium alloy bar / rod Chemical Composition

Gr 2 titanium bar / rod Mechanical Properties

Chemical composition of medical tianium bar:

Advantages of Grade 2 Titanium Rods

1. Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including saltwater and acidic conditions.

2. High Strength-to-Weight Ratio: Provides strong structural support while remaining lightweight, making it ideal for aerospace and medical applications.

3. Good Weldability: Can be welded using standard techniques, allowing for versatile fabrication options.

4. Ductility: Exhibits good elongation and flexibility, enabling it to be formed and shaped without cracking.

5. Biocompatibility: Non-toxic and highly biocompatible, making it suitable for medical implants and devices.

6. Temperature Resistance: Maintains mechanical properties at elevated temperatures, suitable for high-temperature applications.

7. Low Thermal Conductivity: Provides thermal insulation, making it beneficial in specific applications where heat transfer needs to be minimized.

8. Aesthetic Appeal: Natural finish and ability to be polished, making it visually appealing for decorative and architectural uses.

Technical Parameters:

Manufacturing Processes of Gr2 Titanium Bars

Manufacturing titanium bars involves several key processes that ensure the material meets specific mechanical and physical properties. Here are the primary manufacturing processes:

1. Raw Material Extraction:

   • Titanium is extracted from ores such as ilmenite and rutile. The extraction process typically involves a series of chemical reactions, including the Kroll process, where titanium tetrachloride is reduced to titanium.

2. Melting:

   • Vacuum Arc Remelting (VAR): This process involves melting titanium under a vacuum to prevent contamination. It improves purity and enhances mechanical properties.
   • Electron Beam Melting (EBM): Similar to VAR, this method uses an electron beam to melt titanium, producing high-purity titanium with a fine microstructure.

3. Forming:

   • Hot Working: Titanium can be hot worked through processes such as forging or rolling. This involves heating the titanium to a specific temperature range (typically 800-1000°C) to improve ductility and reduce the risk of cracking.
   • Cold Working: After initial shaping, titanium can undergo cold working to enhance strength through strain hardening.

4. Machining:

   • Titanium bars are often machined to achieve precise dimensions and surface finishes. Techniques include turning, milling, and grinding. Due to titanium's toughness, special cutting tools and slower speeds are used to prevent tool wear.

5. Heat Treatment:

   • Heat treatment processes such as annealing or aging may be employed to optimize the mechanical properties of the titanium bars. This can enhance strength and ductility, depending on the desired application.

6. Surface Treatment:

   • Various surface treatments may be applied to improve corrosion resistance or wear properties. Techniques include anodizing, passivation, or coating.

7. Quality Control:

   • Throughout the manufacturing process, rigorous quality control measures are implemented. This includes testing for chemical composition, mechanical properties, and non-destructive testing (NDT) to detect any defects.

Applications of Titanium Bars

Titanium bars are widely used across various industries due to their unique properties, such as high strength, lightweight, excellent corrosion resistance, and biocompatibility. In the aerospace sector, titanium bars are utilized in airframe structures, engine components, and fasteners, significantly enhancing fuel efficiency and flight performance. In the medical field, they are fabricated into orthopedic implants (like screws and plates) and dental implants, and also used for high-strength surgical instruments, making them suitable for long-term implantation in the body due to their biocompatibility.

In marine applications, titanium bars are employed in components such as propellers, shafts, and fittings for boats and submarines, providing resistance to saltwater corrosion. In the chemical processing industry, they are used in pipes and tanks for handling corrosive substances, greatly extending the lifespan of the equipment. Additionally, in the automotive industry, titanium bars are found in high-performance parts like exhaust systems and chassis components, contributing to weight reduction and improved fuel efficiency.

In sports equipment, they are used in high-end bicycles, golf clubs, and other gear where strength and lightweight are critical. Titanium bars also play a role in construction and architecture, serving as structural components and decorative elements, appreciated for their aesthetics and strength. In the energy sector, they are applied in offshore drilling equipment and pipelines in the oil and gas industry, as well as in components for wind turbines and solar panel mounts in renewable energy. Overall, the applications of titanium bars are expanding across multiple industries, and their potential continues to grow with advancements in technology.
