Place of Origin:
Xi'an,China
Brand Name:
FHH

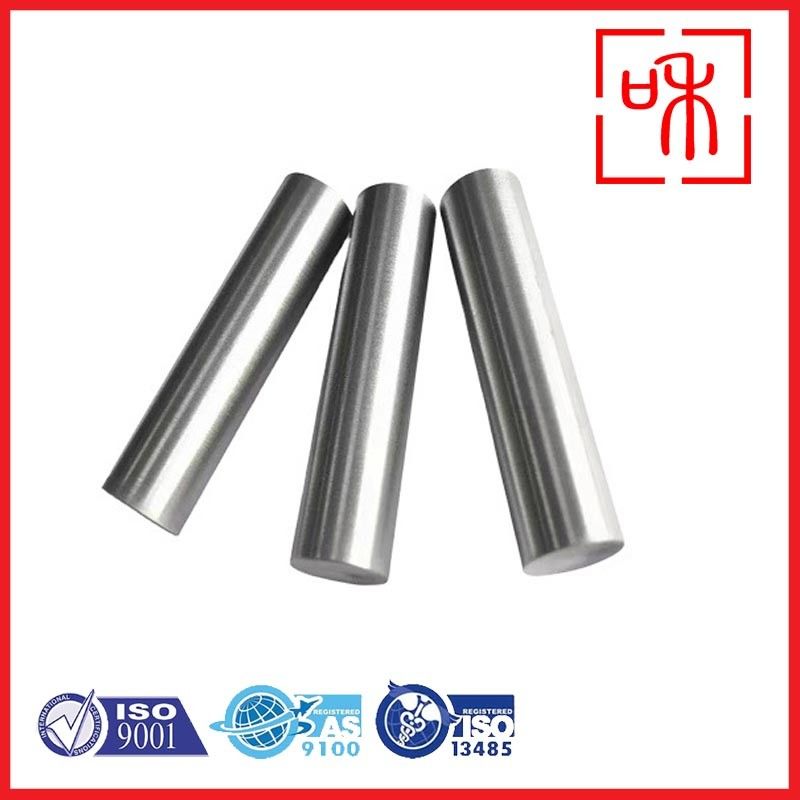

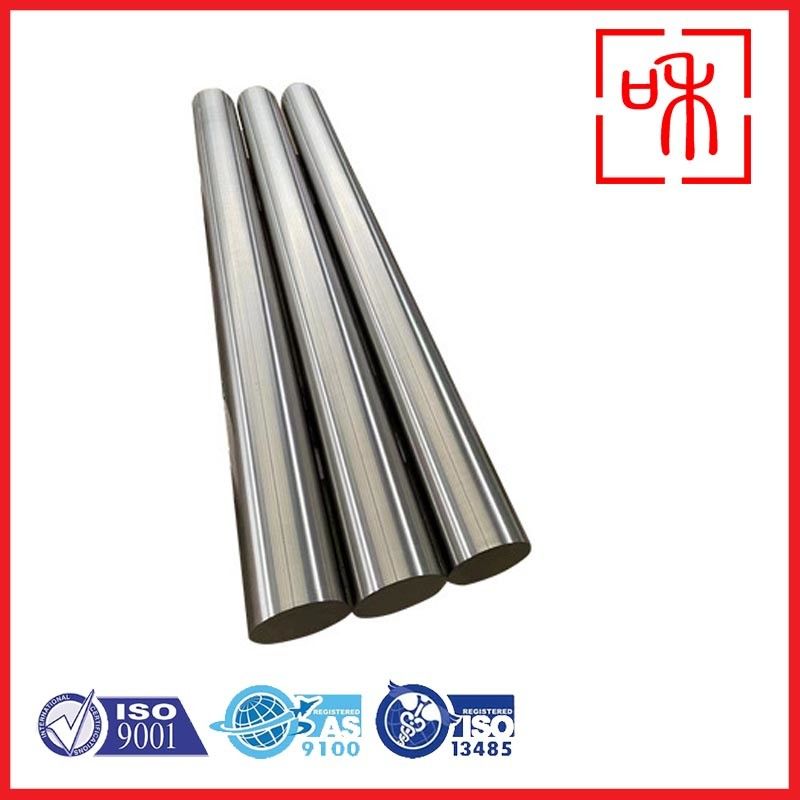

In modern medicine, choosing the right materials for implants and surgical instruments is crucial for the success of medical procedures. Titanium alloys are particularly valued for their outstanding properties, especially in applications where performance and safety are essential. Among these, the 10mm medical titanium alloy bar has gained prominence as a vital component in producing a variety of medical devices, including orthopedic implants, dental fixtures, and surgical instruments. This article explores the characteristics, advantages, and applications of 10mm titanium alloy bars, emphasizing their role in enhancing patient outcomes and advancing healthcare technology.
Titanium is celebrated for its exceptional strength-to-weight ratio, making it an ideal choice for medical uses that demand both durability and biocompatibility. The 10mm diameter provides an optimal balance between structural integrity and ease of handling, facilitating effective implantation and functionality in diverse medical devices. As the healthcare industry evolves and the demand for innovative solutions grows, understanding the unique properties and applications of these titanium alloy bars becomes increasingly important.
Chemical composition of medical tianium bar:
| Material Grade | Ti | Al | V | Nb | Fe, max | C, max | N, max | H, max | O, max |
| Gr1 | Bal | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | |
| Gr2 | Bal | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | |
| Gr3 | Bal | / | / | 0.30 | 0.08 | 0.05 | 0.015 | 0.35 | |
| Gr4 | Bal | / | / | 0.50 | 0.08 | 0.05 | 0.015 | 0.40 | |
| Gr5 ELI Ti-6Al-4VELI | Bal | 5.5~6.5 | 3.5~4.5 | 0.25 | 0.08 | 0.05 | 0.012 | 0.13 | |
| Ti-6Al-7Nb | Bal | 5.5-6.5 | / | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.20 |
Gr 5 titanium alloy bar / rod Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Gr 5 titanium bar / rod Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 |
Psi – 128000 , |
14 % |
Equivalent Grades for Gr 5
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 |
N56400 |
Titanium rods provide several advantages over traditional materials like steel and aluminum. Here are some key benefits:
Titanium is renowned for its biocompatibility, being non-toxic and non-reactive within the human body. This makes it an ideal material for medical implants, dental devices, and prosthetics, contributing to its growing use in healthcare due to its safety and effectiveness.
Titanium is naturally non-magnetic, making it ideal for medical applications such as MRI machines, where magnetic interference can affect performance. This characteristic is essential for ensuring the safety and precision of medical imaging.
Titanium has an impressive strength-to-weight ratio, surpassing steel in strength while being significantly lighter. This quality is especially advantageous in industries like aerospace and automotive, where minimizing weight is crucial.
The natural oxide layer on titanium provides outstanding corrosion resistance, allowing it to perform reliably in harsh environments, including marine and chemical settings, where other materials may fail quickly.
Titanium is highly resistant to wear and tear, often outlasting many other materials. This durability results in lower maintenance costs and longer service life across a range of applications, from industrial machinery to consumer products.
With its unique and attractive appearance, titanium is popular in jewelry and decorative items. Its lustrous finish and ability to adopt vibrant colors through anodization make it a sought-after choice for high-end accessories.
| Name | Material | Shape | Surface | Standards | Grade |
|---|---|---|---|---|---|
| Titanium Bar / Titanium Rod | Titanium Metal Or Alloy | Square, round, Hexagonal | Polished, Sandblasted, Anodized, black, picking Sand-blasting | ASTM B348, ASME SB348, ASTM F67, ASTM F136, AMS4928, AMS2631b | Gr1, Gr2, 3, 4, 5, 9, 12 |
Orthopedic implants include artificial joints, metal plates, orthopedic nails, metal orthopedic use rods, intramedullary nails, bone needles, and spinal fixation devices.
Heart medicine implants are also available, such as artificial heart valves, cardiac pacemakers, cardiac catheters and stents within blood vessels.
Ophthalmic implants consist of artificial crystals while dental implants include dental implants, traction nails, nail plant root canal, and internal fixation devices, among others.
Moreover, there are also available filling materials for breast filling, intraocular filling materials, and filling materials in orthopedics.
