Place of Origin:
Xi'an,China
Brand Name:
FHH

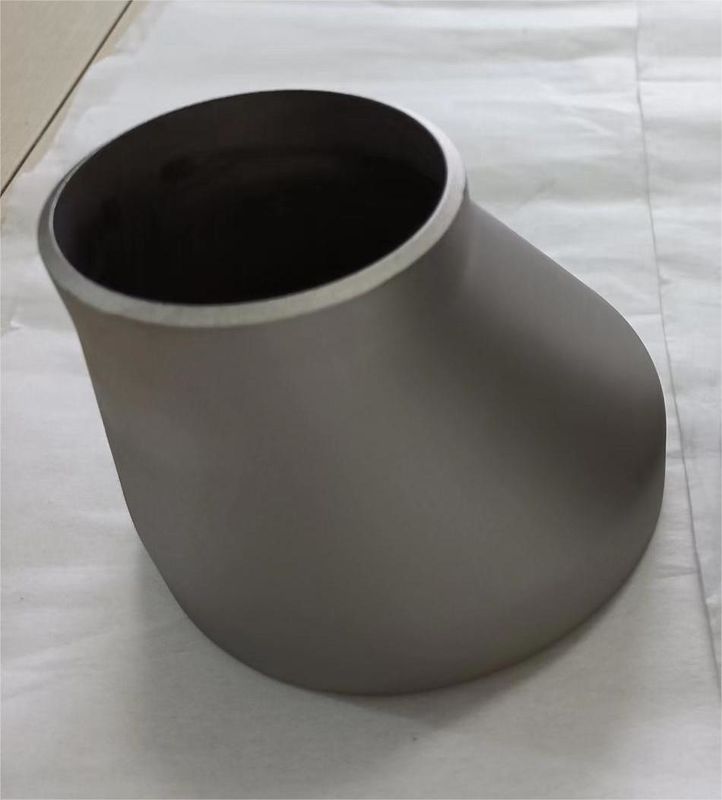

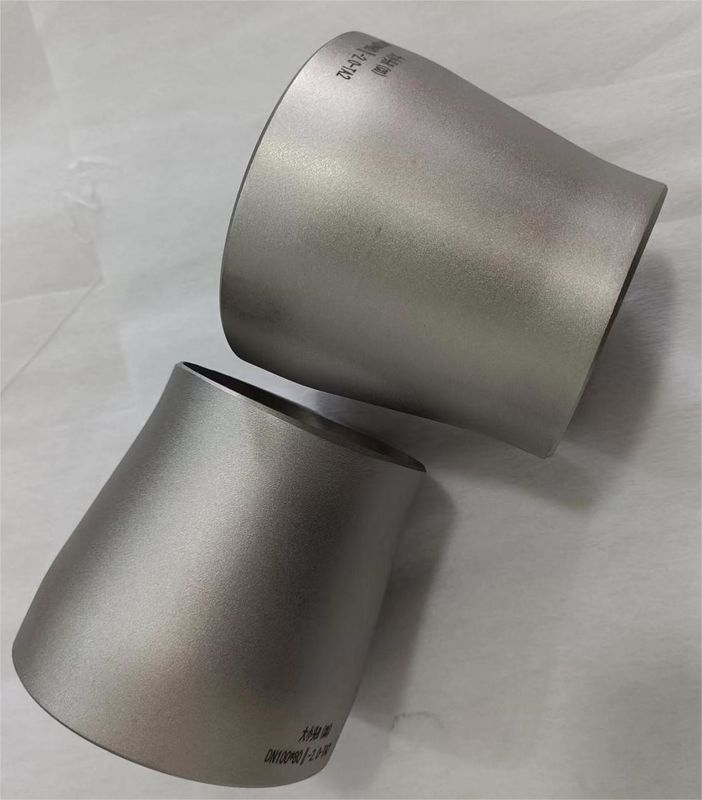

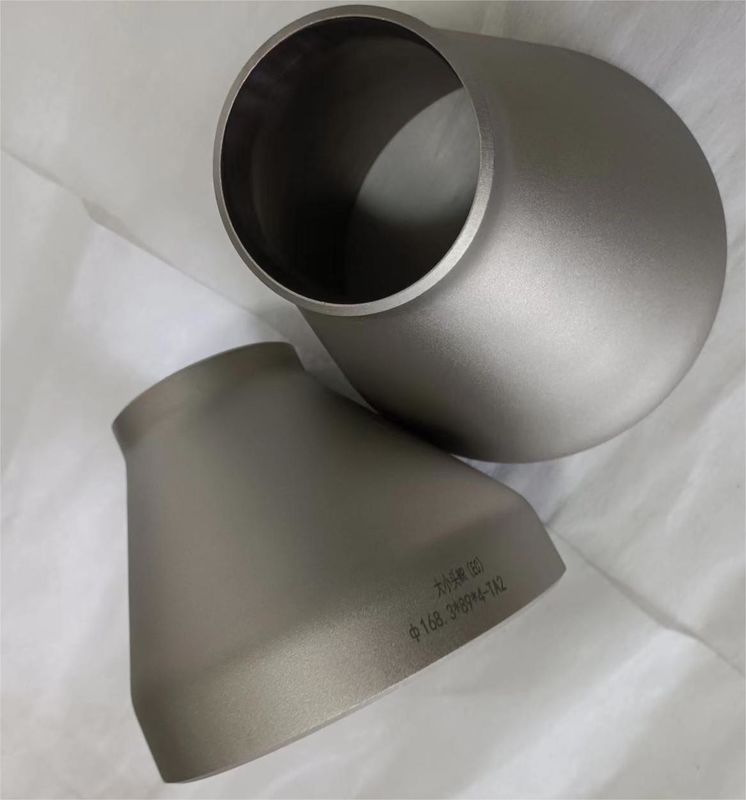

Eccentric reducing pipe is a pipe connection, its main role is to connect two different diameters of pipes, so that they are on the same axis
Spec: 1.DN50XDN32---100
DN80XDN65--150
DN100XDN80---200
DN150XDN125---250
DN200XDN150---300
DN250XDN200---300
DN300XDN250---400
Grade 2 Titanium Eccentric Reducer Date Sheets /Schedule 10S light N.P.S.
| Nominal pipe size | Outside diameter |
length |
||||||||||||||
| Large end | Small end | Large End | Small End | Approx Wt.in Lbs/kgs | ||||||||||||
| Inside Dia | Wall thick | Inside Dia | Wall Thick | |||||||||||||
| in | in | mm | in | mm | in | mm | in | mm | In | mm | In | mm | In | mm | lb | kg |
| 3/4x1/2 | 1.05 | 26.67 | 0.84 | 21.34 | 2 | 50.8 | 0.88 | 22.45 | 0.08 | 2.11 | 0.67 | 17.12 | 0.08 | 2.11 | 0.13 | 0.06 |
| 1x1/2 | 1.32 | 33.4 | 0.84 | 21.34 | 2 | 50.8 | 0.11 | 27.86 | 0.11 | 2.77 | 0.67 | 17.12 | 0.08 | 2.11 | 0.15 | 0.07 |
| 1x3/4 | 1.32 | 33.4 | 1.05 | 26.67 | 2 | 50.8 | 0.11 | 27.86 | 0.11 | 2.77 | 0.88 | 22.45 | 0.08 | 2.11 | 0.17 | 0.08 |
| 1-1/2x1/2 | 1.9 | 48.26 | 0.84 | 21.34 | 2.5 | 63.5 | 1.68 | 42.72 | 0.11 | 2.77 | 0.67 | 17.12 | 0.08 | 2.11 | 0.21 | 0.1 |
| 1-1/2x3/4 | 1.9 | 48.26 | 1.05 | 26.67 | 2.5 | 63.5 | 1.68 | 42.72 | 0.11 | 2.77 | 0.88 | 22.45 | 0.08 | 2.11 | 0.22 | 0.1 |
| 1-1/2x1 | 1.9 | 48.26 | 1.32 | 33.4 | 2.5 | 63.5 | 1.68 | 42.72 | 0.11 | 2.77 | 1.1 | 27.86 | 0.11 | 2.77 | 0.25 | 0.11 |
| 2x3/4 | 2.38 | 60.33 | 1.05 | 26.67 | 3 | 76.2 | 2.16 | 54.79 | 0.11 | 2.77 | 0.88 | 22.45 | 0.08 | 2.11 | 0.32 | 0.15 |
| 2x1 | 2.38 | 60.33 | 1.32 | 33.4 | 3 | 76.2 | 2.16 | 54.79 | 0.11 | 2.77 | 1.1 | 27.86 | 0.11 | 2.77 | 0.35 | 0.16 |
| 2x1-1/2 | 2.38 | 60.33 | 1.9 | 48.26 | 3 | 76.2 | 2.16 | 54.79 | 0.11 | 2.77 | 1.68 | 42.72 | 0.11 | 2.77 | 0.39 | 0.18 |
| 3x1 | 3.5 | 88.9 | 1.32 | 33.4 | 3.5 | 88.9 | 3.26 | 82.8 | 0.12 | 3.05 | 1.1 | 27.86 | 0.11 | 2.77 | 0.59 | 0.27 |
| 3x2 | 3.5 | 88.9 | 2.38 | 60.33 | 3.5 | 88.9 | 3.26 | 82.8 | 0.12 | 3.05 | 2.16 | 54.79 | 0.11 | 2.77 | 0.69 | 0.31 |
| 4x2 | 4.5 | 114.3 | 2.38 | 60.33 | 4 | 101.6 | 4.26 | 108.2 | 0.12 | 3.05 | 2.16 | 54.79 | 0.11 | 2.77 | 0.99 | 0.45 |
| 4x3 | 4.5 | 114.3 | 3.5 | 88.9 | 4 | 101.6 | 4.26 | 108.2 | 0.12 | 3.05 | 3.26 | 82.8 | 0.12 | 3.05 | 1.1 | 0.5 |
| 6x3 | 6.63 | 168.28 | 3.5 | 88.9 | 5.5 | 139.7 | 6.36 | 161.47 | 0.13 | 3.4 | 3.26 | 82.8 | 0.12 | 3.05 | 2.29 | 1.04 |
| 6x4 | 6.63 | 168.28 | 4.5 | 114.3 | 5.5 | 139.7 | 6.36 | 161.47 | 0.13 | 3.4 | 4.26 | 108.2 | 0.12 | 3.05 | 2.47 | 1.12 |
| 8x4 | 8.63 | 219.08 | 4.5 | 114.3 | 6 | 152.4 | 8.33 | 211.56 | 0.15 | 3.76 | 4.26 | 108.2 | 0.12 | 3.05 | 3.8 | 1.72 |
| 8x6 | 8.63 | 219.08 | 6.63 | 168.28 | 6 | 152.4 | 8.33 | 211.56 | 0.15 | 3.76 | 6.36 | 161.47 | 0.13 | 3.4 | 4.03 | 1.83 |
| 10x6 | 10.75 | 273.05 | 6.63 | 168.28 | 7 | 177.8 | 10.42 | 264.67 | 0.17 | 4.19 | 6.36 | 161.47 | 0.13 | 3.4 | 6.31 | 2.86 |
| 10x8 | 10.75 | 273.05 | 6.63 | 168.28 | 7 | 177.8 | 10.42 | 264.67 | 0.17 | 4.19 | 8.33 | 211.56 | 0.15 | 3.76 | 6.55 | 2.97 |
| 12x6 | 12.75 | 323.85 | 6.63 | 168.28 | 8 | 203.2 | 12.39 | 314.71 | 0.18 | 4.57 | 6.36 | 161.47 | 0.13 | 3.4 | 9.37 | 4.25 |
| 12x8 | 12.75 | 323.85 | 8.63 | 219.08 | 8 | 203.2 | 12.39 | 314.71 | 0.18 | 4.57 | 8.36 | 211.56 | 0.15 | 3.76 | 9.67 | 4.39 |
| 12x10 | 12.75 | 323.85 | 10.75 | 273.05 | 8 | 203.2 | 12.39 | 314.71 | 0.18 | 4.57 | 10.42 | 264.67 | 0.17 | 4.19 | 10 | 4.54 |
Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.
Send your inquiry directly to us
