Place of Origin:
Xi'an,China
Brand Name:
FHH

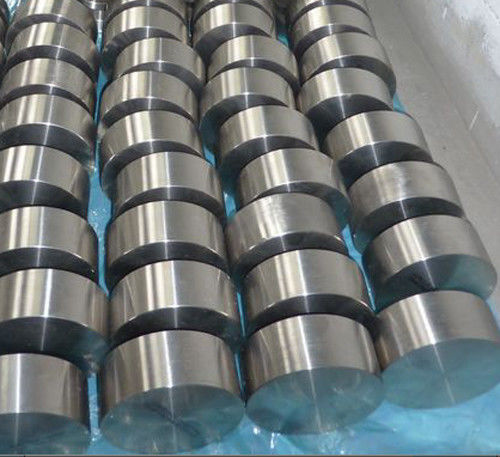

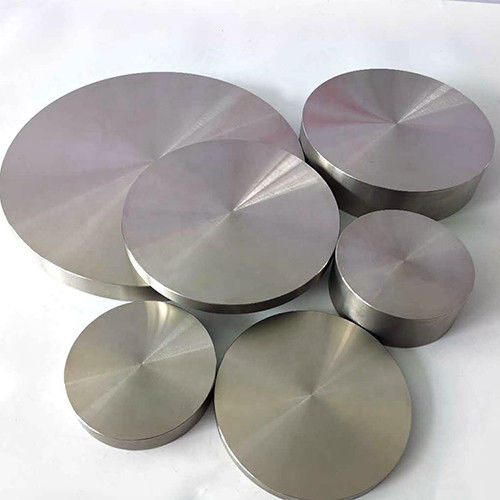

Titanium Bar / Titanium Rod Durable and Reliable for disc
Our titanium products are well known for having high tensile strength,being lightweight,and providing superior corrosion resistance. This makes titanium alloy products more preferable over other metals.
Not surprisingly,titanium is widely seen as a light-weighting solution.It is now commonly used in motorsport applications,and our titanium bar products are no exception.
The grades of Titanium bar are ASTM B348, ASME SB348, ASTM F67, ASTM F136, AMS4928, and AMS2631b, including Gr1, Gr2, 3, 4, 5, 9, 12, etc.
The shape of the titanium bar includes square, round, and hexagonal. Besides, the titanium bar also have various surface finishes, such as black, picking sand-blasting, polished, sandblasted, anodized and machining.
| Grade | Name | Shape | Material | Suface | Standards |
|---|---|---|---|---|---|
| Gr1 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr2 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr3 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr4 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr5 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr9 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| Gr12 | Titanium Bar/Titanium Rod | Square,Round,Hexagonal | Titanium Metal or Alloy | Polished,Sandblasted,Anodized,Black,Picking Sand-blasting | ASTM B348,ASME SB348,ASTM F67,ASTM F136,AMS4928,AMS2631b |
| material | gr1,gr2,gr3,gr4,gr5,gr6,gr7,gr12,tc6(A-4 Ti-8Al-1Mo-1V) ,tc11(AB-5 Ti-3Al-2.5V ) |
| Standard | ASTM B348/B381,F67,F136,AMS 4928 |
| specification |
dia (45-100) mm * height (10-40)mm dia(100-300) mm * height (12-100)mm |
| The surface state | brightness (machining or polishing) |
| Tensile strength | 895 mpa |
| Yield strength | minimum 825 mpa |
| Hardness range | 261-351HB |
| Application |
1. Fasteners manufacturing 2. Medical implants 3. The machining parts production 4. Oil field of chemical industry |
Orthopedic implants comprise artificial joints, metal plate, orthopedic nails, metal orthopedic use rods, intramedullary nail, bone needles, and spinal fixation devices. These implants can support and enhance injured or weakened bones and joints and are often used as a replacement when the body's natural material no longer functions.
Heart medicine implants are essential components in the treatment of cardiac conditions. These implants can include artificial heart valves, cardiac pacemakers, cardiac catheters and stents within blood vessels. These implants allow for the regulated flow of essential nutrients around the body as well as helping the body control regular rhythm.
Ophthalmic implants are usually supplied in the form of artificial crystal which restore vision to those with impaired visual acuity. These implants are usually designed to correct vision defects such as presbyopia and cataracts.
Dental implants are widely considered to be a leading form of cosmetic dentistry, with Dental Implant, traction nails, nail plant root canal, and internal fixation devices. These products can restore beauty to a smile as well as strengthening an existing denture.
Finally, Filling Materials are used to correct a variety of different medical conditions such as breast fillings, intraocular filling materials, and filling materials in orthopedics. These products can often be used in conjunction with other medical implants to form a highly effective medical treatment programme.
Titanium bars are typically packaged in strong and durable cardboard boxes with suitable inner packaging materials such as bubble wrap to prevent damage during transportation. The packaging is designed to meet the requirements of shippers and protect the bars from damage.
The bars are shipped by air, sea or land depending on the customer’s preference and location. All shipments are tracked to ensure timely delivery and provide customers with updates on their orders. For sea shipments, the bars are packed in containers that meet international standards for safe transport.
Titanium bars are shipped with all the necessary documents such as certificates of origin, packing list, and invoices. The documents are provided in both electronic and hard copy formats for the customer’s convenience.
Q: What is the brand name of Titanium Bars?
A: The brand name of Titanium Bars is FHH.
Q: Where is the place of origin of Titanium Bars?
A: The place of origin of Titanium Bars is Xi'an,China.
Q: What is the minimum order quantity of Titanium Bars?
A: The minimum order quantity of Titanium Bars is 200kgs.
Q: How are the goods of Titanium Bars packed?
A: The goods of Titanium Bars are packed by seaworth shipment materials.
Q: How long is the delivery time of Titanium Bars?
A: The delivery time of Titanium Bars is 5--8days.
