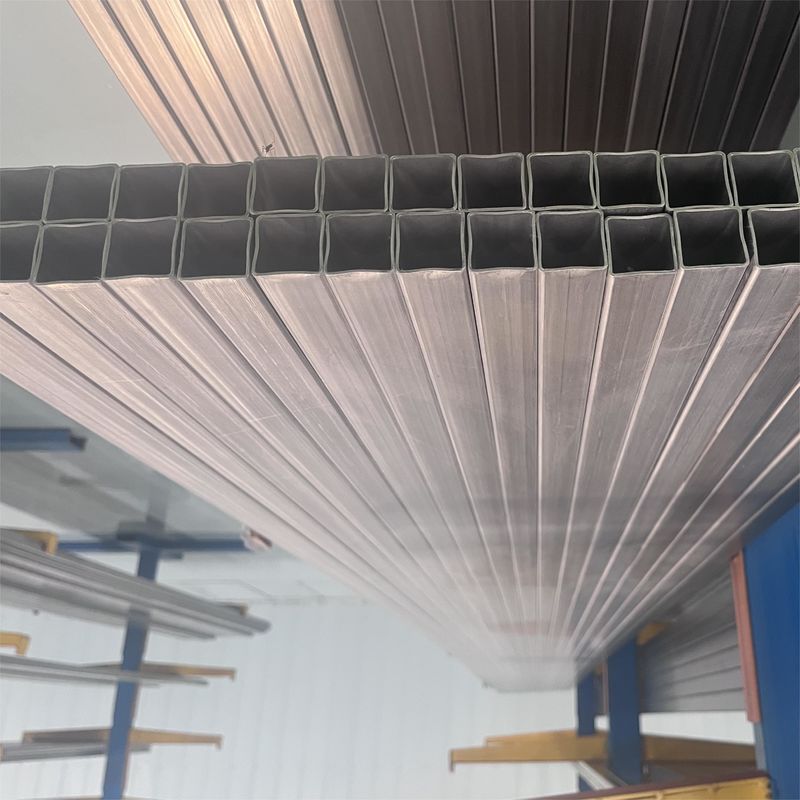

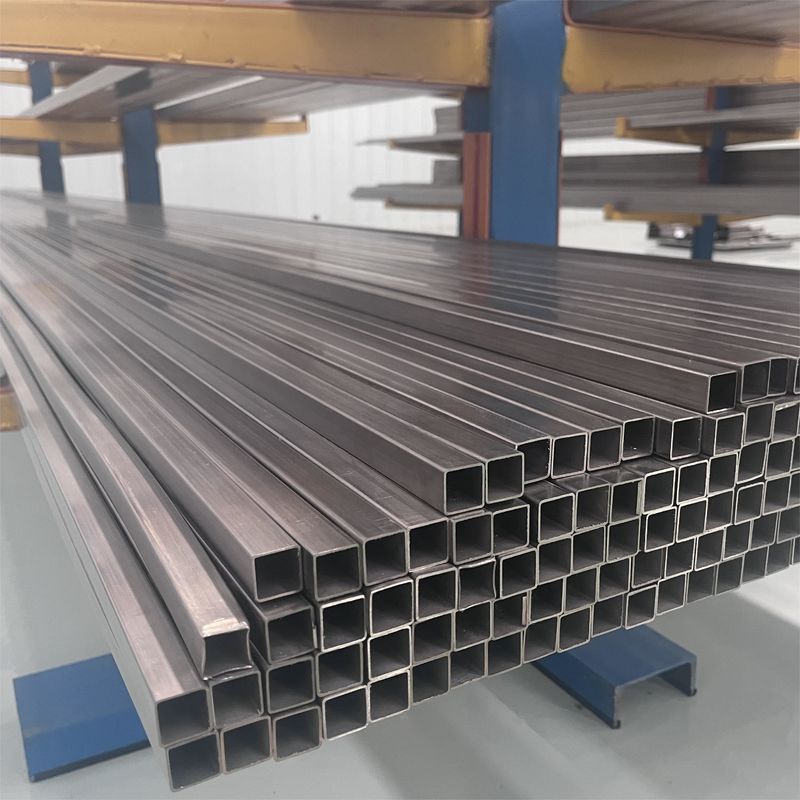

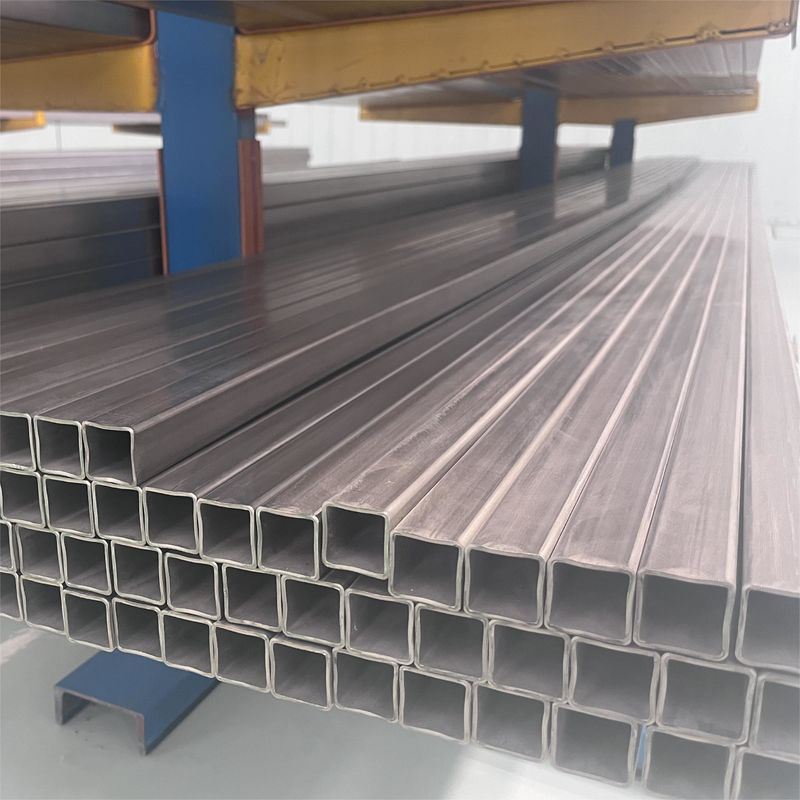

Industrial Grade Titanium Square Tube for Various Applications
Titanium tube has become a popular choice for many people due to its weight advantages and superior mechanical properties. Its lightweight makes it suitable for a wide range of applications, from heat exchange equipment such as tube heat exchangers, coiled heat exchangers, snake tube heat exchangers, condensers, evaporators and conveying pipes, to petroleum pipelines, transportation piping and other various usages.
Titanium tubes are especially beneficial in the nuclear power industry as many nuclear power plants have used them as their standard tubes for their units.
| Serial No. | production |
Specification20 W*H*L(mm) |
Thickness(mm) |
Kgs/pcs (approximate) |
remarks |
|
1 |
Square tube |
20X20X6000
|
0.8 | 1.67 |
Seamless tube |
| 1 | 2.07 | ||||
| 1.5 | 3.64 | ||||
| 2 | 3.32 | ||||
|
2 |
Square tube
|
30X30X6000 |
1 | 3.32 |
Seamless tube |
| 1.2 | 3.75 | ||||
| 1.5 | 4.65 | ||||
| 2 | 6.65 | ||||
| 1.5 | 6.25 | ||||
| 2 | 8.23 | ||||
| 3 | 12.01 | ||||
|
3 |
Square tube
|
40X40X6000 |
1 | 4.23 |
Seamless tube |
| 1.5 | 6.28 | ||||
| 2 | 8.29 | ||||
| 3 | 12.18 | ||||
|
4 |
Square tube
|
50X50X6000 |
1.5 | 7.84 |
Seamless tube |
| 2 | 10.36 | ||||
| 3 | 15.29 | ||||
| 4 | 20.05 | ||||
|
5 |
Square tube
|
60X60X6000 |
1.5 | 9.49 |
Seamless tube |
| 2 | 12.57 | ||||
| 3 | 18.6 | ||||
| 4 | 24.46 | ||||
|
6 |
Square tube
|
70X70X6000 |
2 | 14.78 |
Seamless tube |
| 3 | 21.91 | ||||
| 4 | 28.88 | ||||
| 5 | 35.68 | ||||
| 4 | 30.87 | ||||
|
7 |
Square tube |
80X80X6000 |
3 | 25.23 |
Welded tube |
| 4 | 33.30 | ||||
| 5 | 41.2 | ||||
| Materials | Gr1,Gr2,Gr3,Gr4,Gr5,Gr6,Gr7,Gr9 | ||||
| Standards |
GB/T706-2016,GB/T37520-2019,GB/T41750-2022,N/HL 001-2021,N/HL 002-2021,ASTM F67,AMS4928,ASTM F136,ASTM B348,BT1-0,TP270,TP550,TP450 etc.
|
||||
Among the characters that stainless steel possesses, Safety, Health, and Environmental Protection are of top priority.
In addition, the excellent resistance to corrosion of this type of steel is highly appreciated. Furthermore, its lightweight makes stainless steel a popular choice among customers. In terms of thickness and out diameter, stainless steel is a versatile product. Moreover, it enables easy cutting with no adverse reactions, and offers huge deformation and heat-resistance. Lastly, stainless steel has a good tensile strength and also a flexibility better than most other metals.
| Parameter | Value |
|---|---|
| Application | Industrial, Aerospace, Automotive, Medical |
| Standard | ASTM B338,ASTM B337,ASTM B861,ASTM B862,GOST 22897,JIS HE4631 |
| Name | Titanium Tube |
| Outer Diameter | Customized |
| Grade | GR1, GR2, GR3, GR5, GR7, GR9, GR11, GR12, GR16, GR17 |
| Matierials | Titanium Or Titanium Alloy |
| Shape | Tube |
| Packing | Wooden Case |
| Thickness | Customized |
| Type | Titanium seamless pipe, seamless titanium alloy pipe, titanium square tube, titanium straight pipe, titanium u bend pipe, titanium elbow pipe, titanium round pipe, titanium tube, titanium welded pipe |
Brand Name: FHH
Place of Origin: Xi'an,China
Minimum Order Quantity: 200kgs
Packaging Details: all goods are packed by seaworth shipment materials
Delivery Time: 5--8days
Payment Terms: L/C, D/P, T/T
Supply Ability: 200mt per month
Outer Diameter: Customized
Standard: ASTM B338,ASTM B337,ASTM B861,ASTM B862,GOST 22897,JIS HE4631
Grade: GR1, GR2, GR3, GR5, GR7, GR9, GR11, GR12, GR16, GR17
Application: Industrial, Aerospace, Automotive, Medical
Packing: Wooden Case
Titanium Pipe from FHH is an ideal choice for those seeking high performance, strength and reliability. FHH provides titanium square tube, titanium seamless pipe, titanium square tube and titanium alloy pipes that meet ASTM B338,ASTM B337,ASTM B861,ASTM B862,GOST 22897,JIS HE4631 standard. This titanium pipe is available in grade GR1, GR2, GR3, GR5, GR7, GR9, GR11, GR12, GR16, GR17 and with customized outer diameter. It is widely used in Industrial, Aerospace, Automotive and Medical industries, and packed with wooden case. FHH offers minimum order quantity of 200kgs and delivery time of 5-8 days. Supply ability of up to 200mt per month. Payment terms include L/C, D/P, T/T.
Titanium Pipe provides technical support and service to help its customers find the right solution for their needs. Our technical staff is available 24/7 to answer questions and provide assistance. We provide training and guidance, as well as an online knowledge base that contains helpful articles and videos. We also offer customer support via email, phone, and live chat. Our team is dedicated to providing the best customer experience possible.
