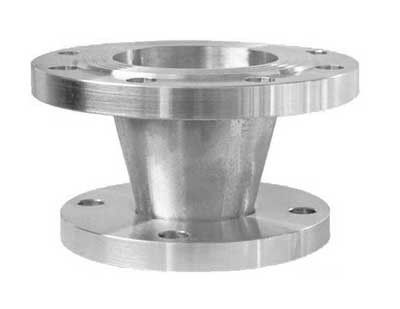

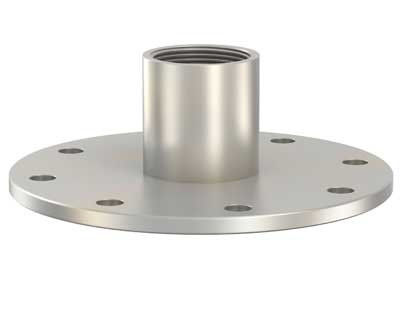

Piping System Titanium Flange with Reducing Type for Industrial Applications
Fenghuihe is leading Titanium Reducing Flange Manufacturers in China, designed for when there is a change in the pipe size. The predominate flange (dimensions) matching the larger pipe size (NPT) but having a smaller bore matching the smaller pipe size (NPT). These ASME B16.47 Reducing flanges normally come in blind, slip-on, threaded and weld neck flanges.
ASME B16.5 Reducing Flanges are available in all pressure classes and provide a good alternative to connecting two different sizes of pipe. This type of reducing flange should not be used if an abrupt transition would create unwanted turbulence, such as at a pump.Reducing Flanges are mostly used where application need fittings to different sizes.A reducing flange b16.5 consists of a flange with one specified diameter having a bore of a different and smaller, diameter.
The standards that are used are ASME and EN. All products have a wide range of applications and can be made with a variety of materials such as Gr1, Gr2, Gr4, and Gr5, etc. All dimensions are tailored to customer requests. Processing methods include impact molding, forging process and rollers methods. The surfaces available for the products are Forging surface, rolling surface, polishing surface. The categories available are integral titanium flanges, butt welded titanium flanges, looping titanium flanges and threaded titanium flanges. The connection parts are container titanium flange and tube titanium flange.
| Name | Specification |
|---|---|
| Titanium Flange | Application: Piping System, Etc. Size: Customized Package: Wooden Case, Pallet, Etc. Grade: Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr9 Etc. Connection Type: Welding, Threaded, Etc. Process: Impact Molding,Forging Process,rollers Methord Materials: Titanium Metal Or Titanium Alloy |
| NPS | DIAMETER | THICKNESS | DIA. | WELDING | MIN. | MIN. | MIN. | NECK | WELDING | JOINT | |||
| DN | O | T | A | B | C | D | E | F | G | H | |||
| 1/2 | 5.25 | 1.19 | 1.38 | 0.88 | .90 | 0.93 | 2.88 | 1.56 | 1.56 | ||||
| 15 | 133 | 30.5 | 34.9 | 22.2 | 22.9 | 23.5 | 73.0 | 40 | 40 | ||||
| 3/4 | 5.50 | 1.25 | 1.69 | 1.09 | 1.11 | 1.14 | 3.12 | 1.69 | 1.69 | ||||
| 20 | 140 | 32.0 | 42.9 | 27.8 | 28.2 | 29.0 | 79.4 | 43 | 43 | ||||
| 1 | 6.25 | 1.38 | 2.00 | 1.36 | 1.38 | 1.41 | 3.50 | 1.88 | 1.88 | ||||
| 25 | 159 | 35.0 | 50.8 | 34.5 | 34.9 | 36.0 | 88.9 | 48 | 48 | ||||
| 1 1/4 | 7.25 | 1.50 | 2.50 | 1.70 | 1.72 | 1.75 | 3.75 | 2.06 | 2.06 | ||||
| 32 | 184 | 38.5 | 63.5 | 43.3 | 43.7 | 44.5 | 95.2 | 52 | 52 | ||||
| 1 1/2 | 8.00 | 1.75 | 2.88 | 1.95 | 1.97 | 1.99 | 4.38 | 2.38 | 2.38 | ||||
| 40 | 203 | 44.5 | 73.0 | 49.6 | 50.0 | 50.5 | 111.4 | 60 | 60 | ||||
| 2 | 9.25 | 2.00 | 3.62 | To be | 2.44 | 2.46 | 2.50 | 5.00 | 2.75 | 2.75 | |||
| 50 | 235 | 51.0 | 92.1 | 61.9 | 62.5 | 63.5 | 127.0 | 70 | 70 | ||||
| 2 1/2 | 10.50 | 2.25 | 4.12 | specified | 2.94 | 2.97 | 3.00 | 5.62 | 3.12 | 3.12 | |||
| 65 | 267 | 57.5 | 104.8 | 74.6 | 75.4 | 76 | 142.9 | 79 | 79 | ||||
| 3 | 12.00 | 2.62 | 5.00 | by | 3.57 | 3.60 | 3.63 | 6.62 | 3.62 | 3.62 | |||
| 80 | 305 | 67.0 | 127.0 | 90.7 | 91.4 | 92 | 168.2 | 92 | 92 | ||||
| 4 | 14.00 | 3.00 | 6.19 | purchaser | 4.57 | 4.60 | 4.63 | 7.50 | 4.25 | 4.25 | |||
| 100 | 356 | 76.5 | 157.2 | 116.1 | 116.8 | 118 | 190.5 | 108 | 108 | ||||
| 5 | 16.50 | 3.62 | 7.31 | 5.66 | 5.69 | 5.69 | 9.00 | 5.12 | 5.12 | ||||
| 125 | 419 | 92.5 | 185.7 | 143.7 | 144.5 | 145 | 228.6 | 130 | 130 | ||||
| 6 | 19.00 | 4.25 | 8.50 | 6.72 | 6.75 | 6.75 | 10.75 | 6.0 | 6.0 | ||||
| 150 | 483 | 108.0 | 215.9 | 170.7 | 171.4 | 171 | 273.0 | 152 | 152 | ||||
Titanium flanges are widely used in industries around the world. They are particularly suitable for use in chemical processing, oil and gas, power generation, desalination plants, marine, aerospace, and medical device fields due to their ability to handle corrosive fluids, high-temperature environments, and weight-sensitive structures.
Titanium flanges are corrosion and high-temperature resistant, which makes them extremely suitable for applications in corrosive and high-temperature environments. Additionally, their superior strength-to-weight ratio makes them ideal for weight-sensitive structures, such as aircraft and medical devices. Their versatility makes them a popular choice for many industries.
Titanium Flange Packaging and Shipping:
Titanium Flange products will be packaged in sturdy cardboard boxes to prevent damage during shipping. All products will be shipped via a trusted third-party carrier and will be tracked to ensure delivery. Shipping fees will be determined at checkout.
