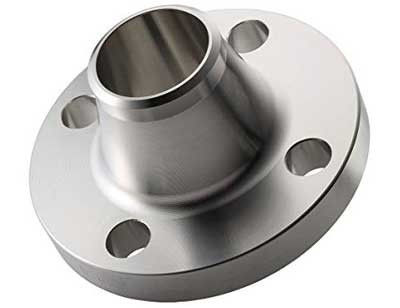

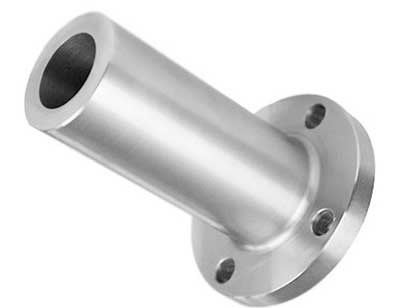

Corrosion-resistant Titanium Flange for Long-lasting Performance
The integral flange is a connection method of the flange, and it is a kind of steel pipe flange with neck butt welding. In the flange type, an "IF" is used to indicate it. The production process is generally casting.
It has the advantages of high pressure resistance, easy installation, and long service life. Two raceconditions, it can also be used in flammable, explosive, high and extremely hazardous use conditions, and you can choose the form of the sealing surface of the convex and concave surface (MFM) and the mortise and groove surface (TG) in addition to the RF surface.
Integral flange can resist external impact and prevent potential leakage risks. Therefore, it is widely used in the area of high pressure pipelines.
Standards are an important part of product manufacturing and safety. The most commonly used standards for titanium flanges are ASME and EN.
Titanium flanges are widely used in a large range of industries, including petroleum, chemical industry, metallurgy, shipbuilding, urban construction water heating, military fire protection, environmental protection, medicine, alkali, electroplating, paper making, aerospace, electric power and more.
These flanges can be made to any dimensions as requested by the customer. Titanium is very versatile and can be made with a variety of materials, such as Gr1, Gr2, Gr4, Gr5, etc. Processing methods also vary and include impact molding, forging process, and rollers. The surface finish is also freely adjustable and can be made into forging surface, rolling surface, polishing surface, or other types.
Titanium flanges can be divided into structural forms, like integral titanium flanges, butt welded titanium flanges, looping titanium flanges and threaded titanium flanges. As for connecting parts, they can be divided into container titanium flange, tube titanium flange, valve titanium flange and more.
| Property | Value |
|---|---|
| Name | Titanium Flange |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr9 Etc. |
| Package | Wooden Case, Pallet, Etc. |
| Connection Type | Welding, Threaded, Etc. |
| Materials | Titanium Metal Or Titanium Alloy |
| Process | Impact Molding, Forging Process, Rollers Methord |
| Application | Piping System, Etc. |
| Size | Customized |
| Size in Inch | Size in mm | Outer Diameter | Flange Thickness | Hub OD | Weld Neck OD | Welding Neck Length | Bore | RF Diameter | RF Height | PCD | Weld Face |
| A | B | C | D | E | F | G | H | I | J | ||
| 1/2 | 15 | 90 | 9.6 | 30 | 21.3 | 46 | Refer Note | 34.9 | 2 | 60.3 | 1.6 |
| 3/4 | 20 | 100 | 11.2 | 38 | 26.7 | 51 | 42.9 | 2 | 69.9 | 1.6 | |
| 1 | 25 | 110 | 12.7 | 49 | 33.4 | 54 | 50.8 | 2 | 79.4 | 1.6 | |
| 1 1/4 | 32 | 115 | 14.3 | 59 | 42.2 | 56 | 63.5 | 2 | 88.9 | 1.6 | |
| 1 1/2 | 40 | 125 | 15.9 | 65 | 48.3 | 60 | 73 | 2 | 98.4 | 1.6 | |
| 2 | 50 | 150 | 17.5 | 78 | 60.3 | 62 | 92.1 | 2 | 120.7 | 1.6 | |
| 2 1/2 | 65 | 180 | 20.7 | 90 | 73 | 68 | 104.8 | 2 | 139.7 | 1.6 | |
| 3 | 80 | 190 | 22.3 | 108 | 88.9 | 68 | 127 | 2 | 152.4 | 1.6 | |
| 3 1/2 | 90 | 215 | 22.3 | 122 | 101.6 | 70 | 139.7 | 2 | 177.8 | 1.6 | |
| 4 | 100 | 230 | 22.3 | 135 | 114.3 | 75 | 157.2 | 2 | 190.5 | 1.6 | |
| 5 | 125 | 255 | 22.3 | 164 | 141.3 | 87 | 185.7 | 2 | 215.9 | 1.6 | |
| 6 | 150 | 280 | 23.9 | 192 | 168.3 | 87 | 215.9 | 2 | 241.3 | 1.6 | |
| 8 | 200 | 345 | 27 | 246 | 219.1 | 100 | 269.9 | 2 | 298.5 | 1.6 | |
| 10 | 250 | 405 | 28.6 | 305 | 273 | 100 | 323.8 | 2 | 362 | 1.6 | |
| 12 | 300 | 485 | 30.2 | 365 | 323.8 | 113 | 381 | 2 | 431.8 | 1.6 | |
| 14 | 350 | 535 | 33.4 | 400 | 355.6 | 125 | 412.8 | 2 | 476.3 | 1.6 | |
| 16 | 400 | 595 | 35 | 457 | 406.4 | 125 | 469.9 | 2 | 539.8 | 1.6 | |
| 18 | 450 | 635 | 38.1 | 505 | 457.2 | 138 | 533.4 | 2 | 577.9 | 1.6 | |
| 20 | 500 | 700 | 41.3 | 559 | 508 | 143 | 584.2 | 2 | 635 | 1.6 | |
| 24 | 600 | 815 | 46.1 | 663 | 610 | 151 | 692.2 | 2 | 749.3 | 1.6 |
Note: Welding Neck bore is derived from the pipe schedule
Titanium flanges are widely used in a variety of industries around the world, including chemical processing, oil and gas, power generation, desalination plants, marine, aerospace, and even medical devices.
They are best suited for applications in corrosive fluids, high-temperature environments, and weight-sensitive structures due to their robust and lightweight characteristics.
Titanium Flange Packaging and Shipping:
Titanium flanges are shipped in cardboard boxes for protection during transit. The boxes are sealed using waterproof adhesive tape. Inside each box, the flanges are secured with bubble wrap to prevent movement and further protect them from damage.
