Place of Origin:
Xi'an,China
Brand Name:
FHH
Dependable Titanium Bend with 8D Radius for Industrial Pipelines
Titanium Grade: Gr1,Gr2, Gr5,Gr7, Gr12.
Size: 22.5°,30°,45°, 90°, 180° or 1/2″~48″.
Radius:3D,4D,5D,6D,8D,10D.
Standard: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B.
Service: All goods can be customized according to the drawing processing.
Connection: Butt Welding.
Packing: Plywood pallets/ wooden case or as per your request and specification.
Technique: Welded, Forged, Rolled, Seamless.
Inspection: X-ray detection(RT), Surface penetrant inspection (PT), Thickness detection (UT).

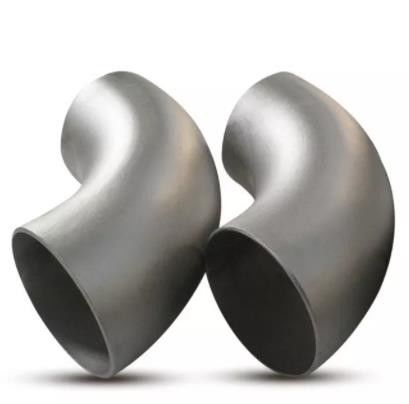

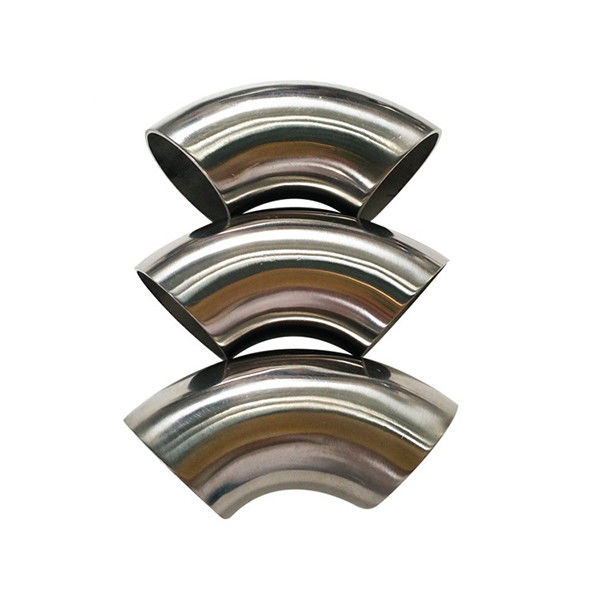

Titanium elbows are a great solution for tough, high-temperature and corrosive environments. They can be produced in three different angles: 45, 90 and 180 degrees. These angles are important when changing the direction of the fluid flow, as the pressure experienced by the fluid will vary depending on the angle.
To ensure quality and reliability, titanium elbows need to conform to ASME B16.9 standard. This standard is used for producing and testing welded butt-fittings. All titanium elbows that follow this standard will undergo strict testing to verify that they are able to handle the pressure and temperature of different applications.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
| Dimension | Connection | Technology | Standards | Material | Width |
|---|---|---|---|---|---|
| 22.5°,30°,45°, 90°, 180° Or 1/2″~48″ | Butt Welding | Welded, Forged, Rolled, Seamless | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B | Titanium Metal / Titanium Alloy | Customized |
Titanium elbow is available in both seamless and welded construction, depending on end-use requirements. Seamless titanium elbow, for example, has a smoother surface and is capable of withstanding high pressure. This makes it suitable for critical applications. Alternatively, welded titanium elbow is preferred in low-pressure applications where cost is a key factor.
At TSM, our manufacturing process utilizes a variety of titanium grades for our elbows. Each grade possesses unique properties, and with our expertise, we are able to help clients choose the best grade for their application.
Titanium Bars provides technical support and services that include:
Q1: What is the brand name of Titanium Bars?
A1: The brand name of Titanium Bars is FHH.
Q2: Where is the place of origin of Titanium Bars?
A2: The place of origin of Titanium Bars is Xi'an, China.
Q3: What is the minimum order quantity for Titanium Bars?
A3: The minimum order quantity for Titanium Bars is 200kgs.
Q4: What kind of packaging is used for Titanium Bars?
A4: All goods are packed by seaworth shipment materials.
Q5: How long does it take for the delivery of Titanium Bars?
A5: The delivery of Titanium Bars takes 5-8 days.
