Place of Origin:
Xi'an,China
Brand Name:
FHH
Grade Gr1 Titanium Bars for Tailored Butt Welding Connection 3D Radius Provided
Titanium Grade includes Gr1,Gr2, Gr5, Gr7 and Gr12.
Our size ranges from 22.5°,30°,45°, 90°, 180° to 1/2″~48″.
Radius include 3D,4D,5D,6D,8D, and 10D.
The standards we certify are ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A and MSS-SP-43 Type B.
We provide customize service according to your drawing and processing.
The connection we use is Butt Welding.
The product can be packed by Plywood pallets/ wooden case or as per your request and specification.
The technique we using include Welded, Forged, Rolled and Seamless.
Inspection procedures include X-ray detection(RT), Surface penetrant inspection (PT) and Hydrostatic test or any other testing methods according to your requirement.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
| Features | Specifications |
|---|---|
| Name | Titanium Elbows/Bends |
| Dimension | 22.5°,30°,45°, 90°, 180° Or 1/2"~48" |
| Width | Customized |
| Technology | Welded, Forged, Rolled, Seamless |
| Connection | Butt Welding |
| Standards | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B |
| Radius | 3D,4D,5D,6D,8D,10D |
| Material | Titanium Metal/Titanium Alloy |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 |

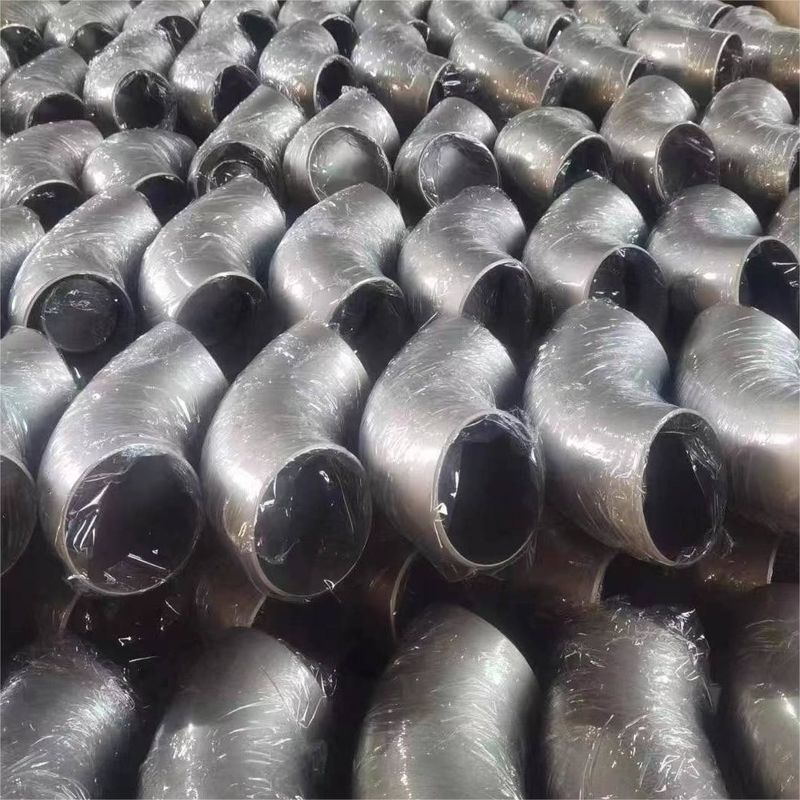

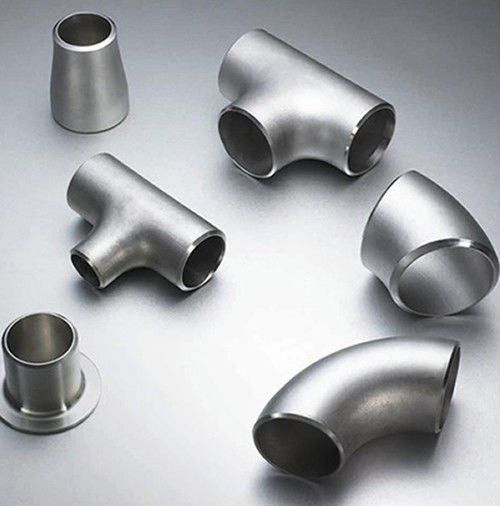

Titanium elbows are available in both seamless and welded constructions, depending on the applications’ end-use requirements. Seamless titanium elbows have a smoother surface and are more suitable for use in high-pressure environments. On the other hand, welded titanium elbows are often used in lower-pressure applications where cost is a deciding factor.
At TSM, we manufacture titanium elbows using various grades. Each grade has unique qualities, and we work with each customer to determine the best grade for their specific requirements.
Titanium Bars offers a variety of technical support and services for our customers. Our team is available to provide assistance 24/7 via email, phone, or live chat. We also offer tutorials, FAQs and self-help resources on our website to help customers troubleshoot any problems they may be having with our products.
We also have a dedicated team of technical experts who can provide personalized support to customers. Our experts can provide advice on installation, usage, troubleshooting, and more. Additionally, we offer a variety of proactive services such as product updates, bug fixes, and security patches.
At Titanium Bars, we strive to provide our customers with the highest quality of technical support and services. If you have any questions or concerns, please do not hesitate to contact us.
