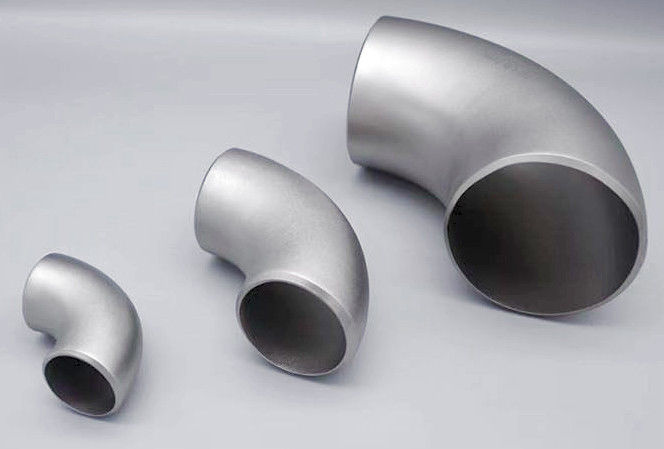

Strong and Durable Titanium Elbow with Butt Welding Connection
Titanium Grade: available in Gr1,Gr2, Gr5,Gr7, Gr12
Size: ranging from 22.5°,30°,45°, 90°, 180° to 1/2″~48″
Radius: variety of options provided includes 3D,4D,5D,6D,8D,10D
Standard: following ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B
Service: custom designs and drawings with processing are accepted.
Connection: Butt Welding
Packing: different packing options from Plywood pallets to wooden case that suits customer's request and specification.
Technique: Welded, Forged, Rolled, Seamless
Inspeciton: strict quality control processes such as X-ray detection(RT), Surface penetrant inspection (PT) and Wireless ultrasonic inspection (UT).
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
The Ultimate Solution for High-Temperature and Corrosive Environments
Titanium elbows are pipe fittings that can be used to change the flow direction of fluids or gases. They typically come in three angles: 45 degrees, 90 degrees, and 180 degrees. The pressure imposed upon the flow due to the differing degrees of angle can vary, depending on your specific application needs.
Each titanium elbow manufactured and tested shall be in accordance with the standard of ASME B16.9. This is to guarantee that they are up to standard and can have stringent testing to assure that they are fit for purpose in whatever application they are being used for. The materials used must be able to handle any high temperature and corrosive environments.
| Name | Parameters |
|---|---|
| Technology | Welded, Forged, Rolled, Seamless |
| Connection | Butt Welding |
| Radius | 3D,4D,5D,6D,8D,10D |
| Name | Titanium Elbows/Bend |
| Material | Titanium Metal/Titanium Alloy |
| Width | Customized |
| Standards | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B |
| Dimension | 22.5°,30°,45°, 90°, 180° Or 1/2″~48″ |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 |
Titanium elbow provides a reliable connection between two pipes with different orientations. It is available in both seamless and welded construction, depending on the end-use requirements. Seamless titanium elbow has a higher pressure resistance than welded elbow and smoother surface. Hence, it is more suitable for applications that require higher pressure performance. On the other hand, welded titanium elbow is widely used where cost is the main concern.
At TSM, we manufacture variety of titanium elbows with different grades, selected based on the specific application. Our customised elbow designs combine pressure rating, size, orientation and shape to ensure that they meet the requirements of different applications. All the titanium elbows we produce are of high quality and are suitable for almost any applications.
We provide technical support and service for Titanium Bars products. Our team of experienced professionals can assist with product installation, setup, troubleshooting, and maintenance. We offer customized solutions to meet your specific needs. Our customer service team is available 24/7 to answer any questions or concerns you may have. We also have an extensive knowledge base and online tutorials to help you get the most out of your Titanium Bars product.
