Place of Origin:
Xi'an,China
Brand Name:
FHH

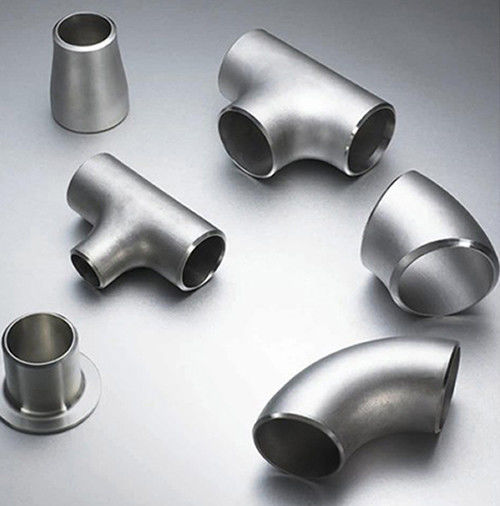

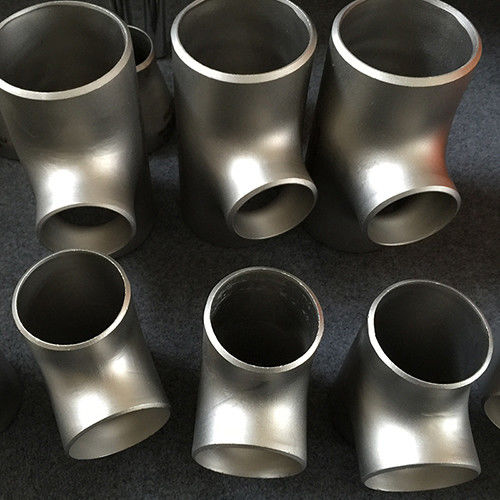

Butt Welding Titanium Elbows with Gr10 Grade for Chemically Demanding Applications
Titanium Grade ranges from Gr1, Gr2, to Gr5, Gr7, and Gr12; and the available sizes are 22.5°,30°,45°, 90°, 180° or variations from ½” to 48” in size. Additionally, we provide variable radius options, such as 3D,4D,5D,6D,8D, or 10D. By complying to ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, and MSS-SP-43 Type B, we have the capability to customize the goods according to drawing processing. Furthermore, our connections are all welded, and we provide Welded, Forged, Rolled, and Seamless techniques. Last but not least, our products undergo strict quality inspections, such as X-ray detection (RT), Surface penetrant inspection (PT), and Magnetic particle inspection (MT). Also, the packing methods could be Plywood pallets/ wooden case or as per the customer’s request and specification.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
Features:
Titanium elbows are the ultimate solution for high-temperature and corrosive environments. They are commonly used in different industrial processes and are available in several angles, such as 45, 90, and 180 degrees. The angle of the elbow determines the pressure the fluid passes through due to the diversion in the flow.
Manufacturing of such elbows follows the ASME B16.9 standards, which include undergoing rigorous testing. This is necessary to ensure that the elbow can handle the diverse range of temperature and pressure requirements that come from the different applications.
| Grade | Material | Width | Name | Standards | Connection | Radius | Technology | Dimension |
|---|---|---|---|---|---|---|---|---|
| Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 | Titanium Metal / Titanium Alloy | Customized | Titanium Elbows /bend | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B | Butt Welding | 3D,4D,5D,6D,8D,10D | Welded, Forged, Rolled, Seamless | 22.5°,30°,45°, 90°, 180° Or 1/2″~48″ |
Titanium elbow can either be available in seamless or welded construction, depending on the end-user's requirement. The seamless option has a smoother surface and can accommodate higher pressures which is suitable for more critical tasks. In comparison, the welded construction is usually used for lower-pressure applications and it is often selected for being more cost-effective.
At TSM, our experts will provide detailed assistance in selecting the most suitable grade of titanium elbow for your specific application. Depending on your needs, we offer several grades – each one of them having its own unique properties.
Titanium Bars offers technical support and services to help customers get the most out of their product. Our team of experienced technicians are available 24/7 to answer questions, troubleshoot issues, and provide assistance. We offer remote support, on-site maintenance, and software updates to ensure customers are always up and running.
We also provide comprehensive documentation, tutorials, and guides to help customers better understand their product and how to use it. Our customer service team is always available to answer questions and provide guidance.
Q: What's the brand name of Titanium Elbows?A: The brand name of Titanium Elbows is FHH.
Q: Where is the place of origin of Titanium Elbows?A: The place of origin of Titanium Elbows is Xi'an, China.
Q: What's the minimum order quantity of Titanium Elbows?A: The minimum order quantity of Titanium Elbows is 100pcs.
Q: What's the packaging details of Titanium Elbows?A: All goods are packed by seaworth shipment materials.
Q: How long is the delivery time of Titanium Elbows?A: The delivery time of Titanium Elbows is 5--10days.
Q: What's the payment terms of Titanium Elbows?A: The payment terms of Titanium Elbows is L/C, D/P, T/T.
Q: What's the supply ability of Titanium Elbows?A: The supply ability of Titanium Elbows is 2000pcs per month.
