Titanium bend with Butt Welding Connection for High-pressure Applications
Titanium grades range from Gr1 to Gr12 and come in a variety of sizes, from 22.5° to 180° or 1/2” to 48”. Further customization can be achieved with its various radius sizes from 3D to 10D. It is compliant to ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A and MSS-SP-43 Type B standards. Further customization can be achieved through its welding, forging, rolling and seamless service.
Quality assurance is also a priority, as inspection is conducted through X-ray detection (RT), Surface penetrant inspection (PT), Ultrasonic testing (UT) and Magnetic particle inspection (MT). Packing is also up to the customer, with options like Plywood pallets, wooden case or request specified.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
An elbow is an essential pipe fitting that can alter the flow direction of fluids or gases. It comes available in multiple angles, such as 45 degrees, 90 degrees, and 180 degrees, each having an effect on the pressure of the fluid flow depending on the degree it's bent in.
ASME B16.9 is an established standard for constructing and assessing butt-welded fittings. To be regarded as a prime candidate, these titanium elbows have to successfully pass testing to assure that they are able to tolerate the temperature requirements and the pressure of all kinds of applications, particularly those in high-temperature and corrosive conditions.
| Parameter | Specification |
|---|---|
| Name | Titanium Tees |
| Technology | Welded, Forged, Rolled, Seamless |
| Thickness | Customized |
| Connection | Butt Welding |
| Dimension | 22.5°,30°,45°, 90°, 180° Or 1/2″~48″ |
| Standards | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 |
| Material | Titanium Metal / Titanium Alloy |
| Radius | 3D,4D,5D,6D,8D,10D |

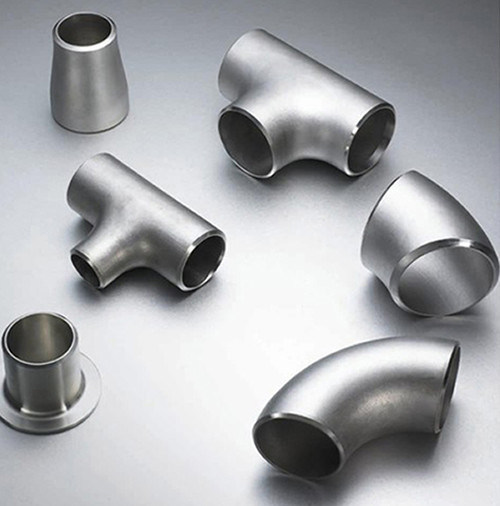

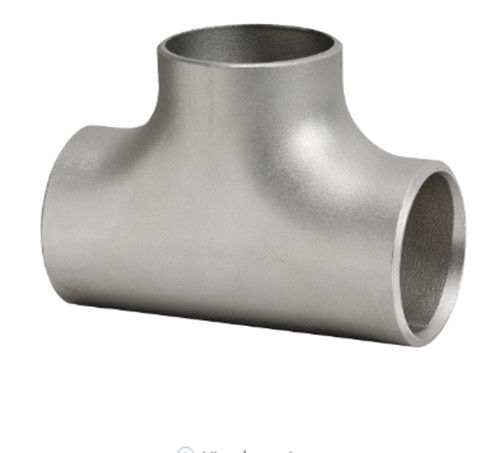

Titanium tee is available in two forms: seamless, and welded. Seamless titanium elbows have a smoother surface, and are able to withstand greater pressures than welded tees. This makes them ideal for critical applications. Alternatively, welded titanium tees are typically used in low-pressure applications where cost is the deciding factor.
At TSM, we offer our clients different grades of titanium elbows, each possessing a unique set of properties. We help our customers to choose the most appropriate grade for their particular application.
Titanium Bars offers technical support and services for our products and services. Our technical support team is available 24/7 and is ready to assist you with any questions you may have. We offer support in the form of phone and email, as well as live chat and forums. We strive to provide the best possible support to our customers and are always available to answer your questions.
We also offer a variety of services to make sure our products are running smoothly and efficiently. Our services include installation, troubleshooting, maintenance, and upgrades. We have a team of highly-trained professionals who are dedicated to providing the best customer experience possible.
