Place of Origin:
Xi'an,China
Brand Name:
FHH

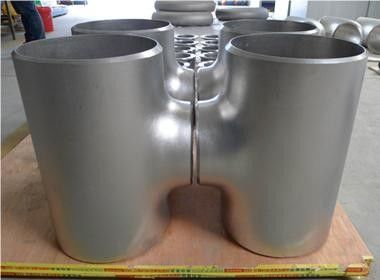

Titanium Grade range from Gr1,Gr2, Gr5,Gr7, Gr12, with the sizes from 22.5°,30°,45°, 90°, 180° to 1/2″~48″, and including the radius of 3D,4D,5D,6D,8D,10D.
We have varied standards available, such as ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A and MSS-SP-43 Type B.
Furthermore, customization according to your drawing processing can also be provided. Various connections are available, including Butt Welding. The package of the product can be in Plywood pallets/ wooden case or as per your request and specification.
In terms of workmanship, we have techniques of Welded, Forged, Rolled and Seamless. The quality inspection can be made based on X-ray detection(RT) and Surface penetrant inspection (PT).
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
An elbow is a special type of pipe fitting that rapidly changes the flow direction of liquids and gases. It is available in 45, 90 and 180 degree angles, each of which imposes different levels of pressure on the flowing material. Furthermore, titanium elbows are especially beneficial in the environment with extreme temperatures and corrosive environments.
ASME B16.9 is a set of standards designed for the manufacture and testing of butt-welding fittings. This applies to titanium elbows, which are rigorously tested according to ASME B16.9 to ensure that they are able to withstand the temperature and pressure levels required in a particular application.
Therefore, titanium elbows are the perfect solution for tackling extreme temperature and corrosive environments. They are not only effective in carrying gas and liquids, but also highly reliable.
| Technology | Dimension | Standards | Width | Connection | Name | Material | Radius | Grade |
|---|---|---|---|---|---|---|---|---|
| Welded, Forged, Rolled, Seamless | 22.5°,30°,45°, 90°, 180° Or 1/2″~48″ | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B | Customized | Butt Welding | Titanium Elbows /bend | Titanium Metal / Titanium Alloy | 3D,4D,5D,6D,8D,10D | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 |
Titanium elbows can come in both seamless and welded construction, depending on its intended end-use purpose. For applications that require even more stringent pressure-handling capabilities, seamless titanium elbows provide a much smoother surface than its welded counterpart. On the other hand, welded elbows are often chosen when cost is the primary concern, as they are usually employed in low-pressure applications.
At TSM, we manufacture titanium elbows of different grades, each one with its unique properties. Our team of experts will work closely with our clients to determine which grade is the best fit for their needs.
Titanium Bars offers technical support and service for our products and services.
We provide technical support and service through both online and telephone support. Our online support team can be reached through our website or our email address. Our telephone support team is available to answer any questions you may have about our products and services. They can also help you troubleshoot any issues you may have with our products.
We also offer an online user manual and tutorials to help you get the most out of your Titanium Bars experience. This includes product FAQs, installation instructions, and troubleshooting tips.
If you have any questions or concerns, please don’t hesitate to contact us.
Q: What's the brand name of Titanium Elbows?A: The brand name of Titanium Elbows is FHH.
Q: Where is the place of origin of Titanium Elbows?A: The place of origin of Titanium Elbows is Xi'an, China.
Q: What's the minimum order quantity of Titanium Elbows?A: The minimum order quantity of Titanium Elbows is 100pcs.
Q: What's the packaging details of Titanium Elbows?A: All goods are packed by seaworth shipment materials.
Q: How long is the delivery time of Titanium Elbows?A: The delivery time of Titanium Elbows is 5--10days.
Q: What's the payment terms of Titanium Elbows?A: The payment terms of Titanium Elbows is L/C, D/P, T/T.
Q: What's the supply ability of Titanium Elbows?A: The supply ability of Titanium Elbows is 2000pcs per month.
