Place of Origin:
Xi'an,China
Brand Name:
FHH

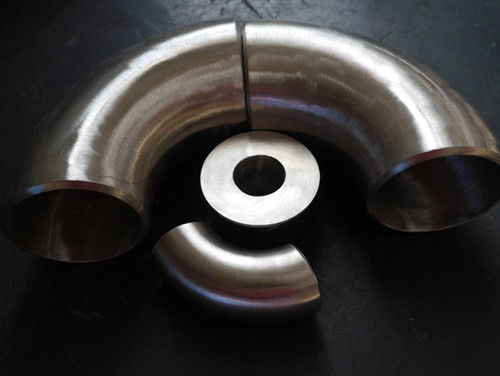

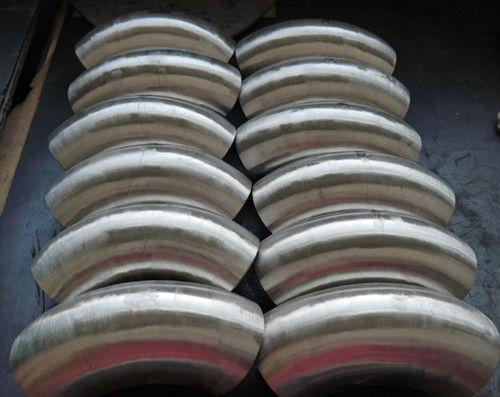

Seamless Pipe Bending Made Easy with Grade Gr1 Titanium Elbows
Titanium grades available come in Grade 1, Grade 2, Grade 5, Grade 7 and Grade 12 with a wide range of sizes from as small as 22.5 degrees to as large as 180 degrees or up to 48 inches. We can provide radiuses of 3D, 4D, 5D, 6D, 8D and 10D.
We comply with ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A and MSS-SP-43 Type B standards. All our goods can be customized according to drawing processing.
We can ensure a Butt Welding connection and packing of Plywood pallets/ wooden case or as per your request and specification.
Our manufacturing techniques include welding, forging, rolling and seamless. We also offer X-ray detection (RT), surface penetrant inspection (PT) and ultrasonic inspection (UT) for your added peace of mind.
Dimensions of Elbows and Returns
|
Nominal Pipe size DN |
O/D Bevel D |
Center to End | Center to Center | Back to Faces | ||||
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows | ||||||
| B | A | P | K | |||||
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius | ||
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
Elbow is a pipe fitting which is used to alter the direction of fluids or gases, and it can be made with different angles, such as 45 degrees, 90 degrees or 180 degrees. It is the angle that affects the pressure of fluid flow when it changes its direction.
In order to guarantee that the titanium elbow can endure the varying pressures and temperatures to its specific applications, it must pass rigorous testing and meet the ASME B16.9 standard. The ASME B16.9 standard is the basis of manufacturing and testing butt-welded fittings.
Titanium elbows are particularly suitable for high-temperature and corrosive environments, allowing for ultimate convenience for many industries.
| Name | Material | Connection | Standards | Radius | Width | Grade | Dimension | Technology |
|---|---|---|---|---|---|---|---|---|
| Titanium Elbows/bend | Titanium Metal/Titanium Alloy | Butt Welding | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B | 3D, 4D, 5D, 6D, 8D, 10D | Customized | Gr1, Gr2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr10 | 22.5°, 30°, 45°, 90°, 180° Or 1/2″~48″ | Welded, Forged, Rolled, Seamless |
Titanium elbow is available in either seamless or welded construction, determined by the specific application.
Seamless titanium elbow is crafted with a smooth surface and built to withstand higher pressure than welded elbow. This makes it suitable for applications that require higher performance. Compared to the seamless option, welded titanium elbow is preferred in low-pressure conditions and when cost-effectiveness is a concern.
At TSM, we produce titanium elbows in various grades to meet customer needs. Each grade presents its own distinctive features, and we can help identify the grade best fitting for the particular application.
We offer technical support and service for all our Titanium Bars products. Our team of experienced technicians is available to answer your questions and provide guidance on installation, maintenance, and troubleshooting. We also offer warranty services to ensure that your product is operating properly and to the highest quality standards.
If you have any questions or concerns about our Titanium Bars products, please do not hesitate to contact us. Our team is always here to help.
Q: What's the brand name of Titanium Elbows?A: The brand name of Titanium Elbows is FHH.
Q: Where is the place of origin of Titanium Elbows?A: The place of origin of Titanium Elbows is Xi'an, China.
Q: What's the minimum order quantity of Titanium Elbows?A: The minimum order quantity of Titanium Elbows is 100pcs.
Q: What's the packaging details of Titanium Elbows?A: All goods are packed by seaworth shipment materials.
Q: How long is the delivery time of Titanium Elbows?A: The delivery time of Titanium Elbows is 5--10days.
Q: What's the payment terms of Titanium Elbows?A: The payment terms of Titanium Elbows is L/C, D/P, T/T.
Q: What's the supply ability of Titanium Elbows?A: The supply ability of Titanium Elbows is 2000pcs per month.
