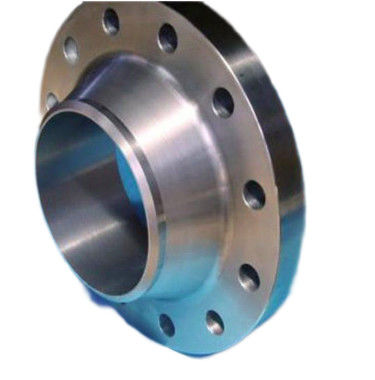

Integral Titanium Flange Gr1 Gr2 Gr3 Titanium Steel Pipe Flange

Titanium Integral flange,Titanium flange,

Titanium integral flange overview

The integral flange is a connection method of the flange. It is also a kind of steel pipe flange with neck butt welding. . In various domestic standards, IF is used to indicate the integral flange. It is mostly used in pipelines with high pressure. The production process is generally casting.

In the flange type, an "IF" is used to indicate the type of the overall flange. Generally, it is a sudden surface (RF), if in flammable, explosive, high and extremely hazardous use conditions, you can choose the form of the sealing surface of the convex and concave surface (MFM) and the mortise and groove surface (TG) in addition to the RF surface.

Standards

ASME ,EN standard

Application:Products are widely used in petroleum, chemical industry, metallurgy, shipbuilding, urban construction water heating, military fire protection, environmental protection, medicine, alkali, electroplating, paper making, aerospace, electric power and other fields.

Dimension: As customer's request

Materials: Gr1,Gr2,Gr4,Gr5 etc.

Professing methord:impact molding,Forging process,rollers methord

Surface:Forging surface, rolling surface, polishing surface, polishing surface

Classification by structural form:Integral titanium flanges, butt welded titanium flanges, looping titanium flanges and threaded titanium flanges.

Classified by connecting parts:Container titanium flange,Tube titanium flange

Titanium flange Facing Types

America Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)

Europe Series: Type A (Flat Face),Type B (Raised Face),Type C (Tongue),Type D (Groove),Type E (Spigot),Type F (Recess),Type G (O-Ring Spigot),Type H (O-Ring Groove)

Based On titanium flange facing Types, it can be further classified as:

Flat Face (FF)
Raised Face (RF)
Ring Joint (RTJ)
Tongue and groove (T&G)
And Male and Female type

A titanium flange is a type of flange made from titanium, a strong and lightweight metal known for its high corrosion resistance. Flanges are commonly used in piping systems to connect pipes, valves, and other equipment, providing a secure and leak-proof joint.

Here are some key points about titanium flanges:

Material: Titanium flanges are made from titanium alloys, usually grades 2 or 5, which offer excellent strength, low density, and exceptional resistance to corrosion.

Corrosion resistance: Titanium is highly resistant to corrosion, even in harsh environments such as seawater, acidic or alkaline solutions, and high-temperature applications. This makes titanium flanges suitable for industries like chemical processing, oil and gas, marine, and aerospace.

Strength and weight: Titanium has a high strength-to-weight ratio, meaning it is strong while being lightweight. This property makes titanium flanges desirable in applications where weight reduction is crucial, such as in aerospace and automotive industries.

Temperature resistance: Titanium flanges can withstand high temperatures without losing their mechanical properties. They can operate in temperatures ranging from cryogenic levels up to around 600°C (1112°F), depending on the specific grade of titanium used.

Non-magnetic: Titanium is a non-magnetic material, which can be advantageous in certain applications where magnetic interference needs to be minimized, such as in electronic or scientific equipment.

Machinability: Titanium is generally more challenging to machine compared to other metals due to its high strength and low thermal conductivity. Special tools and techniques are often required for machining titanium flanges accurately.

Weldability: Titanium flanges can be welded using various techniques, including TIG (Tungsten Inert Gas) welding and electron beam welding. Proper welding procedures are essential to maintain the desired mechanical properties and corrosion resistance of titanium.

Standards and specifications: Titanium flanges are manufactured according to various international standards, such as ASME B16.5 and ASTM B381, which define dimensions, pressure ratings, and other specifications.

Applications: Titanium flanges are used in a wide range of industries, including chemical processing, oil and gas, power generation, desalination plants, marine, aerospace, and medical devices. They are particularly suitable for applications involving corrosive fluids, high-temperature environments, and weight-sensitive structures.
