Place of Origin:
Xi'an,China
Brand Name:
FHH

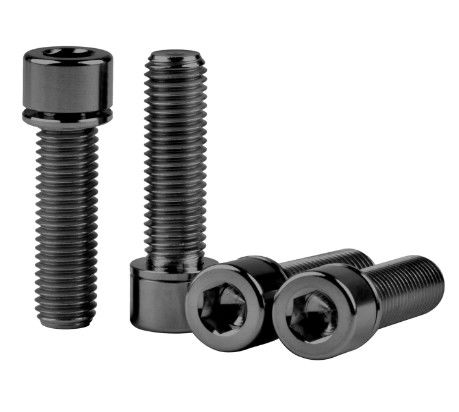

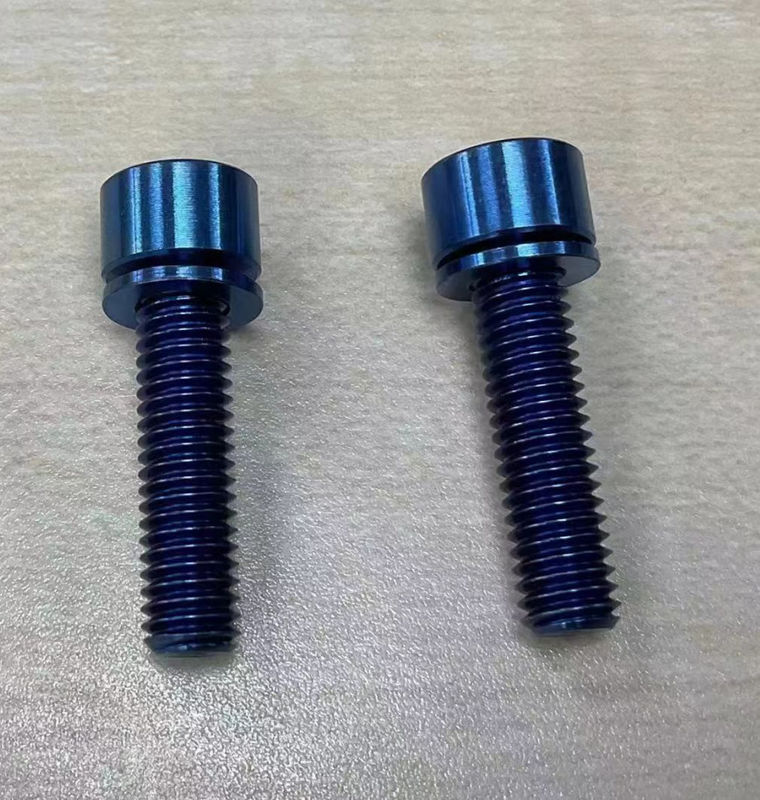

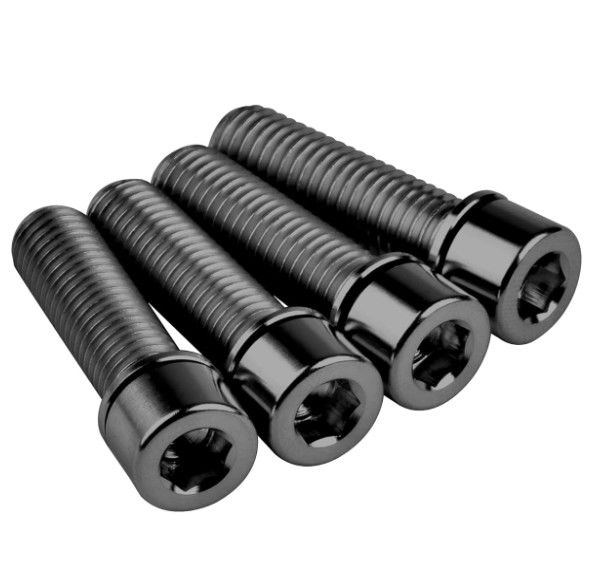

Titanium hex screw with Allen Head
Hexagon socket cylindrical head titanium screw
The screw head of the titanium hexagonal screw is round outside, and the middle is a concave hexagonal, and the hexagonal screw is the kind of common screw head with a hexagonal edge.
Titanium hex socket screws are often used in machinery, mainly have the advantages of easy fastening, disassembly, and not easy to slip. The wrench of titanium hexagon screws is generally a 90 degree turning, the bent end is long to the side is short, and the short side can save a lot of force and can better tighten the screws. Compared with the outer hexagon, the outer hexagon has a low manufacturing cost, the screw head is thinner than the titanium hexagon screw, and some places are not titanium hexagon screws can be replaced. The machinery with low cost, low dynamic strength and low precision requirements uses much less titanium hex screws than the outer hex.
About this item
Material: 6AL/4V(TC4)Titanium Alloy,Grade 5
Thread Pitch : 1.25mm;Weight : 6.6 Gram/Piece Use 6mm Allen key
Bolt Size : M8x25 mm;Thread Diameter (d) : 8mm/ 0.31"
Head Size (D*k) : 13x 8mm/ 0.51" x 0.31";Standard:DIN 912

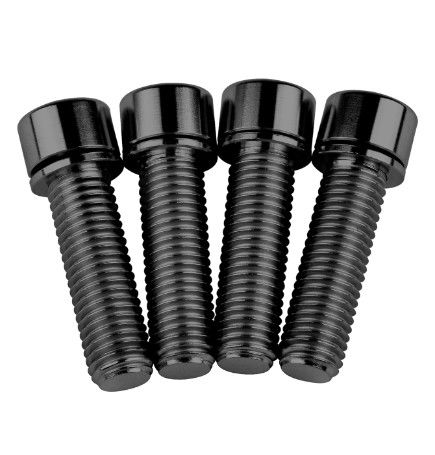

Package Content : 4x Titanium DIN912 M8x25mm Bolts
