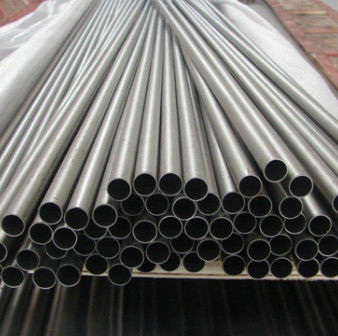

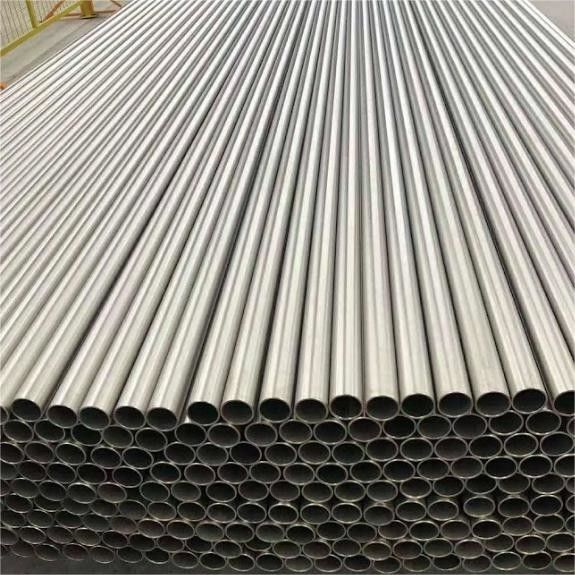

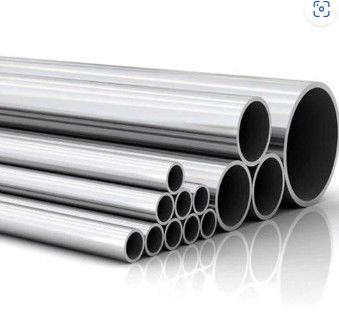

Titanium Pipes for Funny Car Body , Golf Clubs & Heat Exchangers,oil & Gas production
Titanium pipe/tube advantage
Titanium tube is light in weight, high in strength and superior in mechanical properties, it is widely used in heat exchange equipment, such as tube heat exchanger, coiled heat exchanger, snake tube heat exchanger, condenser, evaporator and conveying pie, petroleum, pipeline, transportation piping and other related usages, many nuclear power industries use titanium tubes as standard tubes for their units.
Feature of Titanium Tubes:
a)Characters such as Safety ,Health, Environmental Protection
b)The resistant to corrosion excellent
c)Light weight, thickness and out diameter so variously
d)Easy Cutting, huge deformation and heat – resistance
e)Tensile Strengthen and good be flexible etc.
Titanium pipe Standards:ASTM B338,ASTM B337,ASTM B861,ASTM B862,GOST 22897,JIS HE4631,OR CUSTOMED
Pipe Type:weled /Seamless pipe
Grade:GR1,GR2,GR3,GR5,GR7,GR9,GR11,GR12,GR16,GR17
1.Seamless pipe:
outer Diameter Range:0.4---350mm
withness range:0.4--10mm
Length range:not more than 15000mm
2.Welded pipe :
Outer diameter range:10mm---2000mm
widthness:0.5mm---50mm
Length range:not more than 15000mm
T
| Item | Standard | Material | Size(mm) |
|
Heat exchanger And Condenser tube |
ASTMB338,ASTMB337, ASTMB861 |
Grade1,2,3 | OD(5-114)X(0.3—10)XL1200mmMax |
| Corrosion Resistant Tubes | ASTMB338 | Grade7,Grade12 | OD(5-114)X(0.5—4.5)Xlength 12000mmMax |
| BikeFrame/Wheelchair/Exhaust tube/Pipes |
ASTMB338 |
Gr9/Ti3Al2v5 | OD(38.1—44.5)X(0.9-3.15)X(L1000—2000MM) |
| Automobile&MotorCycle Exhaust Tube/Pipes | ASTMB337/338 | Gr1,Gr2,Gr9 | OD(38.1—88.9)X1.2X(L1000—2000mm) |
| Marine Industry | ASTM/AMS | Gr2,Gr5,Gr7,Gr12 | OD(23.1-210)X(W0.5-6.0)X(L1000-6000mm) |
