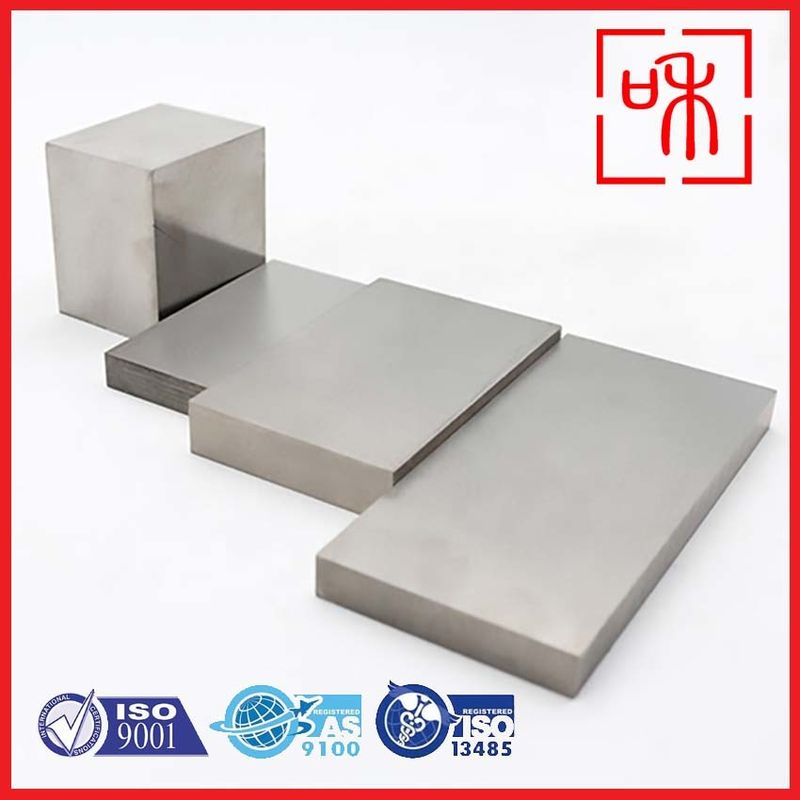

Gr5 Titanium Plate Hot Rolled Pickling Surface Titanium Sheet Titanium Plate And Sheet For Industrial Applications

Product Introduction

Titanium plates are widely used across various industries due to their unique properties. Firstly, they have a high strength-to-weight ratio, being significantly lighter than steel while maintaining comparable strength, making them ideal for applications with strict weight requirements. Additionally, titanium exhibits exceptional corrosion resistance, particularly in marine and chemical environments, effectively extending the lifespan of components made from it. Its biocompatibility makes titanium suitable for medical applications, such as implants and prosthetics. It can also withstand high temperatures without losing its mechanical properties, which is advantageous in aerospace and industrial applications.

Titanium plates are also relatively easy to weld, allowing for versatile fabrication and assembly. Their good ductility enables them to be formed into complex shapes without cracking. Furthermore, titanium's low coefficient of thermal expansion ensures stability under varying temperature conditions, which is crucial for precision applications. While titanium is not as conductive as metals like copper, it still possesses adequate electrical conductivity for certain applications. Finally, titanium plates demonstrate excellent fatigue resistance, making them suitable for use in cyclic loading applications, such as aerospace components. Therefore, titanium plates excel in multiple fields due to their strength, lightweight nature, and resistance to environmental factors.

Introduction to Gr5 Titanium

Grade 5 titanium, also known as Ti-6Al-4V, is one of the most widely used titanium alloys due to its exceptional strength-to-weight ratio and corrosion resistance. Composed of approximately 90% titanium, 6% aluminum, and 4% vanadium, this alloy is renowned for its mechanical properties, making it suitable for various applications, including aerospace, marine, and medical fields. The ability of Gr5 titanium to withstand harsh environments while maintaining structural integrity makes it an ideal choice for components exposed to aggressive elements. Additionally, the hot rolling and pickling processes enhance its surface characteristics, further improving its performance in corrosive conditions.

The Hot Rolling Process

Hot rolling is a manufacturing process that involves shaping metal at high temperatures, typically above its recrystallization point. This technique allows for significant deformation and results in improved mechanical properties such as toughness and ductility. For Gr5 titanium, hot rolling not only facilitates the formation of plates but also refines the microstructure, leading to enhanced strength. The heat treatment involved during hot rolling helps eliminate internal stresses, resulting in a more uniform material that exhibits consistent performance across various applications.

The hot rolling process also affects the surface finish of the titanium plate. While the initial surface may have scale or oxides, subsequent processing steps like pickling can prepare the surface for optimal performance. The combination of hot rolling and pickling enhances the overall quality of Gr5 titanium plates, ensuring they meet strict industry standards for durability and reliability. This is particularly vital in industries where failure is not an option, such as aerospace and medical devices.

Titanium Grade 2

• Composition: Primarily titanium with small amounts of iron and oxygen.
• Strength: Moderate strength (yield strength around 275 MPa or 40,000 psi).
• Corrosion Resistance: Excellent corrosion resistance, making it suitable for chemical processing and marine applications.
• Weldability: Good weldability and formability; can be easily welded and fabricated.
• Applications: Commonly used in the aerospace, medical, and marine industries.

Titanium Grade 5 (Ti-6Al-4V)

• Composition: Titanium alloyed with 6% aluminum and 4% vanadium.
• Strength: High strength (yield strength around 880 MPa or 128,000 psi), significantly stronger than Grade 2.
• Weight: Lightweight, combining strength with low density.
• Corrosion Resistance: Good corrosion resistance, though not as excellent as Grade 2 in some environments.
• Weldability: More challenging to weld compared to Grade 2, often requiring specific techniques.
• Applications: Widely used in aerospace, automotive, and medical implants due to its strength-to-weight ratio.

Titanium Grade 7

• Composition: Titanium alloyed with 0.15% palladium.
• Strength: Moderate strength, similar to Grade 2 (yield strength around 275 MPa or 40,000 psi).
• Corrosion Resistance: Excellent corrosion resistance, particularly in acidic environments, due to the presence of palladium.
• Weldability: Good weldability and formability, allowing for ease of fabrication.
• Applications: Commonly used in chemical processing, oil and gas, and marine environments where superior corrosion resistance is required.

Summary of All Three Grades

• Grade 2: Good weldability, excellent corrosion resistance, moderate strength.
• Grade 5: High strength, lightweight, more challenging to weld, suitable for demanding applications.
• Grade 7: Similar strength to Grade 2, enhanced corrosion resistance due to palladium, good weldability.

Advantages of ASTM B265 Gr5 Titanium Plates

ASTM B265 Gr5 titanium plates, primarily composed of Ti-6Al-4V, offer numerous advantages that make them suitable for a variety of demanding applications. Here are some key benefits:

1. High Strength-to-Weight Ratio

Gr5 titanium plates are known for their exceptional strength while remaining lightweight. This characteristic is particularly advantageous in industries like aerospace and automotive, where reducing weight can lead to improved fuel efficiency and performance.

2. Corrosion Resistance

Titanium is highly resistant to corrosion, making Gr5 plates ideal for applications in harsh environments, such as marine and chemical processing. This resistance prolongs the lifespan of components and reduces maintenance costs.

3. Versatile Fabricability

These plates can be easily machined, welded, and formed into complex shapes. This versatility allows manufacturers to create intricate components without compromising the material's integrity.

4. Biocompatibility

Gr5 titanium is biocompatible, making it suitable for medical applications, including implants and surgical instruments. Its compatibility with biological tissues ensures minimal adverse reactions in medical use.

5. Temperature Resistance

ASTM B265 Gr5 titanium plates maintain their mechanical properties at elevated temperatures, making them suitable for high-temperature applications in aerospace and industrial environments.

6. Fatigue Resistance

The alloy exhibits excellent fatigue resistance, which is crucial for components subjected to cyclic loading. This property enhances the reliability and durability of parts in demanding applications.

7. Recyclability

Titanium is highly recyclable, which contributes to sustainability efforts. At the end of their lifecycle, Gr5 titanium plates can be reclaimed and repurposed, reducing the need for raw material extraction.

Technical Parameters

Titanium Sheet and Plate

We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.

Production Standards:

Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.

Titanium Grades:

Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.

Titanium Sheet Surface Finishes:

Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.

Corrosion Resistance of Gr5 Titanium

One of the standout features of Gr5 titanium is its exceptional corrosion resistance, which is primarily attributed to the formation of a protective oxide layer on its surface. When exposed to oxygen, titanium naturally forms a thin, stable oxide layer that acts as a barrier against further oxidation and corrosion. This passive layer is highly adherent and self-healing, meaning that if it is damaged, it can regenerate in the presence of oxygen. The corrosion resistance of titanium alloys like Gr5 is significantly superior to that of conventional metals such as steel, making them ideal for use in aggressive environments.

In practical applications, the corrosion resistance of Gr5 titanium plates has been demonstrated in various environments, including seawater, acidic solutions, and high-temperature applications. This capability makes Gr5 titanium a preferred choice for components in offshore structures, chemical processing plants, and even biomedical implants. The longevity of Gr5 titanium parts translates to reduced maintenance costs and downtime, which is particularly valuable in critical industries where reliability is paramount. The combination of hot rolling and pickling further enhances this resistance, ensuring that the material can withstand prolonged exposure to corrosive agents.

Manufacturing Considerations and Quality Control

Manufacturing pickled hot rolled titanium sheets requires careful attention to detail throughout the production process. Here are the key considerations and quality control measures:

1. Production Process

• Forging: The initial step where titanium is shaped under heat and pressure. This process enhances the material's mechanical properties and structure.
• Rolling: Hot rolling reduces the thickness of the titanium sheets while improving their uniformity and mechanical properties. The temperature and rolling speed must be closely monitored to prevent overheating, which can lead to unwanted microstructural changes.
• Heat Treatment: Post-rolling heat treatment is crucial for achieving the desired mechanical properties, such as strength and ductility. Parameters like temperature and duration are meticulously controlled to avoid defects.

2. Clean Production Environment

• Contamination Control: Titanium is highly reactive with elements like oxygen and nitrogen, which can lead to embrittlement and compromised performance. A clean environment, free from contaminants, is essential throughout the manufacturing process.
• Material Handling: Tools and surfaces that come into contact with titanium should be cleaned regularly to minimize contamination risks.

3. Welding and Fabrication Techniques

• TIG Welding: This specialized welding method is preferred for titanium due to its precision and ability to produce strong, clean welds. The process requires careful control of the heat input to avoid altering the material's properties.
• Shielding: Effective shielding from atmospheric contaminants during welding is critical. This typically involves using inert gases like argon to create a protective atmosphere around the weld area, preventing oxidation and contamination.

4. Quality Control Measures

• Non-Destructive Testing (NDT): Techniques such as ultrasonic testing and radiography are employed to detect internal flaws and ensure the integrity of the titanium sheets without damaging them.
• Surface Inspections: Regular inspections for surface defects, such as pitting or cracks, are conducted to maintain high-quality standards. This includes visual inspections and the use of surface analysis techniques.

5. Compliance with Standards

• Adhering to industry standards and specifications, such as ASTM B265, is essential to ensure that the titanium sheets meet the required performance criteria for their intended applications.

Sustainability and Environmental Impact

1. Material Properties and Lifecycle:

• Durability: Titanium Grade 5 (Ti-6Al-4V) is known for its exceptional strength-to-weight ratio and corrosion resistance, leading to longer service life and reduced need for replacements.
• Recyclability: Titanium is highly recyclable without loss of quality. Scrap material from manufacturing processes can be reused, reducing resource extraction and waste.

2. Extraction and Production:

• Resource Extraction: Titanium is primarily extracted from mineral sands through mining, which can lead to habitat disruption and energy-intensive processes. However, advancements in mining and processing technologies are improving efficiency and minimizing environmental impact.
• Production Footprint: The production of titanium involves significant energy consumption, particularly in the extraction and processing phases. Using renewable energy sources in manufacturing can mitigate this impact.

3. Applications in Sustainable Industries:

• Aerospace: Grade 5 titanium is widely used in aerospace applications, contributing to lighter aircraft designs that enhance fuel efficiency and reduce greenhouse gas emissions.
• Medical: In the medical field, titanium implants improve patient outcomes and longevity, which aligns with sustainability goals in healthcare.

4. End-of-Life Considerations:

• Recycling: At the end of its lifecycle, titanium components can be recycled, preserving material value and reducing landfill waste. Efforts in developing efficient recycling processes are ongoing to enhance this aspect.

5. Environmental Benefits:

• Corrosion Resistance: Titanium’s resistance to corrosion means lower maintenance and replacement costs, leading to a reduced environmental footprint over time.
• Lightweight Properties: The lightweight nature of Grade 5 titanium reduces energy consumption in applications like transportation, contributing to lower carbon emissions.

6. Challenges and Opportunities:

• Mining Impact: The environmental impact of titanium mining and processing remains a concern, prompting the need for stricter regulations and sustainable practices in the industry.
• Innovation: Ongoing research into more sustainable extraction and processing methods can further enhance the environmental profile of titanium.

Conclusion

In summary, pickled hot rolled titanium sheets, specifically ASTM B265 Grade 2 and Grade 5, represent a vital component of modern engineering across diverse industries. Their unique properties, including excellent corrosion resistance, high strength, and lightweight nature, make them indispensable in applications ranging from aerospace to medical implants. As the demand for advanced materials continues to grow, the significance of these titanium grades will only increase, driving innovation and efficiency in various sectors. Ultimately, the investment in titanium technology will yield substantial benefits, enhancing performance while promoting sustainability in manufacturing and engineering practices.
