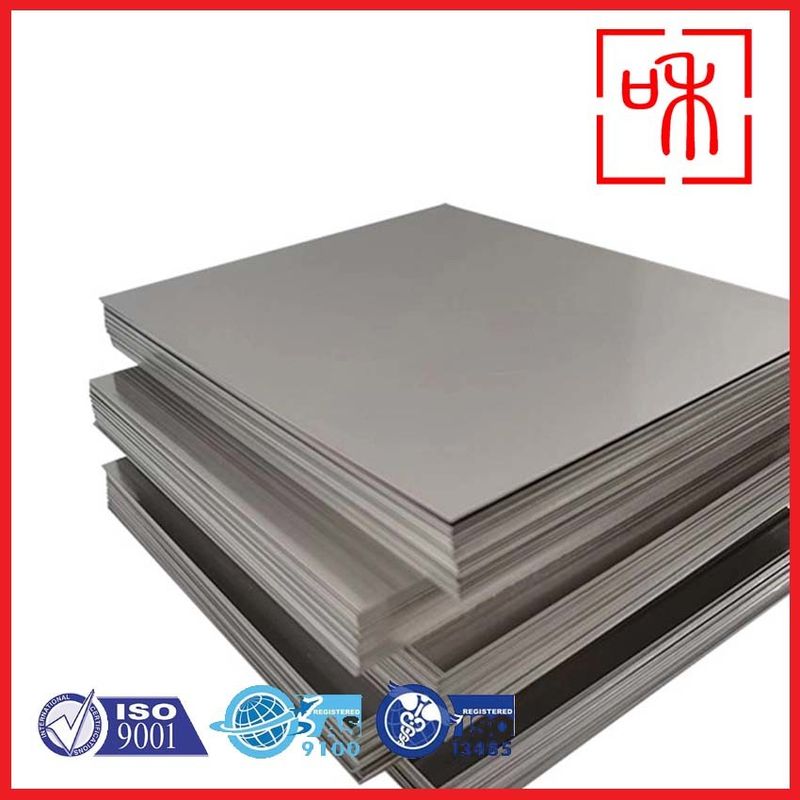

ASTM B265 Gr2 Gr 5 1mm Titanium Sheet Titanium Plate And Sheet For Manufacturing Purposes

Product Introduction

Titanium plates are widely used across various industries due to their unique properties. Firstly, they have a high strength-to-weight ratio, being significantly lighter than steel while maintaining comparable strength, making them ideal for applications with strict weight requirements. Additionally, titanium exhibits exceptional corrosion resistance, particularly in marine and chemical environments, effectively extending the lifespan of components made from it. Its biocompatibility makes titanium suitable for medical applications, such as implants and prosthetics. It can also withstand high temperatures without losing its mechanical properties, which is advantageous in aerospace and industrial applications.

Titanium plates are also relatively easy to weld, allowing for versatile fabrication and assembly. Their good ductility enables them to be formed into complex shapes without cracking. Furthermore, titanium's low coefficient of thermal expansion ensures stability under varying temperature conditions, which is crucial for precision applications. While titanium is not as conductive as metals like copper, it still possesses adequate electrical conductivity for certain applications. Finally, titanium plates demonstrate excellent fatigue resistance, making them suitable for use in cyclic loading applications, such as aerospace components. Therefore, titanium plates excel in multiple fields due to their strength, lightweight nature, and resistance to environmental factors.

Titanium Grade 2

• Composition: Primarily titanium with small amounts of iron and oxygen.
• Strength: Moderate strength (yield strength around 275 MPa or 40,000 psi).
• Corrosion Resistance: Excellent corrosion resistance, making it suitable for chemical processing and marine applications.
• Weldability: Good weldability and formability; can be easily welded and fabricated.
• Applications: Commonly used in the aerospace, medical, and marine industries.

Titanium Grade 5 (Ti-6Al-4V)

• Composition: Titanium alloyed with 6% aluminum and 4% vanadium.
• Strength: High strength (yield strength around 880 MPa or 128,000 psi), significantly stronger than Grade 2.
• Weight: Lightweight, combining strength with low density.
• Corrosion Resistance: Good corrosion resistance, though not as excellent as Grade 2 in some environments.
• Weldability: More challenging to weld compared to Grade 2, often requiring specific techniques.
• Applications: Widely used in aerospace, automotive, and medical implants due to its strength-to-weight ratio.

Titanium Grade 7

• Composition: Titanium alloyed with 0.15% palladium.
• Strength: Moderate strength, similar to Grade 2 (yield strength around 275 MPa or 40,000 psi).
• Corrosion Resistance: Excellent corrosion resistance, particularly in acidic environments, due to the presence of palladium.
• Weldability: Good weldability and formability, allowing for ease of fabrication.
• Applications: Commonly used in chemical processing, oil and gas, and marine environments where superior corrosion resistance is required.

Summary of All Three Grades

• Grade 2: Good weldability, excellent corrosion resistance, moderate strength.
• Grade 5: High strength, lightweight, more challenging to weld, suitable for demanding applications.
• Grade 7: Similar strength to Grade 2, enhanced corrosion resistance due to palladium, good weldability.

Advantages of ASTM B265 Gr5 Titanium Plates

ASTM B265 Gr5 titanium plates, primarily composed of Ti-6Al-4V, offer numerous advantages that make them suitable for a variety of demanding applications. Here are some key benefits:

1. High Strength-to-Weight Ratio

Gr5 titanium plates are known for their exceptional strength while remaining lightweight. This characteristic is particularly advantageous in industries like aerospace and automotive, where reducing weight can lead to improved fuel efficiency and performance.

2. Corrosion Resistance

Titanium is highly resistant to corrosion, making Gr5 plates ideal for applications in harsh environments, such as marine and chemical processing. This resistance prolongs the lifespan of components and reduces maintenance costs.

3. Versatile Fabricability

These plates can be easily machined, welded, and formed into complex shapes. This versatility allows manufacturers to create intricate components without compromising the material's integrity.

4. Biocompatibility

Gr5 titanium is biocompatible, making it suitable for medical applications, including implants and surgical instruments. Its compatibility with biological tissues ensures minimal adverse reactions in medical use.

5. Temperature Resistance

ASTM B265 Gr5 titanium plates maintain their mechanical properties at elevated temperatures, making them suitable for high-temperature applications in aerospace and industrial environments.

6. Fatigue Resistance

The alloy exhibits excellent fatigue resistance, which is crucial for components subjected to cyclic loading. This property enhances the reliability and durability of parts in demanding applications.

7. Recyclability

Titanium is highly recyclable, which contributes to sustainability efforts. At the end of their lifecycle, Gr5 titanium plates can be reclaimed and repurposed, reducing the need for raw material extraction.

Technical Parameters

Titanium Sheet and Plate

We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.

Production Standards:

Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.

Titanium Grades:

Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.

Titanium Sheet Surface Finishes:

Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.

The Importance of Corrosion Resistance

Corrosion can significantly impact the longevity and integrity of materials used in various industries. In environments where exposure to saltwater, chemicals, or high humidity is prevalent, traditional metals often succumb to rust and degradation. This results in costly repairs, replacements, and potential safety hazards. The corrosion resistance of Grade 7 titanium plate ensures that structures and components maintain their integrity over extended periods, reducing maintenance costs and downtime. As industries increasingly prioritize sustainable practices, the longevity of materials becomes a critical factor in reducing environmental impact and conserving resources.

Manufacturing Considerations for Polished Plates

The production process of 3mm Grade 7 titanium plates involves several stages, from raw material selection to final polishing. It begins with the careful sourcing of high-quality titanium and palladium, ensuring that the alloy's composition meets the necessary specifications for corrosion resistance. The sheets are then formed using advanced techniques such as hot rolling or cold working, which help achieve the desired thickness while maintaining the material’s mechanical properties. Subsequent annealing processes relieve internal stresses, enabling the plates to retain their strength and ductility.

Polishing is a critical step in the manufacturing process that enhances both the aesthetic and functional attributes of Grade 7 titanium plates. This process involves grinding and buffing the surface to create a smooth, reflective finish. The polished surface not only improves the visual appeal but also reduces the likelihood of surface imperfections that could harbor corrosion. Quality control measures are implemented throughout the manufacturing process, ensuring that the final product meets industry standards and specifications.

Manufacturing Considerations and Quality Control

Manufacturing pickled hot rolled titanium sheets requires careful attention to detail throughout the production process. Here are the key considerations and quality control measures:

1. Production Process

• Forging: The initial step where titanium is shaped under heat and pressure. This process enhances the material's mechanical properties and structure.
• Rolling: Hot rolling reduces the thickness of the titanium sheets while improving their uniformity and mechanical properties. The temperature and rolling speed must be closely monitored to prevent overheating, which can lead to unwanted microstructural changes.
• Heat Treatment: Post-rolling heat treatment is crucial for achieving the desired mechanical properties, such as strength and ductility. Parameters like temperature and duration are meticulously controlled to avoid defects.

2. Clean Production Environment

• Contamination Control: Titanium is highly reactive with elements like oxygen and nitrogen, which can lead to embrittlement and compromised performance. A clean environment, free from contaminants, is essential throughout the manufacturing process.
• Material Handling: Tools and surfaces that come into contact with titanium should be cleaned regularly to minimize contamination risks.

3. Welding and Fabrication Techniques

• TIG Welding: This specialized welding method is preferred for titanium due to its precision and ability to produce strong, clean welds. The process requires careful control of the heat input to avoid altering the material's properties.
• Shielding: Effective shielding from atmospheric contaminants during welding is critical. This typically involves using inert gases like argon to create a protective atmosphere around the weld area, preventing oxidation and contamination.

4. Quality Control Measures

• Non-Destructive Testing (NDT): Techniques such as ultrasonic testing and radiography are employed to detect internal flaws and ensure the integrity of the titanium sheets without damaging them.
• Surface Inspections: Regular inspections for surface defects, such as pitting or cracks, are conducted to maintain high-quality standards. This includes visual inspections and the use of surface analysis techniques.

5. Compliance with Standards

• Adhering to industry standards and specifications, such as ASTM B265, is essential to ensure that the titanium sheets meet the required performance criteria for their intended applications.

Sustainability and Environmental Impact

As industries face increasing pressure to adopt sustainable practices, the corrosion resistance of Grade 7 titanium plays a vital role in promoting environmental responsibility. Titanium itself is abundant in nature, and its durability means that products made from this material can have a significantly longer lifespan compared to those made from less robust metals. This longevity reduces the frequency of replacements and minimizes waste, contributing to a more sustainable manufacturing cycle. Additionally, the recyclability of titanium allows for efficient resource use, as scrap material can be reprocessed and repurposed.

Moreover, the reduced maintenance requirements associated with corrosion-resistant materials like Grade 7 titanium lead to lower operational costs and fewer resource inputs over time. Industries that incorporate these materials can thus contribute to lower overall environmental footprints while maintaining high standards of performance and safety. The ongoing development of eco-friendly manufacturing techniques also emphasizes the importance of selecting materials that align with sustainability goals, making Grade 7 titanium an increasingly attractive option.

Conclusion

In summary, pickled hot rolled titanium sheets, specifically ASTM B265 Grade 2 and Grade 5, represent a vital component of modern engineering across diverse industries. Their unique properties, including excellent corrosion resistance, high strength, and lightweight nature, make them indispensable in applications ranging from aerospace to medical implants. As the demand for advanced materials continues to grow, the significance of these titanium grades will only increase, driving innovation and efficiency in various sectors. Ultimately, the investment in titanium technology will yield substantial benefits, enhancing performance while promoting sustainability in manufacturing and engineering practices.
