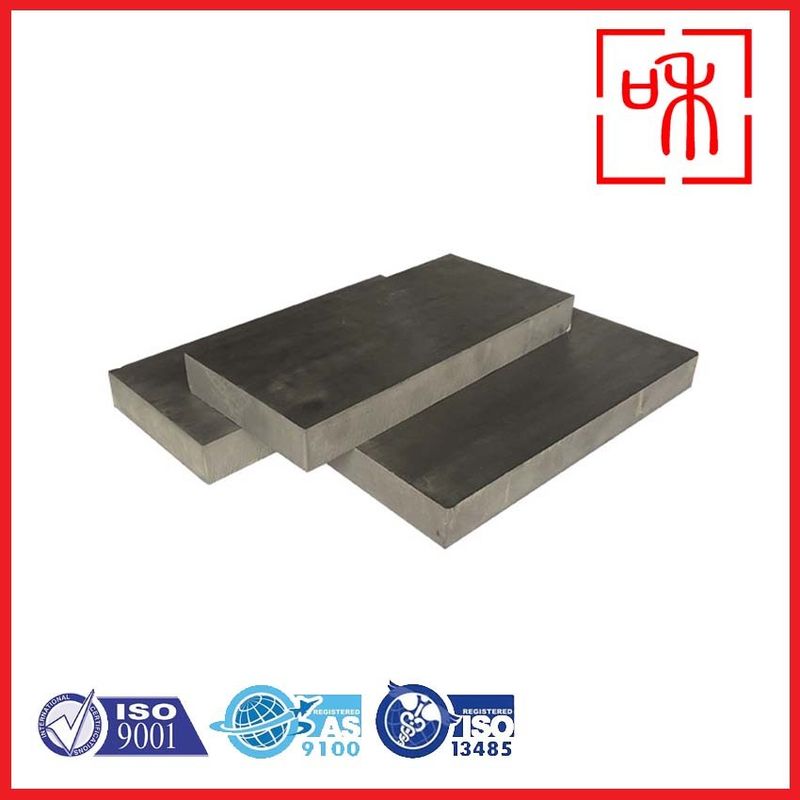

Titanium Plate And Sheet ASTM B265 Gr2 Gr 5 Gr7 For Manufacturing And Fabrication Applications

Product Introduction

Titanium is a highly regarded metal, celebrated for its exceptional strength, low density, and outstanding corrosion resistance. Among its various forms, pickled hot rolled titanium sheets—especially ASTM B265 Grade 2 and Grade 5—are extensively utilized across multiple industries, including aerospace, marine, chemical processing, and medical sectors. This article delves into the characteristics, manufacturing processes, and applications of these titanium plates, emphasizing their significance in modern engineering.

Characteristics of Titanium Sheets

1. High Strength-to-Weight Ratio:

   • Titanium’s strength-to-weight ratio is significantly higher than that of steel, making it an ideal choice for applications where weight savings are crucial, such as in aerospace components and automotive structures.

2. Corrosion Resistance:

   • Titanium is remarkably resistant to corrosion, particularly in harsh environments such as marine and chemical settings. This property prolongs the lifespan of components, reducing maintenance costs and downtime.

3. Biocompatibility:

   • Titanium's biocompatibility makes it an excellent material for medical implants and prosthetics, as it is well-tolerated by the human body and minimizes the risk of adverse reactions.

4. Thermal Stability:

   • The ability to withstand high temperatures without degrading its mechanical properties makes titanium suitable for high-performance applications in aerospace and industrial settings.

Understanding ASTM B265 Grades

Understanding ASTM B265 Grades of Titanium

ASTM B265 outlines the specifications for titanium and titanium alloy plates, sheets, and strips, and includes various grades, each tailored for specific applications based on their chemical and mechanical properties.

Grade 2 Titanium

• Composition: Commercially pure titanium with a minimum titanium content of 99%.
• Mechanical Properties:
  • Tensile Strength: Approximately 345 MPa (50,000 psi).
  • Ductility: Good, allowing for formability.
• Corrosion Resistance: Excellent, making it suitable for harsh environments, such as marine and chemical processing applications.
• Applications: Commonly used in industries where corrosion resistance is critical, including chemical processing, marine environments, and medical devices.

Grade 5 Titanium (Ti-6Al-4V)

• Composition: Titanium alloy with aluminum (6%) and vanadium (4%).
• Mechanical Properties:
  • Tensile Strength: Can reach up to 180 kg/mm² (1,800 MPa).
  • High Strength-to-Weight Ratio: Offers significant advantages in performance.
• Corrosion Resistance: Maintains excellent resistance, although slightly lower than Grade 2 due to the alloying elements.
• Applications: Widely used in aerospace, automotive, and high-performance engineering applications where strength and weight efficiency are crucial.

Technical Parameters

Titanium Sheet and Plate

We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.

Production Standards:

Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.

Titanium Grades:

Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.

Titanium Sheet Surface Finishes:

Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.

The Importance of Corrosion Resistance

Corrosion can significantly impact the longevity and integrity of materials used in various industries. In environments where exposure to saltwater, chemicals, or high humidity is prevalent, traditional metals often succumb to rust and degradation. This results in costly repairs, replacements, and potential safety hazards. The corrosion resistance of Grade 7 titanium plate ensures that structures and components maintain their integrity over extended periods, reducing maintenance costs and downtime. As industries increasingly prioritize sustainable practices, the longevity of materials becomes a critical factor in reducing environmental impact and conserving resources.

Applications of Polished Grade 7 Titanium Plates

The polished surface of 3mm Grade 7 titanium plates enhances both functionality and aesthetics, making them suitable for diverse applications. In the aerospace sector, these plates are utilized for components that require a combination of lightweight properties and high strength. The polished finish not only provides a visually appealing look but also creates a smoother surface that can reduce drag in certain applications. Similarly, in the medical field, polished Grade 7 titanium is favored for implants and prosthetics due to its biocompatibility, strength, and corrosion resistance, ensuring safety for patients.

In the chemical processing industry, Grade 7 titanium plates are indispensable due to their ability to withstand corrosive substances. They are often employed in manufacturing reactors, heat exchangers, and piping systems, where exposure to harsh chemicals is routine. The polished finish further enhances cleanliness and hygiene, which are crucial aspects in food processing and pharmaceuticals. This versatility underscores the importance of Grade 7 titanium as a material that meets stringent industry requirements while providing long-lasting performance.

Manufacturing Considerations for Polished Plates

The production process of 3mm Grade 7 titanium plates involves several stages, from raw material selection to final polishing. It begins with the careful sourcing of high-quality titanium and palladium, ensuring that the alloy's composition meets the necessary specifications for corrosion resistance. The sheets are then formed using advanced techniques such as hot rolling or cold working, which help achieve the desired thickness while maintaining the material’s mechanical properties. Subsequent annealing processes relieve internal stresses, enabling the plates to retain their strength and ductility.

Polishing is a critical step in the manufacturing process that enhances both the aesthetic and functional attributes of Grade 7 titanium plates. This process involves grinding and buffing the surface to create a smooth, reflective finish. The polished surface not only improves the visual appeal but also reduces the likelihood of surface imperfections that could harbor corrosion. Quality control measures are implemented throughout the manufacturing process, ensuring that the final product meets industry standards and specifications.

Manufacturing Considerations and Quality Control

Manufacturing pickled hot rolled titanium sheets requires careful attention to detail throughout the production process. Here are the key considerations and quality control measures:

1. Production Process

• Forging: The initial step where titanium is shaped under heat and pressure. This process enhances the material's mechanical properties and structure.
• Rolling: Hot rolling reduces the thickness of the titanium sheets while improving their uniformity and mechanical properties. The temperature and rolling speed must be closely monitored to prevent overheating, which can lead to unwanted microstructural changes.
• Heat Treatment: Post-rolling heat treatment is crucial for achieving the desired mechanical properties, such as strength and ductility. Parameters like temperature and duration are meticulously controlled to avoid defects.

2. Clean Production Environment

• Contamination Control: Titanium is highly reactive with elements like oxygen and nitrogen, which can lead to embrittlement and compromised performance. A clean environment, free from contaminants, is essential throughout the manufacturing process.
• Material Handling: Tools and surfaces that come into contact with titanium should be cleaned regularly to minimize contamination risks.

3. Welding and Fabrication Techniques

• TIG Welding: This specialized welding method is preferred for titanium due to its precision and ability to produce strong, clean welds. The process requires careful control of the heat input to avoid altering the material's properties.
• Shielding: Effective shielding from atmospheric contaminants during welding is critical. This typically involves using inert gases like argon to create a protective atmosphere around the weld area, preventing oxidation and contamination.

4. Quality Control Measures

• Non-Destructive Testing (NDT): Techniques such as ultrasonic testing and radiography are employed to detect internal flaws and ensure the integrity of the titanium sheets without damaging them.
• Surface Inspections: Regular inspections for surface defects, such as pitting or cracks, are conducted to maintain high-quality standards. This includes visual inspections and the use of surface analysis techniques.

5. Compliance with Standards

• Adhering to industry standards and specifications, such as ASTM B265, is essential to ensure that the titanium sheets meet the required performance criteria for their intended applications.

Sustainability and Environmental Impact

As industries face increasing pressure to adopt sustainable practices, the corrosion resistance of Grade 7 titanium plays a vital role in promoting environmental responsibility. Titanium itself is abundant in nature, and its durability means that products made from this material can have a significantly longer lifespan compared to those made from less robust metals. This longevity reduces the frequency of replacements and minimizes waste, contributing to a more sustainable manufacturing cycle. Additionally, the recyclability of titanium allows for efficient resource use, as scrap material can be reprocessed and repurposed.

Moreover, the reduced maintenance requirements associated with corrosion-resistant materials like Grade 7 titanium lead to lower operational costs and fewer resource inputs over time. Industries that incorporate these materials can thus contribute to lower overall environmental footprints while maintaining high standards of performance and safety. The ongoing development of eco-friendly manufacturing techniques also emphasizes the importance of selecting materials that align with sustainability goals, making Grade 7 titanium an increasingly attractive option.

Support and Services

Titanium Plate provides technical support and service to its customers through a comprehensive range of support options.

Customers can access technical support and service by contacting Titanium Plate's customer service team directly. Our team is available to answer any questions or concerns, provide product and technical support, and provide helpful guidance. Our team can be contacted by phone, email, or live chat.

In addition, Titanium Plate provides customers with online access to product and user guides, tutorials, frequently asked questions, and access to our knowledge base. This helps customers quickly and easily find solutions to their questions or issues.

We also provide customers with access to our online forums. Here customers can discuss product features, ask questions, and offer feedback. Our forums are moderated by our team to ensure customers receive the support they need.

Conclusion

In summary, pickled hot rolled titanium sheets, specifically ASTM B265 Grade 2 and Grade 5, represent a vital component of modern engineering across diverse industries. Their unique properties, including excellent corrosion resistance, high strength, and lightweight nature, make them indispensable in applications ranging from aerospace to medical implants. As the demand for advanced materials continues to grow, the significance of these titanium grades will only increase, driving innovation and efficiency in various sectors. Ultimately, the investment in titanium technology will yield substantial benefits, enhancing performance while promoting sustainability in manufacturing and engineering practices.
