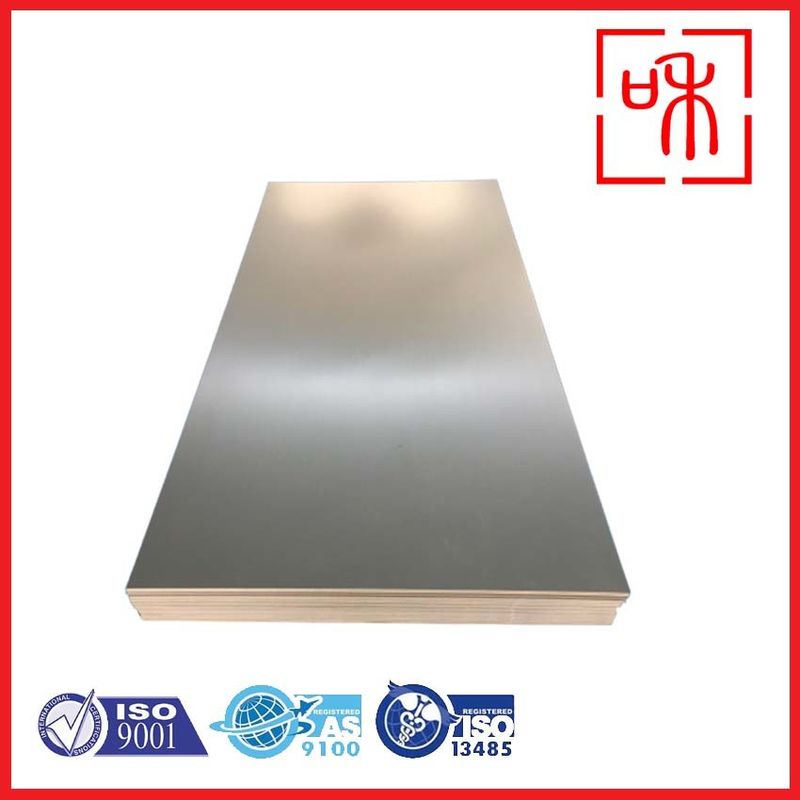

Titanium Sheet Metal ASTM B265 Grade 2 And Grade 5 Titanium Plate For Chemical Exposure And Industry Usages

Titanium is a remarkable metal known for its exceptional strength, low density, and outstanding corrosion resistance. Among the various forms in which titanium is produced, pickled hot rolled titanium sheets, particularly ASTM B265 Grade 2 and Grade 5, are widely utilized across several industries, including aerospace, marine, chemical processing, and medical applications. This article explores the characteristics, manufacturing processes, and applications of these titanium plates, highlighting their significance in modern engineering.

Understanding ASTM B265 Grades

Understanding ASTM B265 Grades of Titanium

ASTM B265 outlines the specifications for titanium and titanium alloy plates, sheets, and strips, and includes various grades, each tailored for specific applications based on their chemical and mechanical properties.

Grade 2 Titanium

• Composition: Commercially pure titanium with a minimum titanium content of 99%.
• Mechanical Properties:
  • Tensile Strength: Approximately 345 MPa (50,000 psi).
  • Ductility: Good, allowing for formability.
• Corrosion Resistance: Excellent, making it suitable for harsh environments, such as marine and chemical processing applications.
• Applications: Commonly used in industries where corrosion resistance is critical, including chemical processing, marine environments, and medical devices.

Grade 5 Titanium (Ti-6Al-4V)

• Composition: Titanium alloy with aluminum (6%) and vanadium (4%).
• Mechanical Properties:
  • Tensile Strength: Can reach up to 180 kg/mm² (1,800 MPa).
  • High Strength-to-Weight Ratio: Offers significant advantages in performance.
• Corrosion Resistance: Maintains excellent resistance, although slightly lower than Grade 2 due to the alloying elements.
• Applications: Widely used in aerospace, automotive, and high-performance engineering applications where strength and weight efficiency are crucial.

The Pickling Process

Pickling is a crucial step in the manufacturing of hot rolled titanium sheets, designed to remove surface impurities, oxides, and contaminants that may have accumulated during processing. The pickling process typically involves immersing the titanium sheets in a chemical solution, often composed of acids like hydrochloric or sulfuric acid. This treatment not only cleans the surface but also enhances the material's properties, ensuring better adhesion for coatings and improved overall performance.

The pickling process for titanium is especially important because titanium’s oxide layer can affect its weldability and corrosion resistance. By effectively removing this oxide layer, the pickled sheets exhibit enhanced properties, making them more suitable for applications requiring high reliability and durability. Moreover, pickled titanium sheets often display a more uniform surface finish, which is vital for aesthetic and functional purposes in many applications.

Technical Parameters:

Titanium Sheet and Plate

We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.

Production Standards:

Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.

Titanium Grades:

Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.

Titanium Sheet Surface Finishes:

Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.

Applications in Aerospace and Marine Industries

The unique properties of ASTM B265 Grade 2 and Grade 5 titanium sheets make them indispensable in the aerospace industry. Grade 2 is commonly used in components that demand excellent corrosion resistance without the necessity for extreme strength. Examples include airframe structures, fasteners, and engine parts. Its ease of fabrication and welding further contribute to its widespread use in this sector, where lightweight materials are essential for improving fuel efficiency and overall performance.

Grade 5 titanium, with its superior strength and ability to withstand high temperatures, is utilized in critical aerospace applications such as turbine blades, landing gear, and structural components of aircraft. The rigorous demands of the aerospace industry necessitate materials that can endure significant stress while remaining lightweight. Similarly, in the marine environment, both grades are used extensively due to their outstanding resistance to seawater corrosion. Grade 2 is often found in piping and pressure vessels, while Grade 5 is preferred for components that require higher strength, such as propeller shafts and hull fittings.

Chemical Processing and Medical Applications

The chemical processing industry frequently relies on the corrosion-resistant capabilities of titanium, particularly ASTM B265 Grade 2. Its resistance to a wide range of corrosive substances, including acids and chlorides, makes it an ideal choice for heat exchangers, reactors, and storage tanks. The longevity and reliability of titanium components reduce maintenance costs and downtime, which is critical in chemical manufacturing processes where equipment failure can lead to significant financial losses.

In the medical field, titanium's biocompatibility has led to its widespread use in implants and surgical instruments. ASTM B265 Grade 5 is particularly sought after for orthopedic devices and dental implants due to its strength and lightweight nature. These properties are crucial for load-bearing applications, where minimizing weight can significantly improve patient comfort and recovery outcomes. Additionally, the corrosion resistance of titanium ensures that implants maintain their integrity over time, reducing the risk of complications.

Manufacturing Considerations and Quality Control

Manufacturing pickled hot rolled titanium sheets requires careful attention to detail throughout the production process. Here are the key considerations and quality control measures:

1. Production Process

• Forging: The initial step where titanium is shaped under heat and pressure. This process enhances the material's mechanical properties and structure.
• Rolling: Hot rolling reduces the thickness of the titanium sheets while improving their uniformity and mechanical properties. The temperature and rolling speed must be closely monitored to prevent overheating, which can lead to unwanted microstructural changes.
• Heat Treatment: Post-rolling heat treatment is crucial for achieving the desired mechanical properties, such as strength and ductility. Parameters like temperature and duration are meticulously controlled to avoid defects.

2. Clean Production Environment

• Contamination Control: Titanium is highly reactive with elements like oxygen and nitrogen, which can lead to embrittlement and compromised performance. A clean environment, free from contaminants, is essential throughout the manufacturing process.
• Material Handling: Tools and surfaces that come into contact with titanium should be cleaned regularly to minimize contamination risks.

3. Welding and Fabrication Techniques

• TIG Welding: This specialized welding method is preferred for titanium due to its precision and ability to produce strong, clean welds. The process requires careful control of the heat input to avoid altering the material's properties.
• Shielding: Effective shielding from atmospheric contaminants during welding is critical. This typically involves using inert gases like argon to create a protective atmosphere around the weld area, preventing oxidation and contamination.

4. Quality Control Measures

• Non-Destructive Testing (NDT): Techniques such as ultrasonic testing and radiography are employed to detect internal flaws and ensure the integrity of the titanium sheets without damaging them.
• Surface Inspections: Regular inspections for surface defects, such as pitting or cracks, are conducted to maintain high-quality standards. This includes visual inspections and the use of surface analysis techniques.

5. Compliance with Standards

• Adhering to industry standards and specifications, such as ASTM B265, is essential to ensure that the titanium sheets meet the required performance criteria for their intended applications.

Economic and Environmental Impact

While the initial cost of titanium plates can be higher than that of traditional metals, their long-term benefits often justify the investment. The durability and corrosion resistance of titanium lead to lower maintenance costs and extended service life, making it a cost-effective solution in demanding environments. Furthermore, as industries increasingly focus on sustainability, titanium's recyclability adds to its appeal. Used titanium can be melted down and repurposed, minimizing waste and promoting environmentally responsible practices.

The growing emphasis on lightweight materials in various industries aligns with the properties of titanium, making it a key player in the drive for improved efficiency and reduced environmental impact. As technologies advance and new applications for titanium emerge, the demand for pickled hot rolled titanium sheets, particularly ASTM B265 Grade 2 and Grade 5, is expected to continue rising, contributing positively to both economic and environmental objectives.

Conclusion

In summary, pickled hot rolled titanium sheets, specifically ASTM B265 Grade 2 and Grade 5, represent a vital component of modern engineering across diverse industries. Their unique properties, including excellent corrosion resistance, high strength, and lightweight nature, make them indispensable in applications ranging from aerospace to medical implants. As the demand for advanced materials continues to grow, the significance of these titanium grades will only increase, driving innovation and efficiency in various sectors. Ultimately, the investment in titanium technology will yield substantial benefits, enhancing performance while promoting sustainability in manufacturing and engineering practices.
