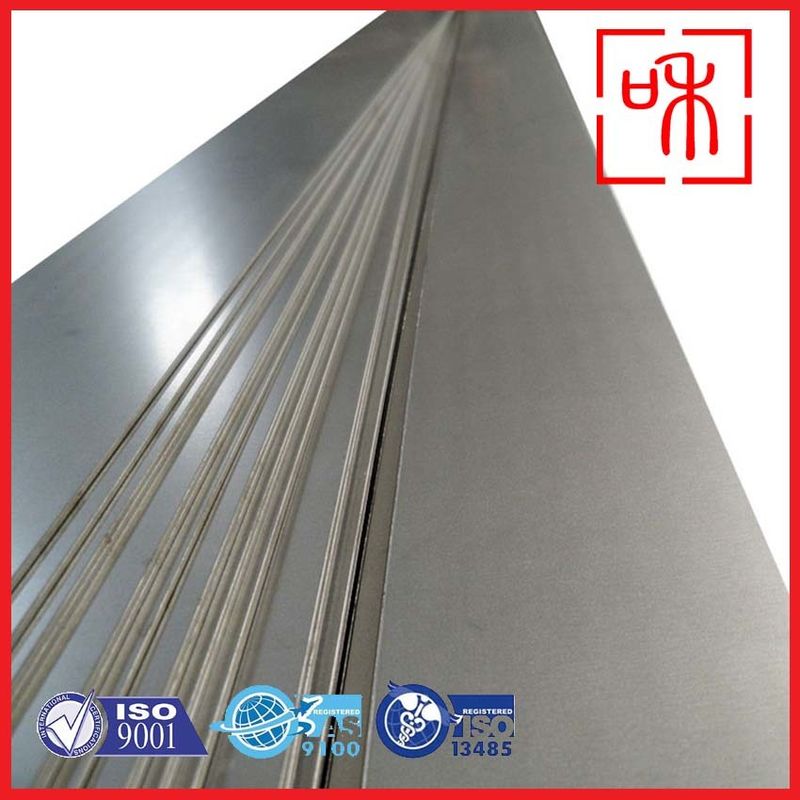

Titanium Medical Implant Titanium Metal Plate Gr5 Gr7 Titanium Plate 0.7mm Thickness For Versatile Performance

Product Description:

ASTM B265 specifies the requirements for titanium and titanium alloy plates and sheets. Grade 5 (Ti-6Al-4V) and Grade 7 (Ti-0.2Pd) titanium alloys are particularly suitable for medical applications due to their biocompatibility, strength, and corrosion resistance. This document explores their characteristics and suitable techniques for fabricating 0.5mm thick plates and sheets for medical uses.

Material Characteristics

1. Grade 5 (Ti-6Al-4V)

   • Composition: 90% titanium, 6% aluminum, 4% vanadium.
   • Properties:
     • High strength-to-weight ratio.
     • Good fatigue resistance and ductility.
     • Biocompatibility, making it ideal for implants and prosthetics.
   • Common Uses: Orthopedic implants, dental devices, and surgical instruments.

2. Grade 7 (Ti-0.2Pd)

   • Composition: 90% titanium, 0.2% palladium.
   • Properties:
     • Enhanced corrosion resistance, particularly in acidic environments.
     • Good mechanical properties, although slightly lower than Grade 5.
   • Common Uses: Medical devices exposed to harsh conditions, such as heat exchangers and valves.

Fabrication Techniques for 0.5mm Thickness

1. Cutting:

   • Laser Cutting: Offers high precision and clean edges, making it suitable for intricate designs.
   • Water Jet Cutting: Useful for thick materials; minimizes thermal distortion.
   • Mechanical Cutting: Can be used but may require additional finishing due to edge quality.

2. Forming:

   • Cold Working: Suitable for thin sheets; techniques include bending and stamping.
   • Hot Forming: May be used for more complex shapes, but careful temperature control is essential to prevent damage to the material properties.

3. Welding:

   • TIG Welding: Preferred for its ability to create clean, strong joints. Requires an inert gas shield to prevent oxidation.
   • Plasma Arc Welding: Offers precision and is suitable for thin sections.

4. Finishing:

   • Surface Treatment: Anodizing or passivation can enhance corrosion resistance and improve biocompatibility.
   • Polishing: Achieves a smooth surface finish, which is critical for medical applications to reduce bacterial adhesion.

Features:

Titanium plates are widely used across various industries due to their unique properties. Firstly, they have a high strength-to-weight ratio, being significantly lighter than steel while maintaining comparable strength, making them ideal for applications with strict weight requirements. Additionally, titanium exhibits exceptional corrosion resistance, particularly in marine and chemical environments, effectively extending the lifespan of components made from it. Its biocompatibility makes titanium suitable for medical applications, such as implants and prosthetics. It can also withstand high temperatures without losing its mechanical properties, which is advantageous in aerospace and industrial applications.

Titanium plates are also relatively easy to weld, allowing for versatile fabrication and assembly. Their good ductility enables them to be formed into complex shapes without cracking. Furthermore, titanium's low coefficient of thermal expansion ensures stability under varying temperature conditions, which is crucial for precision applications. While titanium is not as conductive as metals like copper, it still possesses adequate electrical conductivity for certain applications. Finally, titanium plates demonstrate excellent fatigue resistance, making them suitable for use in cyclic loading applications, such as aerospace components. Therefore, titanium plates excel in multiple fields due to their strength, lightweight nature, and resistance to environmental factors.

Introduction to Ti-6Al-4V Grade 5 Titanium

Ti-6Al-4V, commonly known as Grade 5 titanium, is one of the most widely used titanium alloys due to its exceptional combination of strength, lightweight characteristics, and corrosion resistance. Here’s an overview of its properties, composition, and applications.

Composition

Grade 5 titanium consists of:

• Titanium (Ti): Approximately 90%
• Aluminum (Al): About 6%
• Vanadium (V): Around 4%

This specific composition enhances the mechanical properties of titanium, making it suitable for a variety of demanding applications.

Mechanical Properties

• Strength: Ti-6Al-4V exhibits a high tensile strength, typically around 880 MPa (127 ksi) for the alpha-beta phase. This high strength-to-weight ratio makes it particularly valuable in aerospace and other engineering applications.
• Ductility: It offers good ductility, which allows for easy forming and machining.
• Fatigue Resistance: The alloy has excellent fatigue resistance, making it suitable for components subjected to cyclic loads.

Corrosion Resistance

Grade 5 titanium demonstrates excellent resistance to a wide range of corrosive environments, including seawater and various chemical exposures. This property is crucial in applications like marine, chemical processing, and medical devices.

Fabrication

Ti-6Al-4V is known for its versatility in fabrication. It can be easily welded, machined, and formed into complex shapes. However, special care must be taken during welding to avoid issues such as alpha case formation.

Technical Parameters:

Titanium Sheet and Plate

We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.

Production Standards:

Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.

Titanium Grades:

Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.

Titanium Sheet Surface Finishes:

Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.

Properties of ASTM B265 Gr5  Gr7 Titanium Plates

Properties of ASTM B265 Gr5 and Gr7 Titanium Plates

Grade 5 (Ti-6Al-4V)

1. Chemical Composition:

   • Titanium: ~90%
   • Aluminum: ~6%
   • Vanadium: ~4%

2. Mechanical Properties:

   • Tensile Strength: Approximately 880 MPa (127 ksi).
   • Yield Strength: Around 790 MPa (114 ksi).
   • Elongation: 10-15% (depending on heat treatment).
   • Hardness: Typically 330-370 HB.

3. Corrosion Resistance: Excellent resistance to seawater, chemical environments, and oxidation.

4. Ductility: Good ductility, allowing for forming and machining.

5. Fatigue Resistance: High fatigue strength, suitable for dynamic loads.

Grade 7 (Ti-0.2Pd)

1. Chemical Composition:

   • Titanium: ~90%
   • Palladium: ~0.2%

2. Mechanical Properties:

   • Tensile Strength: Approximately 850 MPa (123 ksi).
   • Yield Strength: Around 780 MPa (113 ksi).
   • Elongation: Similar to Grade 5, about 10-15%.
   • Hardness: Typically 250-300 HB.

3. Corrosion Resistance: Superior resistance to corrosion, particularly in acidic environments due to the addition of palladium.

4. Ductility: Maintains good ductility, suitable for forming and shaping.

5. Fatigue Resistance: Comparable to Grade 5 but with a focus on corrosion resistance in harsh conditions.

Differences between Grade 5 and Grade 7 Titanium Plate

Grade 5 and Grade 7 titanium plates are both popular titanium alloys, but they have distinct differences in composition, properties, and applications. Here’s a breakdown of their main differences:

Composition

• Grade 5 (Ti-6Al-4V): This alloy contains 90% titanium, 6% aluminum, and 4% vanadium. The addition of aluminum enhances strength and weight reduction, while vanadium contributes to improved corrosion resistance and weldability.

• Grade 7 (Ti-0.2Pd): This alloy consists of 90% titanium and 0.2% palladium. The palladium enhances corrosion resistance, especially in reducing environments, making it particularly effective in chemical processing applications.

Mechanical Properties

• Strength: Grade 5 is known for its high strength-to-weight ratio, making it ideal for applications requiring lightweight yet strong materials. It has a yield strength of about 880 MPa (127 ksi).

• Corrosion Resistance: Grade 7 exhibits superior corrosion resistance compared to Grade 5, especially in acidic environments. This makes it suitable for applications in chemical and petrochemical industries.

Fabrication and Weldability

• Weldability: Grade 5 has good weldability but requires careful control of heat during welding to prevent the formation of alpha case and other issues.

• Grade 7: While also weldable, the presence of palladium can affect the welding process, and additional care may be necessary to maintain corrosion resistance.

Applications

• Grade 5: Commonly used in aerospace, automotive, and medical applications, where strength and lightweight characteristics are critical. Applications include airframe components, engine parts, and surgical implants.

• Grade 7: Primarily used in chemical processing, marine environments, and other applications where enhanced corrosion resistance is crucial. Common applications include heat exchangers, pressure vessels, and components in chlorine and sulfuric acid processing.

Manufacturing Considerations for 0.5mm Titanium Plates

The production of ASTM B265 titanium plates, especially at a thickness of 0.5mm, requires advanced manufacturing techniques to ensure quality and performance. Cold rolling is often employed to achieve the desired thickness while enhancing the mechanical properties of the material. This process allows for precise control over the dimensions and surface finish of the plates, which is essential in applications requiring tight tolerances. Furthermore, the cold working of titanium helps in refining its microstructure, leading to improved strength and toughness.

Quality control is paramount during the manufacturing process of Gr5 and Gr7 plates. Rigorous testing for mechanical properties, corrosion resistance, and dimensional accuracy is necessary to meet ASTM standards. Manufacturers often utilize techniques such as ultrasonic testing and eddy current testing to detect any potential defects in the material. These quality assurance measures ensure that the final product not only meets industry specifications but also performs reliably in demanding applications.

Sustainability and Future Trends

As industries increasingly prioritize sustainability, titanium alloys like Gr5 and Gr7 are well-positioned to meet these objectives due to their inherent properties. Here’s an overview of how these materials align with sustainability goals and future trends in their applications.

Sustainability Benefits

1. Durability and Longevity:

   • Titanium’s exceptional resistance to corrosion and fatigue leads to longer-lasting products. This durability translates into reduced waste and lower environmental impact, as fewer replacements are needed over time.

2. Lightweight Nature:

   • The lightweight characteristic of titanium alloys contributes to energy efficiency, particularly in transportation applications. Lighter materials reduce fuel consumption and emissions in aerospace and automotive sectors, supporting greener practices.

3. Recyclability:

   • Titanium is highly recyclable, allowing for the recovery and reuse of material at the end of a product’s life cycle. This aligns with circular economy principles, further enhancing the sustainability profile of titanium alloys.

Future Trends

1. Advancements in Alloy Development:

   • Ongoing research into titanium alloy formulations may enhance properties such as strength, ductility, and corrosion resistance, broadening the range of applications for Gr5 and Gr7 plates.

2. Innovations in Manufacturing Processes:

   • Techniques like additive manufacturing (3D printing) are being explored to create complex geometries and lightweight structures that traditional methods cannot achieve. This could open new avenues for using titanium in aerospace, medical devices, and beyond.

3. Increased Demand for High-Performance Materials:

   • As industries seek to enhance performance and sustainability, the demand for high-performance materials like ASTM B265 titanium plates is expected to grow. This demand will likely drive continued innovation and investment in research to optimize material properties and processing techniques.

4. Integration of Smart Technologies:

   • Future developments may include the integration of smart technologies in titanium components, such as sensors and monitoring systems, enhancing functionality and performance in various applications.

Conclusion

In summary, ASTM B265 Gr5 and Gr7 titanium plate sheets at a thickness of 0.5mm offer an array of benefits across diverse industries. Their exceptional mechanical properties, corrosion resistance, and lightweight nature make them ideal choices for demanding applications in aerospace, chemical processing, and medical fields. As manufacturing technologies advance, and sustainability becomes a priority, the relevance of these titanium alloys will only continue to grow. By understanding the unique attributes of Gr5 and Gr7 titanium plates, industries can leverage their advantages to enhance performance and efficiency in their operations.
