Place of Origin:
Xi'an,China
Brand Name:
FHH
We can supply a broad selection of titanium sheets and plates for fabrication and engineering applications. Sheets can be cut precisely according to your needs and are available in a variety of surface finishes. We adhere to the following production standards: ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860.
The titanium grades we offer include Gr1, Gr2, Gr10 or 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), and so on.

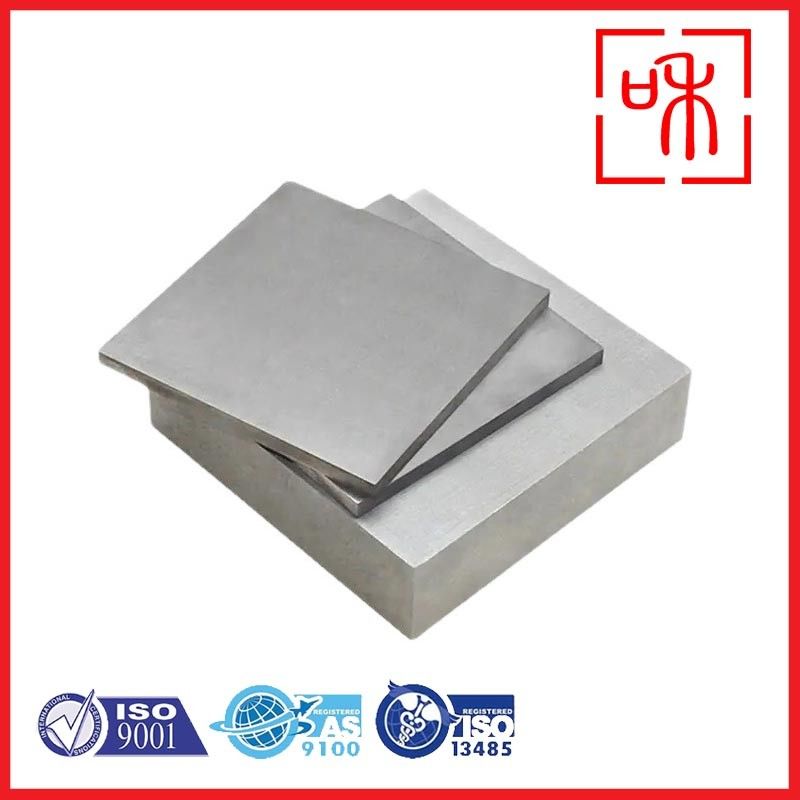

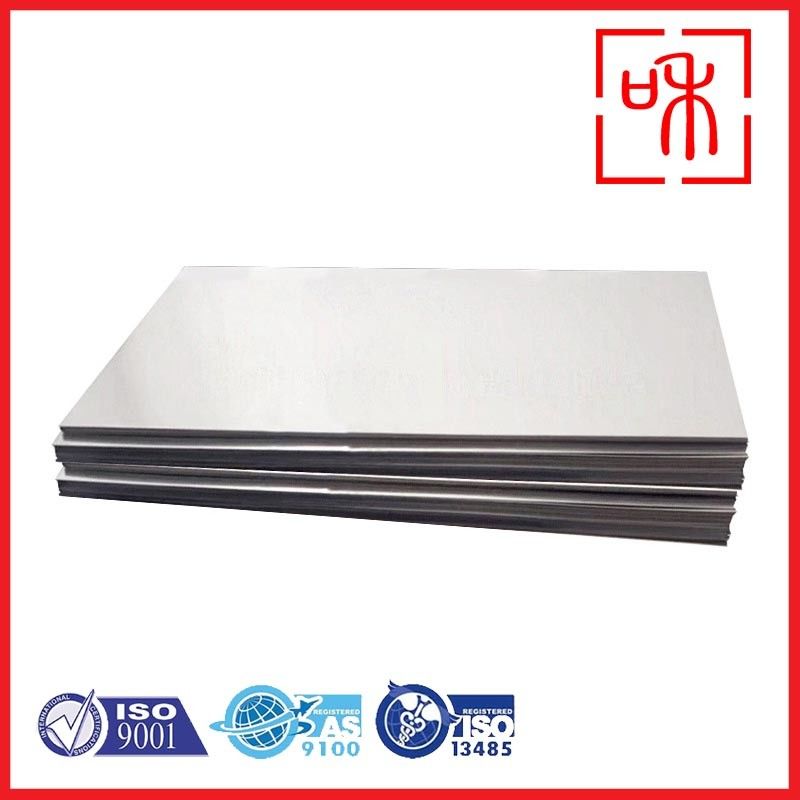

Titanium Sheet and Plate
We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.
Production Standards:
Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.
Titanium Grades:
Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.
Titanium Sheet Surface Finishes:
Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.
| Apart from the products listed below, other available metal products are not listed here. Other metal products USTi can manufacture and supply include Tantalum, Niobium, Zirconium, Hafnium, Nickel, Copper etc., which are mainly in the form of Plate, Bar and Tube. | |||
| Products | Processing Standard | Grade | Size |
| Titanium Plate, Sheet, Coil | ASME SB265, AMS 4911, AMS 4919, AMS 4914 ASTM F67, ASTM F136 |
GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12, GR16, GR17, GR23, Ti-6Al-4V ELI, Ti-6-2-4-2, Ti-15-3-3-3 |
Thickness: (0.0197”-6”) Max Width: 12 feet Max Length: 50 feet |
|
Titanium Foil |
ASME SB265 |
GR1, GR2, GR5
|
(0.001”-0.004”) x 4.8” x coil (0.004”-0.01”) x 18” x coil (0.012”-0.0158”) x 48” x coil |
Titanium Plates, produced by FHH from Xi'an, China, are available in a minimum order quantity of 200kgs and are packed for seaworth shipment materials for delivery within 5-8 days. Payment options such as L/C, D/P, T/T are accepted, and the supply ability is 1000pcs/month. The product has excellent corrosion resistance and meets standards such as ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, DIN 17860, GB, JS. The technology used in its production is either cold rolling or hot rolling, and it offers high resistance to heat. Its surface can be polished, milled, pickled, painted, brushed, or blasted.
Titanium Plate provides technical support and service to its customers through a comprehensive range of support options.
Customers can access technical support and service by contacting Titanium Plate's customer service team directly. Our team is available to answer any questions or concerns, provide product and technical support, and provide helpful guidance. Our team can be contacted by phone, email, or live chat.
In addition, Titanium Plate provides customers with online access to product and user guides, tutorials, frequently asked questions, and access to our knowledge base. This helps customers quickly and easily find solutions to their questions or issues.
We also provide customers with access to our online forums. Here customers can discuss product features, ask questions, and offer feedback. Our forums are moderated by our team to ensure customers receive the support they need.
Packaging and Shipping for Titanium Plate:
Titanium plate will be packaged in shrink-wrapped pallets with cardboard separators to ensure the product is not damaged during shipping. The pallets will then be shrink-wrapped and secured with plastic straps to ensure the product is even more secure. The pallets will then be loaded onto a truck or freight train for shipping to the desired location.
Grade 5 titanium, also known as Ti-6Al-4V, is one of the most widely used titanium alloys due to its exceptional strength-to-weight ratio and corrosion resistance. Composed of approximately 90% titanium, 6% aluminum, and 4% vanadium, this alloy is renowned for its mechanical properties, making it suitable for various applications, including aerospace, marine, and medical fields. The ability of Gr5 titanium to withstand harsh environments while maintaining structural integrity makes it an ideal choice for components exposed to aggressive elements. Additionally, the hot rolling and pickling processes enhance its surface characteristics, further improving its performance in corrosive conditions.
Hot rolling is a manufacturing process that involves shaping metal at high temperatures, typically above its recrystallization point. This technique allows for significant deformation and results in improved mechanical properties such as toughness and ductility. For Gr5 titanium, hot rolling not only facilitates the formation of plates but also refines the microstructure, leading to enhanced strength. The heat treatment involved during hot rolling helps eliminate internal stresses, resulting in a more uniform material that exhibits consistent performance across various applications.
The hot rolling process also affects the surface finish of the titanium plate. While the initial surface may have scale or oxides, subsequent processing steps like pickling can prepare the surface for optimal performance. The combination of hot rolling and pickling enhances the overall quality of Gr5 titanium plates, ensuring they meet strict industry standards for durability and reliability. This is particularly vital in industries where failure is not an option, such as aerospace and medical devices.
Pickling is a chemical treatment used to remove impurities, oxides, and scales from metal surfaces. In the case of Gr5 titanium plates, pickling involves immersing the hot-rolled material in an acid solution, which effectively cleans the surface without compromising the underlying structure. This process is crucial for enhancing the corrosion resistance of titanium, as it removes any contaminants that could lead to localized corrosion. By achieving a clean and smooth surface, pickling significantly improves the titanium’s ability to resist environmental factors that typically cause corrosion.
The benefits of pickling extend beyond just aesthetics; they play a vital role in the titanium's performance. A well-treated surface minimizes the risk of galvanic corrosion, which can occur when dissimilar metals are in contact in the presence of an electrolyte. By providing a clean surface free of oxides, pickled Gr5 titanium plates are better equipped to withstand harsh environments, increasing their lifespan and reliability in critical applications. This surface treatment is essential in ensuring that the material performs as expected under various conditions.
One of the standout features of Gr5 titanium is its exceptional corrosion resistance, which is primarily attributed to the formation of a protective oxide layer on its surface. When exposed to oxygen, titanium naturally forms a thin, stable oxide layer that acts as a barrier against further oxidation and corrosion. This passive layer is highly adherent and self-healing, meaning that if it is damaged, it can regenerate in the presence of oxygen. The corrosion resistance of titanium alloys like Gr5 is significantly superior to that of conventional metals such as steel, making them ideal for use in aggressive environments.
In practical applications, the corrosion resistance of Gr5 titanium plates has been demonstrated in various environments, including seawater, acidic solutions, and high-temperature applications. This capability makes Gr5 titanium a preferred choice for components in offshore structures, chemical processing plants, and even biomedical implants. The longevity of Gr5 titanium parts translates to reduced maintenance costs and downtime, which is particularly valuable in critical industries where reliability is paramount. The combination of hot rolling and pickling further enhances this resistance, ensuring that the material can withstand prolonged exposure to corrosive agents.
The unique properties of Gr5 titanium plates make them suitable for a wide range of applications across different industries. In aerospace, they are often used for structural components, engine parts, and fasteners due to their lightweight and high-strength characteristics. The corrosion resistance of Gr5 titanium ensures that these components can survive the demanding conditions of flight, including exposure to moisture and varying temperatures. Similarly, in the medical field, Gr5 titanium is widely utilized for implants and prosthetics because of its biocompatibility and resistance to bodily fluids.
Moreover, the marine industry benefits greatly from the use of Gr5 titanium plates in various applications, including shipbuilding and subsea equipment. The corrosion resistance of titanium is invaluable in preventing degradation caused by saltwater exposure, thus extending the service life of marine structures and components. Additionally, the oil and gas sector employs Gr5 titanium for downhole tubing and valves, where the material's ability to resist sour environments is crucial. These diverse applications highlight the versatility and reliability of Gr5 titanium plates in challenging environments.
As industries continue to evolve and seek materials that offer both strength and corrosion resistance, Gr5 titanium plates with hot rolled pickling surfaces are becoming increasingly important. The combination of advanced manufacturing processes and the inherent properties of titanium ensures that these materials meet the rigorous demands of modern applications. With ongoing research and development focused on enhancing titanium alloys, the future of Gr5 titanium looks promising, particularly in sectors that prioritize durability and sustainability.
In summary, the hot rolling and pickling processes significantly enhance the performance of Gr5 titanium plates, making them a top choice for applications requiring exceptional corrosion resistance. As technological advancements continue to unfold, the potential for Gr5 titanium to revolutionize various industries remains immense, solidifying its position as a leading material in the fight against corrosion.
