Place of Origin:
Xi'an,China
Brand Name:
FHH
Titanium alloys have become increasingly popular in various industries due to their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. Among these, Grade 5 titanium, also known as Ti-6Al-4V, stands out for its versatile applications in aerospace, medical, and industrial sectors. The cold rolled polished flat titanium metal sheet with a thickness of 0.7mm offers unique advantages that make it a preferred choice for engineers and manufacturers alike. This article explores the characteristics, manufacturing process, benefits, and applications of 0.7mm thick cold rolled polished Gr5 titanium sheets.
Grade 5 titanium is an alpha-beta titanium alloy composed of 90% titanium, 6% aluminum, and 4% vanadium. This specific composition endows it with remarkable mechanical properties, including high strength, excellent ductility, and good weldability. With a tensile strength reaching approximately 1200 MPa, Grade 5 titanium can perform exceptionally well under stress, making it suitable for demanding environments. Furthermore, its low density makes it an ideal material for applications where weight reduction is critical, such as in aerospace and automotive industries.
The microstructure of Grade 5 titanium contributes significantly to its performance. The alpha phase provides toughness, while the beta phase enhances strength. This combination allows the alloy to maintain its mechanical properties at elevated temperatures, thus ensuring reliability in various operational conditions. As a result, Grade 5 titanium is often used in components that require both high strength and lightweight characteristics, such as aircraft frames, engine components, and surgical instruments.
Cold rolling is a manufacturing process that involves reducing the thickness of metal sheets at room temperature, resulting in improved surface finish and mechanical properties. For titanium sheets, this process begins with hot rolled titanium, which is then subjected to a series of passes through rollers. The cold rolling technique not only reduces the thickness to the desired specification, in this case, 0.7mm, but also enhances the strength and hardness of the material.
During cold rolling, the deformation of the metal at lower temperatures leads to work hardening, which increases the yield strength and improves overall durability. Additionally, the process produces a smooth, polished surface that is aesthetically pleasing and functional. This polished finish is essential in applications where surface quality is paramount, such as in medical devices or high-end consumer products. The cold rolling process thus plays a critical role in achieving the desired properties of the final titanium sheets.
The polished surface of cold rolled Gr5 titanium sheets offers several advantages that enhance their usability across different applications. One of the primary benefits is improved corrosion resistance, which is paramount in environments exposed to moisture, chemicals, or saline conditions. The polishing process removes surface imperfections and contaminants, ensuring a uniform barrier against corrosive agents that could lead to degradation over time. This characteristic makes polished titanium particularly valuable in marine and chemical processing applications.
Another significant advantage of polished titanium sheets is their aesthetic appeal. The reflective surface adds a modern touch, making them suitable for architectural and design applications where visual impact is essential. In addition, the smooth finish minimizes friction, which is beneficial in components subject to wear and tear, such as bearings and sliding mechanisms. The combination of functional and aesthetic benefits positions polished titanium as a premium material choice across multiple industries.
The versatility of 0.7mm thick cold rolled polished Gr5 titanium sheets allows for a wide range of applications in diverse fields. In the aerospace industry, these sheets are utilized in the manufacturing of aircraft components, where weight savings and strength are crucial. Components such as brackets, frames, and panels benefit from the unique properties of Grade 5 titanium, ensuring safety and performance under extreme conditions.
In the medical field, the biocompatibility of Grade 5 titanium makes it an ideal choice for surgical implants and instruments. The polished surface not only enhances the aesthetic appeal but also reduces the risk of infection by providing a smoother finish that is easier to clean and sterilize. Surgeons and medical device manufacturers appreciate the reliability and long-lasting performance of titanium, leading to its widespread adoption in various medical applications.
Industrial applications also leverage the properties of polished titanium sheets. For instance, in chemical processing plants, these sheets are used to fabricate equipment that must withstand corrosive environments. Heat exchangers, valves, and piping systems made from Grade 5 titanium ensure longevity and efficiency, reducing the need for frequent replacements. Furthermore, the lightweight nature of titanium contributes to energy efficiency in transport and installation, making it a cost-effective choice in the long run.
The cold rolled polished Gr5 flat titanium metal sheet with a thickness of 0.7mm exemplifies the advanced capabilities of titanium alloys in modern manufacturing. With its outstanding mechanical properties, enhanced corrosion resistance, and aesthetic appeal, this material has found its place in various high-demand industries. The cold rolling process not only improves the strength and quality of the sheets but also ensures they meet the exacting standards required for critical applications. As industries continue to seek materials that offer both performance and sustainability, the use of polished Grade 5 titanium will likely expand, driving innovation and growth in multiple sectors.
We can supply a broad selection of titanium sheets and plates for fabrication and engineering applications. Sheets can be cut precisely according to your needs and are available in a variety of surface finishes. We adhere to the following production standards: ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860.
The titanium grades we offer include Gr1, Gr2, Gr10 or 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), and so on.

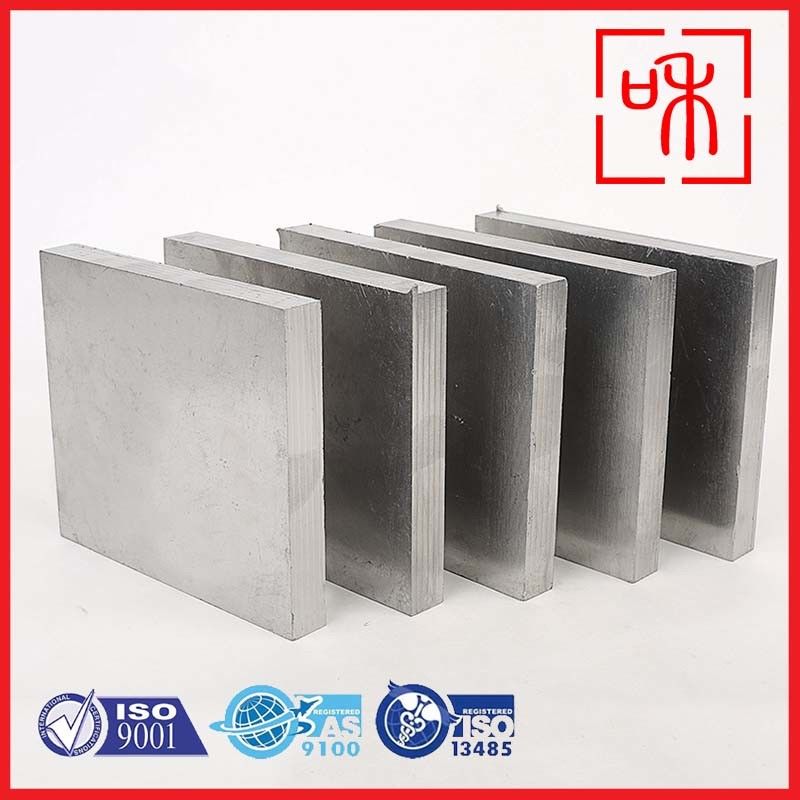

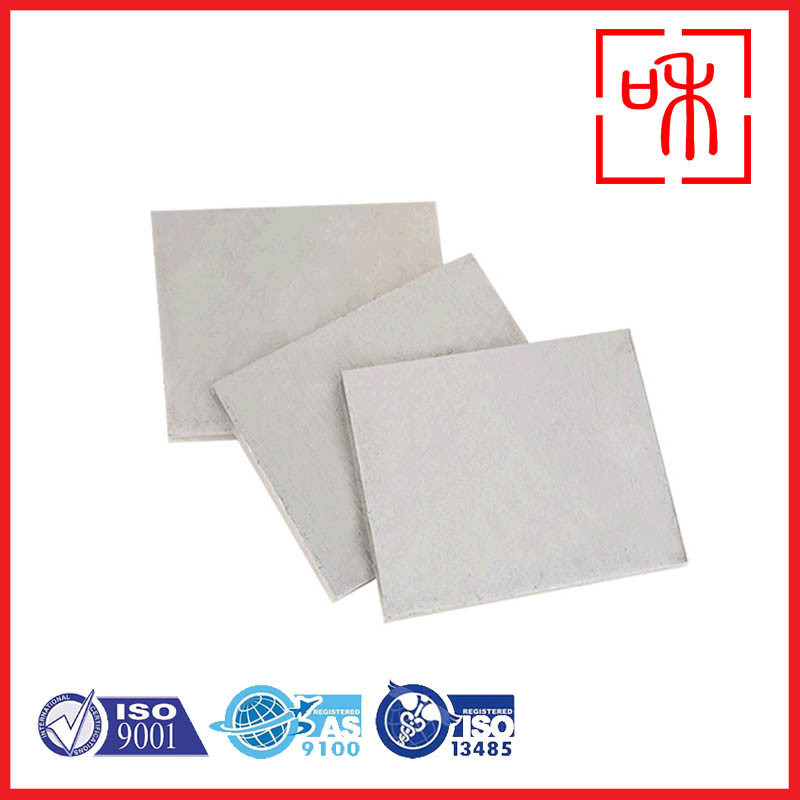

Titanium Sheet and Plate
We can supply a wide selection of titanium sheets and plates for fabrication and engineering projects. They can be precision-cut to your specifications and come with a selection of surface finishes.
Production Standards:
Sheets and plates follow ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, and DIN 17860 specifications.
Titanium Grades:
Grades available include Gr1, Gr2, Gr10 or 5 (6Al-4V), 7 (Ti-0.15Pd), 9 (3Al-2.5V), etc.
Titanium Sheet Surface Finishes:
Recommended finishes for titanium sheet include polished, mill, pickling, painted, brushed, or blasted.
| Apart from the products listed below, other available metal products are not listed here. Other metal products USTi can manufacture and supply include Tantalum, Niobium, Zirconium, Hafnium, Nickel, Copper etc., which are mainly in the form of Plate, Bar and Tube. | |||
| Products | Processing Standard | Grade | Size |
| Titanium Plate, Sheet, Coil | ASME SB265, AMS 4911, AMS 4919, AMS 4914 ASTM F67, ASTM F136 |
GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR12, GR16, GR17, GR23, Ti-6Al-4V ELI, Ti-6-2-4-2, Ti-15-3-3-3 |
Thickness: (0.0197”-6”) Max Width: 12 feet Max Length: 50 feet |
|
Titanium Foil |
ASME SB265 |
GR1, GR2, GR5
|
(0.001”-0.004”) x 4.8” x coil (0.004”-0.01”) x 18” x coil (0.012”-0.0158”) x 48” x coil |
Titanium Plates, produced by FHH from Xi'an, China, are available in a minimum order quantity of 200kgs and are packed for seaworth shipment materials for delivery within 5-8 days. Payment options such as L/C, D/P, T/T are accepted, and the supply ability is 1000pcs/month. The product has excellent corrosion resistance and meets standards such as ASTM B265, AMS 4920, ASME SB265, ASTM SB 265, DIN 17860, GB, JS. The technology used in its production is either cold rolling or hot rolling, and it offers high resistance to heat. Its surface can be polished, milled, pickled, painted, brushed, or blasted.
Titanium Plate provides technical support and service to its customers through a comprehensive range of support options.
Customers can access technical support and service by contacting Titanium Plate's customer service team directly. Our team is available to answer any questions or concerns, provide product and technical support, and provide helpful guidance. Our team can be contacted by phone, email, or live chat.
In addition, Titanium Plate provides customers with online access to product and user guides, tutorials, frequently asked questions, and access to our knowledge base. This helps customers quickly and easily find solutions to their questions or issues.
We also provide customers with access to our online forums. Here customers can discuss product features, ask questions, and offer feedback. Our forums are moderated by our team to ensure customers receive the support they need.
Packaging and Shipping for Titanium Plate:
Titanium plate will be packaged in shrink-wrapped pallets with cardboard separators to ensure the product is not damaged during shipping. The pallets will then be shrink-wrapped and secured with plastic straps to ensure the product is even more secure. The pallets will then be loaded onto a truck or freight train for shipping to the desired location.
