Place of Origin:
Xi'an,China
Brand Name:
FHH

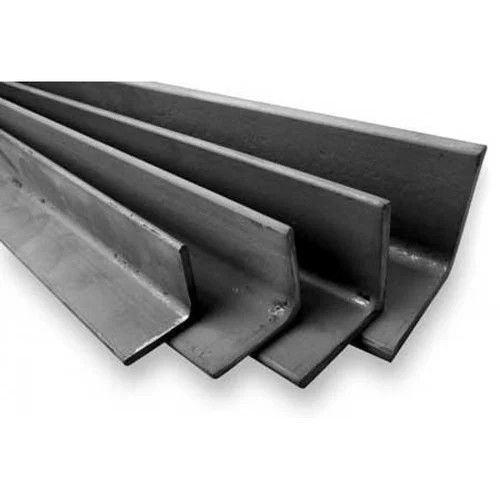

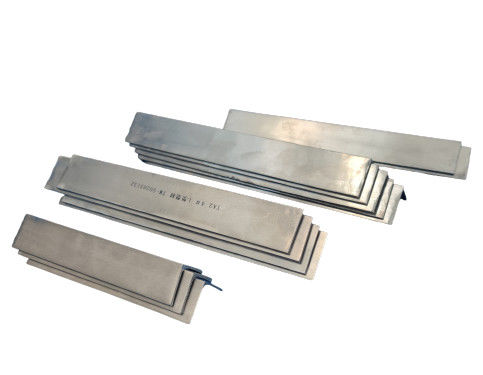

Silver Surface Treatment in High Corrosion Resistance Titanium Profiles
Titanium or titanium alloy angle has many excellent characteristics. Titanium alloy processing materials are mainly reflected in the following aspects:
High strength - Titanium alloy has a high strength, its tensile strength is 686-1176mpa, and the density is only about 60% of steel, so the specific strength is very high.
High hardness - The hardness HRC of titanium alloy (annealed) is 32-38.
Low elastic modulus - The elastic modulus of titanium alloy (annealed) is 1.078×10-1.176×10MPa, which is about half that of steel and stainless steel.
Excellent high and low temperature performance - At high temperature, titanium alloy can still maintain good mechanical properties, its heat resistance is much higher than aluminum alloy, and the operating temperature range is wide, the current new heat-resistant titanium alloy operating temperature can reach 550-600 ℃; At low temperature,the strength of titanium alloy is increased compared with that at room temperature, and it has good toughness, and low temperature titanium alloy can maintain good toughness at -253℃.
Titanium angle has strong corrosion resistance - Titanium in the air below 550 ° C, the surface will quickly form a thin and dense titanium oxide film, so in the atmosphere, seawater, nitric and sulfuric acid and other oxidizing media and strong alkali, its corrosion resistance is better than most stainless steel.
| No. | Products | Dimension(mm) | Length(mm) | About Kgs per piece | remark |
| 1 | 3# angle | 30X30X3 | L=6000 | 4.73 | Equal sides |
| 2 | 3# angle | 30X30X4 | L=6000 | 6.15 | Equal sides |
| 3 | 4# angle | 40X40X3 | L=6000 | 6.38 | Equal sides |
| 4 | 4# angle | 40X40X4 | L=6000 | 8.34 | Equal sides |
| 5 | 5# angle | 50X50X3 | L=6000 | 8.03 | Equal sides |
| 6 | 5# angle | 50X50X4 | L=6000 | 10.54 | Equal sides |
| 7 | 6.3# angle | 63X63X4 | L=6000 | 13.46 | Equal sides |
| 8 | 6.3# angle | 63X63X5 | L=6000 | 16.62 | Equal sides |
| 9 | 8# angle | 80X80X5 | L=6000 | 21.41 | Equal sides |
| 10 | 8# angle | 80X80X6 | L=6000 | 25.42 | Equal sides |
| materials | Gr1,Gr2,Gr3,Gr4,gr5......etc | ||||
| Standards: |
GB/T706-2016,GB/T37520-2019,GB/T41750-2022,N/HL 001-2021,N/HL 002-2021,ASTM F67,AMS4928,ASTM F136,ASTM B348,BT1-0,TP270,TP550,TP450 etc.
|
||||
Titanium and titanium alloys are known for their remarkable performance characteristics. Not only are they incredibly strong, with tensile strengths of 686-1176MPa, but they are also lightweight, with a density of about 60% of that of steel. Their high hardness scores of 32-38 HRC (annealed) make them suitable for a wide variety of applications, and are further assisted by their low elastic modulus, which is around half of that of steel and stainless steel. Furthermore, their exceptional high and low temperature performance make them ideal for a range of industrial uses. At high temperatures, titanium alloys can maintain satisfactory mechanical properties, and their heat resistance is far greater than that of aluminium alloys, with operating temperatures generally ranging from 550-600 ℃. At low temperatures, titanium alloys are even stronger and far more ductile than they are at room temperature, and their performance is not affected until temperatures reach -253℃. Titanium also offers outstanding corrosion resistance, and its titanium-oxide surface film protects it from oxidation and degradation in the atmosphere, seawater, nitric or sulfuric acid, and other oxidizing media and strong alkalis.
| Property | Value |
|---|---|
| Name | Titanium Angle |
| Color | Silver |
| Width | 3mm - 10mm |
| Shape | L Shape |
| Length | 6000mm - 12000mm |
| Material | Gr1, Gr2, Gr3, Gr4, Gr5 |
| Technique | Cold Bend |
| Corrosion Resistance | High |
| Standards | ASTM F67, AMS4928, ASTM F136, ASTM B348,BT1-0, TP270, TP550, TP450 Etc. |
FHH is a leading titanium profile manufacturer based in Xi'an, China. We specialize in the production of high-quality titanium angle which is widely used in the manufacturing and construction industries. Our titanium angle is made of superior grade cold-bent titanium, with a silver color and an L-shape. It can be ordered in any length from 6000mm to 12mmm, and the minimum order quantity is 200kgs. All goods are securely packed in seaworth shipment materials for timely delivery. We can fulfill orders of up to 150mt per month and payment terms are available in L/C, D/P, T/T. Quality assurance and customer satisfaction are our top priorities.
