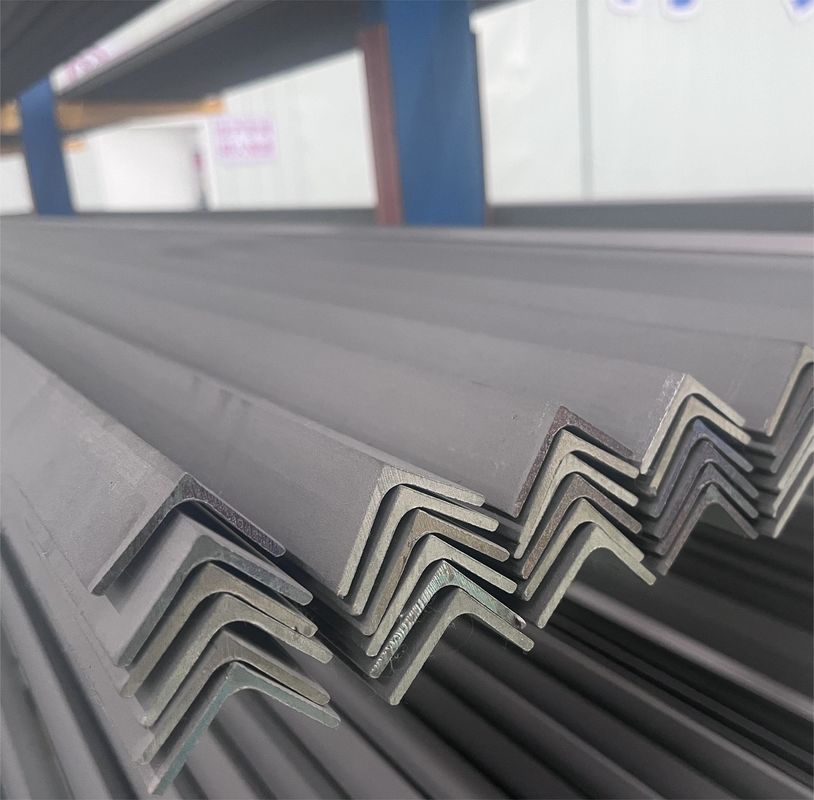

12mm Titanium Angle L Shape Cold Bend Technique 6000mm Length
Titanium or titanium alloy angle have many excellent characteristics. Titanium alloy processing materials are mainly reflected in the following aspects:
High strength. Titanium alloy possess a high strength, with its tensile strength ranging from 686-1176mpa. The density of titanium alloy is only about 60% of that of steel, thus giving it a high specific strength.
High hardness. The hardness HRC of titanium alloy (annealed) is 32-38.
Low elastic modulus. The elastic modulus of titanium alloy (annealed) is 1.078×10-1.176×10MPa, about half that of steel and stainless steel.
Excellent high and low temperature performance. When working in high temperature, titanium alloy can maintain good mechanical properties while its heat resistance is much higher than that of aluminum alloy. The operating temperature range of new heat-resistant titanium alloys is 550 - 600℃. At low temperatures, the strength of titanium alloy increases compared to that at room temperature and the alloy maintains good toughness at -253℃.
Strong corrosion resistance. Titanium subjects to atmospheric temperatures below 550°C, forming a thin and dense titanium oxide film. As such, it is highly resistant to atmospheric, seawater, nitric and sulfuric acid as well as strong alkali, which is more resilient than most stainless steel.
| No. | Products | Dimension(mm) | Length(mm) | About Kgs per piece | remark |
| 1 | 3# angle | 30X30X3 | L=6000 | 4.73 | Equal sides |
| 2 | 3# angle | 30X30X4 | L=6000 | 6.15 | Equal sides |
| 3 | 4# angle | 40X40X3 | L=6000 | 6.38 | Equal sides |
| 4 | 4# angle | 40X40X4 | L=6000 | 8.34 | Equal sides |
| 5 | 5# angle | 50X50X3 | L=6000 | 8.03 | Equal sides |
| 6 | 5# angle | 50X50X4 | L=6000 | 10.54 | Equal sides |
| 7 | 6.3# angle | 63X63X4 | L=6000 | 13.46 | Equal sides |
| 8 | 6.3# angle | 63X63X5 | L=6000 | 16.62 | Equal sides |
| 9 | 8# angle | 80X80X5 | L=6000 | 21.41 | Equal sides |
| 10 | 8# angle | 80X80X6 | L=6000 | 25.42 | Equal sides |
| materials | Gr1,Gr2,Gr3,Gr4,gr5......etc | ||||
| Standards: |
GB/T706-2016,GB/T37520-2019,GB/T41750-2022,N/HL 001-2021,N/HL 002-2021,ASTM F67,AMS4928,ASTM F136,ASTM B348,BT1-0,TP270,TP550,TP450 etc.
|
||||
Titanium or titanium alloy angle have many excellent characteristics. These characteristics are mainly reflected in the following aspects:
1. High Strength. Titanium alloy has a high strength, with its tensile strength between 686-1176mpa. Moreover, its density is only about 60% of steel. Thus, its specific strength is very high.
2. High Hardness. The hardness of annealed titanium alloy is 32-38, measured according to the HRC scale.
3. Low Elastic Modulus. The elastic modulus of annealed titanium alloy is 1.078×10-1.176×10MPa, approximately half that of steel and stainless steel.
4. Outstanding High and Low Temperature Performance. At high temperatures, titanium alloy is still able to retain its mechanical properties, and its heat resistance is much higher than that of aluminum alloy. The operating temperature range is also quite wide — the current best heat-resistant titanium alloy can withstand temperatures up to 550-600℃. At low temperature, titanium alloy strength is augmented in comparison to room temperature, and it has excellent toughness. Low temperatur titanium alloy even remain good toughness at -253℃.
5. Titanium angles possess remarkable corrosion resistance. When exposed to temperatures below 550°C, titanium's surface rapidly develops a thin and dense layer of titanium oxide film, making it highly resistant in oxidizing media, such as the atmosphere, seawater, nitric and sulfuric acid, and strong alkalis. Its corrosion resistance is far superior to most stainless steels.
| Paramters | Details |
|---|---|
| Name | Titanium Angle |
| Material | Gr1,Gr2,Gr3,Gr4,Gr5 |
| Shape | L Shape |
| Length | 6000mm----12000mm |
| Thickness | 3mm---10mm |
| Color | Silver |
| Corrosion Resistance | High |
| Technique | Cold Bend |
| Standards | ASTM F67, AMS4928, ASTM F136, ASTM B348,BT1-0, TP270, TP550, TP450 Etc. |
Titanium Angle is a type of titanium profile with high corrosion resistance, strength and light weight. It is widely used in many industrial applications due to its excellent properties. FHH is the brand leading the industry in producing high quality titanium angle profiles, made from Gr1, Gr2, Gr3, Gr4, Gr5 material and complying with ASTM F67, AMS4928, ASTM F136, ASTM B348,BT1-0, TP270, TP550, TP450 Etc. standards. The length of our titanium angle profiles range from 6000mm to 12000mm, and they come in various shapes, such as L Shape.
FHH is based in Xi'an, China, and all goods are packed by seaworth shipment materials. The minimum order quantity is 200kgs, and the delivery time is 5-8 days. Payment terms include L/C, D/P, T/T, and our supply ability is 100mt per month. With its superior features, Titanium Angle from FHH is perfect for aerospace, automotive, medical, nuclear, and other industrial applications.
At Titanium Angle, we are committed to providing the best technical support and services for our customers. We offer a variety of services to help you get the most out of your Titanium Angle product. These services include:
We are dedicated to providing the best customer service and support experience for our customers. If you have any questions or concerns, please do not hesitate to contact us.
