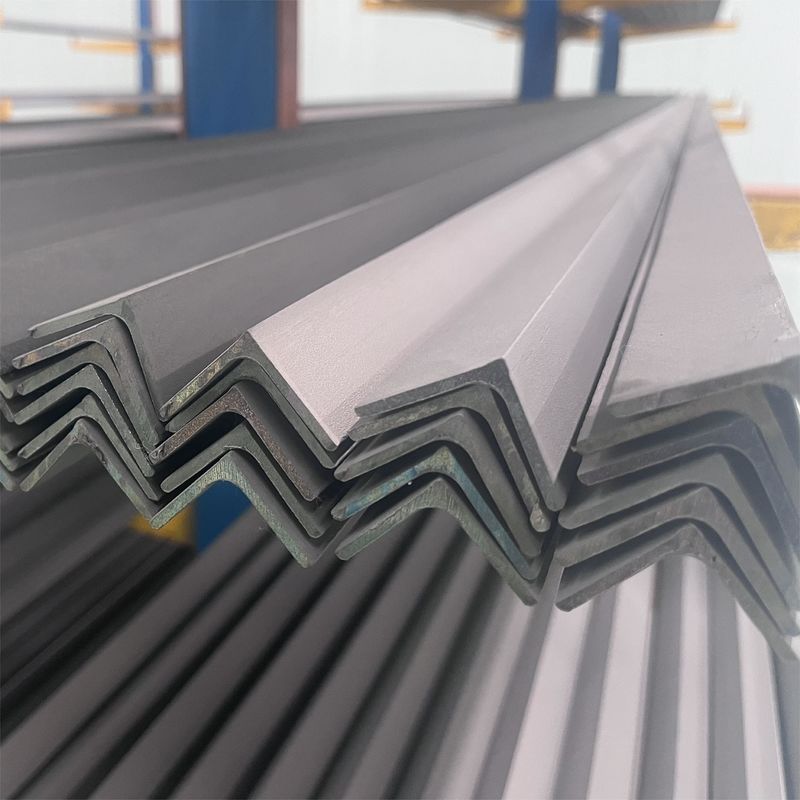

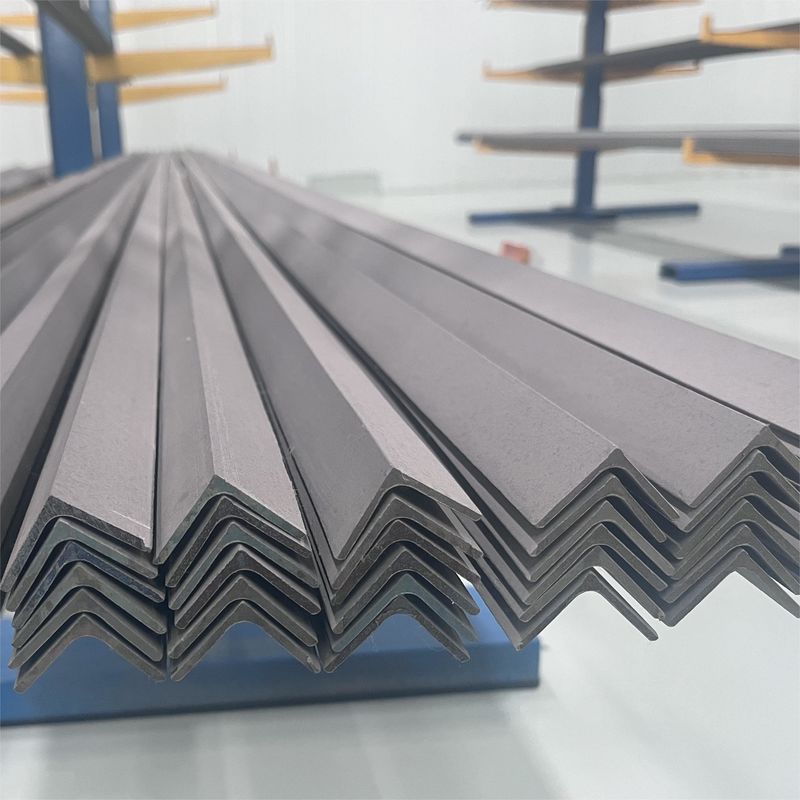

Titanium angle,Titanium L type,Titanium profiles,Angle
Titanium or titanium alloy angle have many excellent characteristics, titanium alloy processing materials are mainly reflected in the following aspects:
1. High strength. Titanium alloy has a high strength, its tensile strength is 686-1176mpa, and the density is only about 60% of steel, so the specific strength is very high.
2. High hardness. The hardness HRC of titanium alloy (annealed) is 32-38.
3. Low elastic modulus. The elastic modulus of titanium alloy (annealed) is 1.078×10-1.176×10MPa, which is about half that of steel and stainless steel.
4. Excellent high and low temperature performance. At high temperature, titanium alloy can still maintain good mechanical properties, its heat resistance is much higher than aluminum alloy, and the operating temperature range is wide, the current new heat-resistant titanium alloy operating temperature can reach 550-600 ℃; At low temperature, the strength of titanium alloy is increased compared with that at room temperature, and it has good toughness, and low temperature titanium alloy can maintain good toughness at -253℃.
5. Titanium angle has strong corrosion resistance. Titanium in the air below 550 ° C, the surface will quickly form a thin and dense titanium oxide film, so in the atmosphere, seawater, nitric and sulfuric acid and other oxidizing media and strong alkali, its corrosion resistance is better than most stainless steel.
| No. | Products | Dimension(mm) | Length(mm) | About Kgs per piece | remark |
| 1 | 3# angle | 30X30X3 | L=6000 | 4.73 | Equal sides |
| 2 | 3# angle | 30X30X4 | L=6000 | 6.15 | Equal sides |
| 3 | 4# angle | 40X40X3 | L=6000 | 6.38 | Equal sides |
| 4 | 4# angle | 40X40X4 | L=6000 | 8.34 | Equal sides |
| 5 | 5# angle | 50X50X3 | L=6000 | 8.03 | Equal sides |
| 6 | 5# angle | 50X50X4 | L=6000 | 10.54 | Equal sides |
| 7 | 6.3# angle | 63X63X4 | L=6000 | 13.46 | Equal sides |
| 8 | 6.3# angle | 63X63X5 | L=6000 | 16.62 | Equal sides |
| 9 | 8# angle | 80X80X5 | L=6000 | 21.41 | Equal sides |
| 10 | 8# angle | 80X80X6 | L=6000 | 25.42 | Equal sides |
| materials | Gr1,Gr2,Gr3,Gr4,gr5......etc | ||||
| Standards: |
GB/T706-2016,GB/T37520-2019,GB/T41750-2022,N/HL 001-2021,N/HL 002-2021,ASTM F67,AMS4928,ASTM F136,ASTM B348,BT1-0,TP270,TP550,TP450 etc.
|
||||
